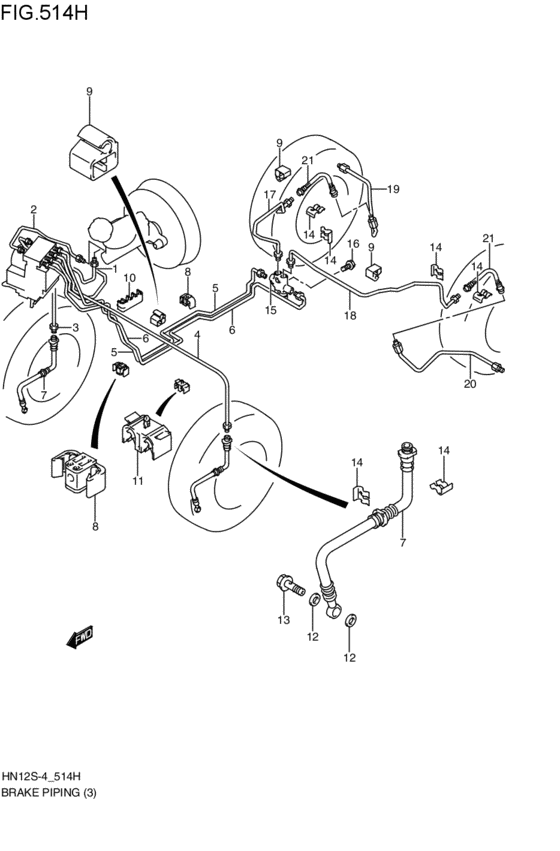

brakes piping (スポーツVST&ABSシヨウ; S:VST:ABS; 2001-03-01~2001-12-01) Diagram Suzuki KEI/SWIFT
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- air bag
- AB
- abs
- ABS
- vst
- VST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51415-74G50-000
パイプ,ジョイントツーユニット
S:VST:ABS; 2001-03-01~2001-12-01 |
51415-74G50-000 |
— | ||
|
2
|
2
51420-74G50-000
パイプ,マスタセカンダリツーユニット
S:VST:ABS; 2001-03-01~2001-12-01 |
51420-74G50-000 |
— | ||
|
3
|
3
51430-74G50-000
パイプ,ユニットツーフロントブレーキホース,ライト
S:VST:ABS; 2001-03-01~2001-12-01 |
51430-74G50-000 |
— | ||
|
4
|
4
51440-74G50-000
パイプ,ユニットツーフロントブレーキホース,レフト
S:VST:ABS; 2001-03-01~2001-12-01 |
51440-74G50-000 |
— | ||
|
5
|
5
51450-74G50-000
パイプ,ユニットツーバルブ,ライト
S:VST:ABS; 2001-03-01~2001-12-01 |
51450-74G50-000 |
— | ||
|
6
|
6
51460-74G50-000
パイプ,ユニットツーバルブ,レフト
S:VST:ABS; 2001-03-01~2001-12-01 |
51460-74G50-000 |
— | ||
|
7
|
7
51550-76G00-000 HOSE,FR DISC FLEXIBLES:VST:ABS; 2001-03-01~2001-12-01 |
51550-76G00-000 |
US $48.21 |
||
|
8
|
8
51751-76G00-000 CLAMP,BK PIPE DASHS:VST:ABS; 2001-03-01~2001-12-01 |
51751-76G00-000 |
US $1.60 |
||
|
9
|
9
51752-70B00-000 CLAMP,BK PIPES:VST:ABS; 2001-03-01~2001-12-01 |
51752-70B00-000 |
US $1.60 |
||
|
10
|
10
51753-74G50-000
クランプ,ブレーキパイプ
S:VST:ABS; 2001-03-01~2001-12-01 |
51753-74G50-000 |
— | ||
| replacement | |||||
|
10
|
10
51753-74G60-000 CLAMP,BK PIPE UNITS:VST:ABS; 2001-03-01~2001-12-01 |
51753-74G60-000 |
US $2.61 |
||
|
11
|
11
51761-76G00-000 CLAMP,BK PIPE DASH LWRS:VST:ABS; 2001-03-01~2001-12-01 |
51761-76G00-000 |
US $1.60 |
||
|
12
|
12
09161-10009-000 WASHER(10X15X1.5)Lock washer S:VST:ABS; 2001-03-01~2001-12-01 |
09161-10009-000 |
from US $1.06 |
||
|
13
|
13
09360-10026-000 Union boltS:VST:ABS; 2001-03-01~2001-12-01 |
09360-10026-000 |
US $2.08 |
||
|
14
|
14
09383-13001-000 E RINGS:VST:ABS; 2001-03-01~2001-12-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09383-13003-000 E-RINGS:VST:ABS; 2001-03-01~2001-12-01 |
09383-13003-000 |
from US $1.60 |
||
|
15
|
15
51910-76G00-000 VALVE ASSY,PROPORTIONINGS:VST:ABS; 2001-03-01~2001-12-01 |
51910-76G00-000 |
US $109.30 |
||
|
16
|
16
01550-06403-000
Bolt (green)
S:VST:ABS; 2001-03-01~2001-12-01 |
01550-06403-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0640B-000 BoltS:VST:ABS; 2001-03-01~2001-12-01 |
01550-0640B-000 |
from US $0.96 |
||
|
16
|
16
01550-0640A-000 BoltBolt (l:40) S:VST:ABS; 2001-03-01~2001-12-01 |
01550-0640A-000 |
from US $3.83 |
||
|
17
|
17
51470-76G00-000 PIPE,VALVE TO RR BK HOSE RS:VST:ABS; 2001-03-01~2001-12-01 |
51470-76G00-000 |
US $12 |
||
|
18
|
18
51480-76G00-000 PIPE,VALVE TO RR BK HOSE LS:VST:ABS; 2001-03-01~2001-12-01 |
51480-76G00-000 |
US $16.67 |
||
|
19
|
19
51510-76G00-000
Pipe, rr bk hose to cyl rh
S:VST:ABS; 2001-03-01~2001-12-01 |
51510-76G00-000 |
— | ||
| replacement | |||||
|
19
|
19
51510-76G10-000 PIPE,RR BK HOSE TO WHL CYL RS:VST:ABS; 2001-03-01~2001-12-01 |
51510-76G10-000 |
from US $9.90 |
||
|
20
|
20
51520-76G00-000
Pipe, rr bk hose to cyl lh
S:VST:ABS; 2001-03-01~2001-12-01 |
51520-76G00-000 |
— | ||
| replacement | |||||
|
20
|
20
51520-76G10-000 PIPE,RR BK HOSE TO WHL CYL LS:VST:ABS; 2001-03-01~2001-12-01 |
51520-76G10-000 |
from US $9.90 |
||
|
21
|
21
51570-76G00-000 HOSE,RR BRAKE FLEXIBLES:VST:ABS; 2001-03-01~2001-12-01 |
51570-76G00-000 |
US $23.18 |
||
