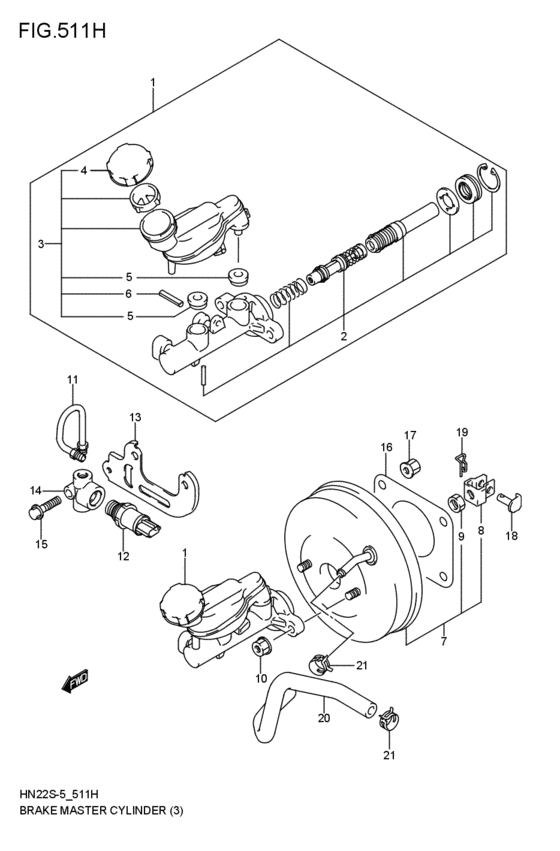

brakes master cylinder (VSTシヨウ,ABSシヨウ; TURBO:S:VST:ABS; 2001-11-01~2002-12-01) Diagram Suzuki KEI/SWIFT
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- vst
- VST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-74G50-000
シリンダアッシ,ブレーキマスタ
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51100-74G50-000 |
— | ||
|
2
|
2
51810-74G50-000
ピストンセット,ブレーキマスタ
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51810-74G50-000 |
— | ||
|
3
|
3
51200-76F10-000 RESERVOIR ASSY,BRAKE MASTERTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51200-76F10-000 |
US $89.06 |
||
|
4
|
4
51220-75F51-000
Cap,reservoir
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51220-75F51-000 |
— | ||
| replacement | |||||
|
4
|
4
51220-77M00-000 CAP,RESERVOIRTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51220-77M00-000 |
US $20 |
||
|
5
|
5
51232-70F00-000 GROMMET,RSVR CONNECTORTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51232-70F00-000 |
US $6.15 |
||
|
6
|
6
51240-75F50-000 PINTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51240-75F50-000 |
US $4.38 |
||
|
7
|
7
51300-76F80-000 BOOSTER ASSY,BRAKE MASTERTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51300-76F80-000 |
US $732.16 |
||
|
8
|
8
51182-60D10-000 CLEVIS,CYLINDER PUSH RODTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51182-60D10-000 |
US $14.32 |
||
|
9
|
9
08316-10103-000
Nut
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
09159-08075-000 NUTTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09159-08075-000 |
US $0.91 |
||
|
11
|
11
51410-74G50-000
パイプ,マスタプライマリツージョイント
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51410-74G50-000 |
— | ||
|
12
|
12
56510-74G50-000
センサ,ブレーキプレッシャ
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
56510-74G50-000 |
— | ||
|
13
|
13
56511-74G50-000
ブラケット,プレッシャセンサ
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
56511-74G50-000 |
— | ||
|
14
|
14
56521-74G50-000
ジョイント,ブレーキプレッシャセンサ
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
56521-74G50-000 |
— | ||
|
15
|
15
01550-08403-000
Bolt
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0840B-000 BoltTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
01550-0840B-000 |
from US $1.12 |
||
|
15
|
15
01550-0840A-000 BOLTTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
01550-0840A-000 |
from US $1.12 |
||
|
16
|
16
51132-82003-000 PACKING,BRAKE MASTER CYLINDERTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51132-82003-000 |
US $1.60 |
||
|
17
|
17
09159-08069-000
Nut
TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-08135-000 NUTTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09159-08135-000 |
from US $0.81 |
||
|
18
|
18
09200-08069-000 PINTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09200-08069-000 |
US $21.70 |
||
|
19
|
19
09385-08007-000 PIN,SNAPClip TURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09385-08007-000 |
from US $1.09 |
||
|
20
|
20
51010-76F10-000 HOSE,BRAKE VACUUMTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
51010-76F10-000 |
US $42.69 |
||
|
21
|
21
09401-15404-000 CLIPTURBO:S:VST:ABS; 2001-11-01~2002-12-01 |
09401-15404-000 |
from US $1.04 |
||
