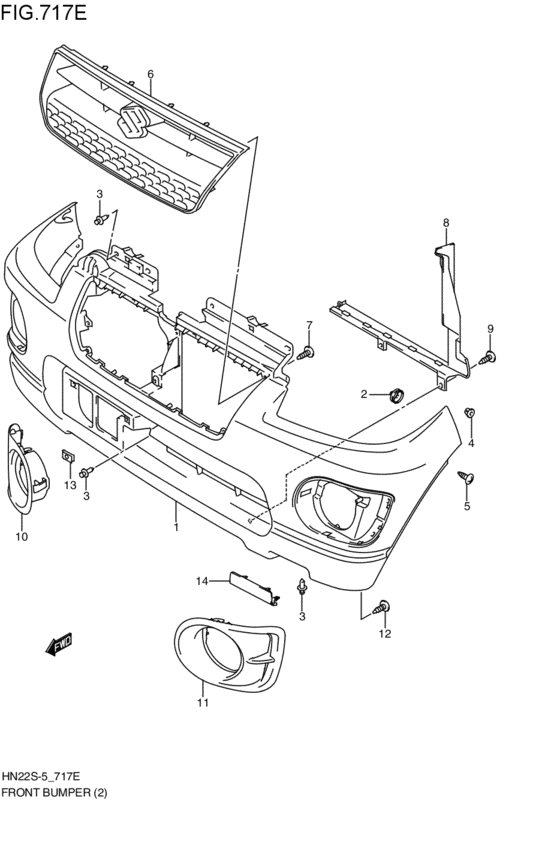

front bumper (S; 2001-11-01~2002-12-01) Diagram Suzuki KEI/SWIFT
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- vst
- VST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-82G20-Z7T
バンパ,フロント(ホワイト)
ホワイト; S; 2001-11-01~2002-12-01 |
71711-82G20-Z7T |
— | ||
|
1
|
1
71711-82G20-799 BUMPER,FR(PRIMARY)プライマリ-; S; 2001-11-01~2002-12-01 |
71711-82G20-799 |
US $499.84 |
||
|
2
|
2
71712-82G00-000 CLIP,BUMPER SIDE UPPERS; 2001-11-01~2002-12-01 |
71712-82G00-000 |
US $1.60 |
||
|
3
|
3
09409-08327-000 CLIPS; 2001-11-01~2002-12-01 |
09409-08327-000 |
from US $1.17 |
||
|
4
|
4
09148-06007-000 NUTS; 2001-11-01~2002-12-01 |
09148-06007-000 |
from US $0.88 |
||
|
5
|
5
03242-06163-000
Screw
S; 2001-11-01~2002-12-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0616C-000 SCREWS; 2001-11-01~2002-12-01 |
03241-0616C-000 |
from US $0.76 |
||
|
6
|
6
71741-82G10-38B
GRILLE,FR BUMPER
グレ-; S; 2001-11-01~2002-12-01 |
71741-82G10-38B |
— | ||
| replacement | |||||
|
6
|
6
71741-82G10-000 Grille,fr Bumper(Non Paint)グレ-; S; 2001-11-01~2002-12-01 |
71741-82G10-000 |
US $46.37 |
||
|
7
|
7
03541-04123-000
Screw
S; 2001-11-01~2002-12-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
7
|
7
03541-0412B-000 SCREWScrew, plate S; 2001-11-01~2002-12-01 |
03541-0412B-000 |
from US $0.80 |
||
|
7
|
7
03541-0412A-000 SCREWScrew, speedometer S; 2001-11-01~2002-12-01 |
03541-0412A-000 |
from US $0.80 |
||
|
8
|
8
71781-82G00-000 EXTENSION,FR BUMPER LWRS; 2001-11-01~2002-12-01 |
71781-82G00-000 |
US $26.86 |
||
|
9
|
9
03541-05123-000
Screw
S; 2001-11-01~2002-12-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0512B-000 SCREWS; 2001-11-01~2002-12-01 |
03541-0512B-000 |
from US $0.76 |
||
|
10
|
10
71751-82G10-ZE9
BEZEL,FR FOG LAMP,R
ブル-; S; 2001-11-01~2002-12-01 |
71751-82G10-ZE9 |
— | ||
| replacement | |||||
|
10
|
10
71751-82G10-799 BEZEL,FR FOG LAMP,Rブル-; S; 2001-11-01~2002-12-01 |
71751-82G10-799 |
US $35.70 |
||
|
10
|
10
71751-82G10-ZJ3 BEZEL,FR FOG LAMP,Rブラック; S; 2001-11-01~2002-12-01 |
71751-82G10-ZJ3 |
US $46.74 |
||
|
10
|
10
71751-82G10-Z2S BEZEL,FR FOG LAMP,Rシルバ-; S; 2001-11-01~2002-12-01 |
71751-82G10-Z2S |
US $57.04 |
||
|
10
|
10
71751-82G10-Z7T BEZEL,FR FOG LAMP,Rホワイト; S; 2001-11-01~2002-12-01 |
71751-82G10-Z7T |
US $56.30 |
||
|
11
|
11
71761-82G10-ZE9
BEZEL,FR FOG LAMP,L
ブル-; S; 2001-11-01~2002-12-01 |
71761-82G10-ZE9 |
— | ||
| replacement | |||||
|
11
|
11
71761-82G10-799 BEZEL,FR FOG LAMP,Lブル-; S; 2001-11-01~2002-12-01 |
71761-82G10-799 |
US $35.70 |
||
|
11
|
11
71761-82G10-ZJ3 BEZEL,FR FOG LAMP,Lブラック; S; 2001-11-01~2002-12-01 |
71761-82G10-ZJ3 |
US $56.30 |
||
|
11
|
11
71761-82G10-Z2S BEZEL,FR FOG LAMP,Lシルバ-; S; 2001-11-01~2002-12-01 |
71761-82G10-Z2S |
US $57.04 |
||
|
11
|
11
71761-82G10-Z7T BEZEL,FR FOG LAMP,Lホワイト; S; 2001-11-01~2002-12-01 |
71761-82G10-Z7T |
US $56.30 |
||
|
12
|
12
03541-04123-000
Screw
S; 2001-11-01~2002-12-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
12
|
12
03541-0412B-000 SCREWScrew, plate S; 2001-11-01~2002-12-01 |
03541-0412B-000 |
from US $0.80 |
||
|
12
|
12
03541-0412A-000 SCREWScrew, speedometer S; 2001-11-01~2002-12-01 |
03541-0412A-000 |
from US $0.80 |
||
|
13
|
13
71812-82010-000
Nut
S; 2001-11-01~2002-12-01 |
71812-82010-000 |
— | ||
| replacement | |||||
|
13
|
13
09148-06021-000 NUTNut, air cleaner S; 2001-11-01~2002-12-01 |
09148-06021-000 |
from US $1.31 |
||
|
14
|
14
71713-82G00-ZE9
COVER,FR BUMPER LWR
ブル-; S; 2001-11-01~2002-12-01 |
71713-82G00-ZE9 |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRブル-; S; 2001-11-01~2002-12-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-ZJ3 COVER,FR BUMPER LWRブラック; S; 2001-11-01~2002-12-01 |
71713-82G00-ZJ3 |
US $46.37 |
||
|
14
|
14
71713-82G00-Z2S
COVER,FR BUMPER LWR
シルバ-; S; 2001-11-01~2002-12-01 |
71713-82G00-Z2S |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRシルバ-; S; 2001-11-01~2002-12-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-Z7T COVER,FR BUMPER LWRホワイト; S; 2001-11-01~2002-12-01 |
71713-82G00-Z7T |
US $46.37 |
||
