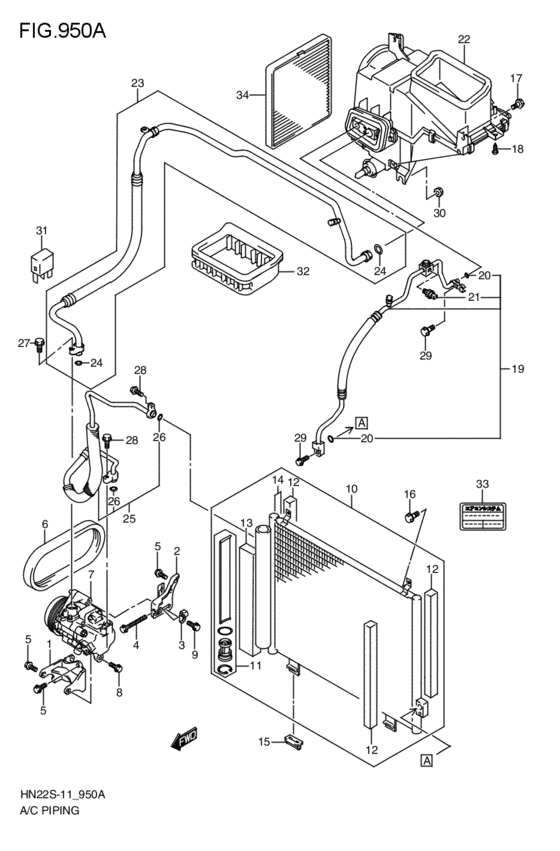

air-conditioner piping (2008-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- BW
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95111-58J00-000
ブラケット,コンプレッサ
2008-04-01~ |
95111-58J00-000 |
— | ||
|
2
|
2
95120-58J00-000
ステー,コンプレッサアジャスト
2008-04-01~ |
95120-58J00-000 |
— | ||
| replacement | |||||
|
2
|
2
95120-58J01-000
ステー,コンプレッサアジャスト
2008-04-01~ |
95120-58J01-000 |
— | ||
|
3
|
3
95125-58J00-000 TENSIONER,CPRSR2008-04-01~ |
95125-58J00-000 |
US $16.80 |
||
|
4
|
4
95126-58J00-000 BOLT2008-04-01~ |
95126-58J00-000 |
US $1.60 |
||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket 2008-04-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
6
|
6
49181-70A12-000
Belt(4pk710)
2008-04-01~ |
49181-70A12-000 |
— | ||
| replacement | |||||
|
6
|
6
49181-70A13-000 V-BELT,4PK 7102008-04-01~ |
49181-70A13-000 |
from US $24.41 |
||
|
7
|
7
95200-58J40-000
コンプレッサアッシ
カルソニック; 2008-04-01~ |
95200-58J40-000 |
— | ||
| replacement | |||||
|
7
|
7
95200-58J43-000 COMPRESSOR ASSYカルソニック; 2008-04-01~ |
95200-58J43-000 |
US $1,084.16 |
||
|
7
|
7
95200-76G30-000
コンプレッサアッシ
DENSO; 2008-04-01~ |
95200-76G30-000 |
— | ||
| replacement | |||||
|
7
|
7
95200-76G41-000
Discontinue
DENSO; 2008-04-01~ |
95200-76G41-000 |
— | ||
|
8
|
8
01550-0820A-000 BOLTBolt, funnel bracket 2008-04-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
9
|
9
01550-0825A-000 BOLT2008-04-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
95310-75H21-000 CONDENSER ASSY2008-04-01~ |
95310-75H21-000 |
US $393.76 |
||
|
11
|
11
95339-58J10-000 DRYER KIT2008-04-01~ |
95339-58J10-000 |
from US $45.25 |
||
|
12
|
12
95815-50E10-000 PACKING,CONDENSER2008-04-01~ |
95815-50E10-000 |
US $4.60 |
||
|
13
|
13
95815-75H20-000
パッキング
2008-04-01~ |
95815-75H20-000 |
— | ||
|
14
|
14
95341-76G00-000 SEAL,CONDENSER PACKING2008-04-01~ |
95341-76G00-000 |
US $6.44 |
||
|
15
|
15
95851-75F00-000 BUSH,COND2008-04-01~ |
95851-75F00-000 |
US $1.67 |
||
|
16
|
16
02162-0616B-000 SCREWBolt, adjust 2008-04-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
17
|
17
09113-06006-000 BOLT(6X20)2008-04-01~ |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
17
|
17
09113-06014-000 BOLT(6X20)2008-04-01~ |
09113-06014-000 |
US $14.40 |
||
|
18
|
18
03541-0516A-000 SCREW2008-04-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
19
|
19
95730-75H00-000
ホース,レシーバアウトレット
2008-04-01~ |
95730-75H00-000 |
— | ||
| replacement | |||||
|
19
|
19
95730-75H01-000
New Genuine Part
2008-04-01~ |
95730-75H01-000 |
— | ||
|
20
|
20
95891-50G00-000 O-RING,D:1.8 ID:6.72008-04-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
21
|
21
95526-50G10-000
Switch, dual pressure
2008-04-01~ |
95526-50G10-000 |
— | ||
| replacement | |||||
|
21
|
21
95526-50G30-000 SWITCH,DUAL PRESSURE2008-04-01~ |
95526-50G30-000 |
from US $44.84 |
||
|
22
|
22
95400-75H00-000
Cooling unit
2008-04-01~ |
95400-75H00-000 |
— | ||
| replacement | |||||
|
22
|
22
95400-75H01-000 COOLING UNIT2008-04-01~ |
95400-75H01-000 |
US $616 |
||
|
23
|
23
95710-74G04-000
ホース,サクション
2008-04-01~ |
95710-74G04-000 |
— | ||
| replacement | |||||
|
23
|
23
95710-74G06-000 HOSE,SUCTION2008-04-01~ |
95710-74G06-000 |
US $140.21 |
||
|
24
|
24
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2008-04-01~ |
95896-50G00-000 |
from US $1.28 |
||
|
25
|
25
95720-75H21-000
ホース,ディスチャージ
2008-04-01~ |
95720-75H21-000 |
— | ||
| replacement | |||||
|
25
|
25
95720-75H22-000
New Genuine Part
2008-04-01~ |
95720-75H22-000 |
— | ||
|
26
|
26
95895-50G00-000 O-RING,D:2.4 ID:10.82008-04-01~ |
95895-50G00-000 |
from US $1.28 |
||
|
27
|
27
01550-0620A-000 BOLT2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
28
|
28
01550-0620A-000 BOLT2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
29
|
29
01550-0620A-000 BOLT2008-04-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
30
|
30
09159-06081-000 NUT2008-04-01~ |
09159-06081-000 |
from US $1.19 |
||
|
31
|
31
38860-76F01-000 RELAY ASSYRelay, starting motor 2008-04-01~ |
38860-76F01-000 |
from US $23.92 |
||
|
32
|
32
74213-74G00-000 JOINT,AIR INLET2008-04-01~ |
74213-74G00-000 |
US $24.10 |
||
|
33
|
33
95956-84GJ0-000
ラベル,レフリジェラント
2008-04-01~ |
95956-84GJ0-000 |
— | ||
| replacement | |||||
|
33
|
33
95956-84GJ1-000
Discontinue
2008-04-01~ |
95956-84GJ1-000 |
— | ||
|
34
|
34
95860-81A10-000 FILTER2008-04-01~ |
95860-81A10-000 |
from US $31.92 |
||
