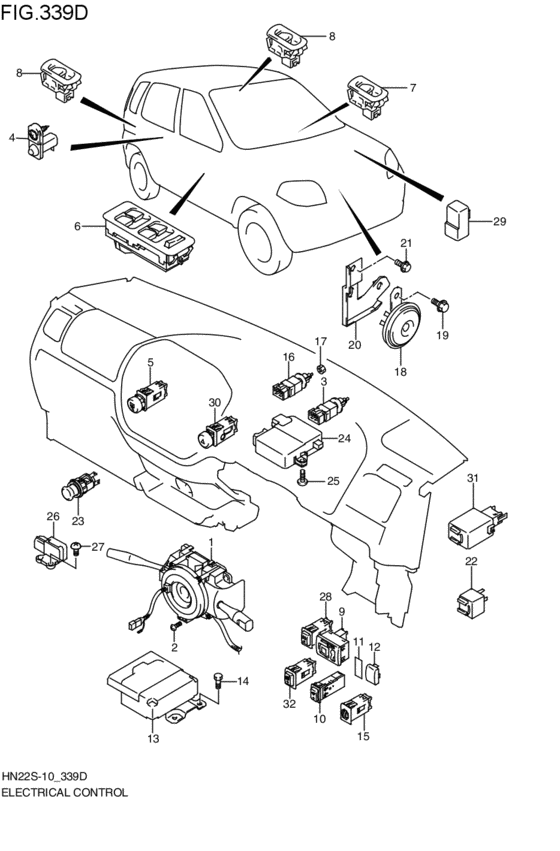

electrical control (2007-05-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- BW
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-80GB1-000 SWITCH ASSY,COMBBB,BW; 2007-05-01~ |
37400-80GB1-000 |
US $461.12 |
||
|
2
|
2
02112-0512A-000 SCREW2007-05-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-75H10-000
SWITCH ASSY,STOP LAMP
2007-05-01~ |
37740-75H10-000 |
— | ||
| replacements | |||||
|
3
|
3
37741-75H10-000 Switch Assy,stop Lamp2007-05-01~ |
37741-75H10-000 |
from US $14.15 |
||
|
3
|
3
37742-75H10-000 Bush,stop Lamp Sw2007-05-01~ |
37742-75H10-000 |
from US $3.80 |
||
|
4
|
4
37670-58J10-000 SWITCH ASSY,DOOR2007-05-01~ |
37670-58J10-000 |
from US $10.01 |
||
|
5
|
5
37860-74G10-000 SWITCH ASSY,RR DF&MIR HTR4WD:BW; 2007-05-01~ |
37860-74G10-000 |
US $50.05 |
||
|
6
|
6
37990-82G30-P4Z
SWITCH ASSY,P/W MAIN
グレ-; 2007-05-01~ |
37990-82G30-P4Z |
— | ||
| replacement | |||||
|
6
|
6
37990-82G31-P4Z Switch Assy,p/w Main(Gray)グレ-; 2007-05-01~ |
37990-82G31-P4Z |
US $323.84 |
||
|
7
|
7
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)サブ スイッチ,グレ-; 2007-05-01~ |
37995-75F00-P4Z |
from US $47.05 |
||
|
8
|
8
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)リヤ スイッチ,グレ-; 2007-05-01~ |
37995-75F00-P4Z |
from US $47.05 |
||
|
9
|
9
37950-75F10-000 SWITCH ASSY,MIRROR2007-05-01~ |
37950-75F10-000 |
US $41.95 |
||
|
12
|
12
37285-75F10-000 CAP,OPTION SW HOLE2007-05-01~ |
37285-75F10-000 |
US $2.80 |
||
|
13
|
13
38910-82G00-000 CONTROLLER ASSY,A/B2007-05-01~ |
38910-82G00-000 |
US $897.60 |
||
|
14
|
14
09115-06004-000 BOLT(6X16)2007-05-01~ |
09115-06004-000 |
US $12.50 |
||
|
15
|
15
35180-81J10-000 SWITCH ASSY,HEADLAMP LEVELING2007-05-01~ |
35180-81J10-000 |
US $61.46 |
||
|
16
|
16
37970-76F01-000
Switch assy,clutch start
MT; 2007-05-01~ |
37970-76F01-000 |
— | ||
| replacement | |||||
|
16
|
16
37970-76F02-000 SWITCH ASSY,CLUTCH STARTMT; 2007-05-01~ |
37970-76F02-000 |
US $21.34 |
||
|
17
|
17
09140-10043-000 NUTNut, tie rod rh thread MT; 2007-05-01~ |
09140-10043-000 |
from US $0.91 |
||
|
18
|
18
38500-72J00-000
ホーンアッシ
2007-05-01~ |
38500-72J00-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-72J01-000
New Genuine Part
2007-05-01~ |
38500-72J01-000 |
— | ||
|
19
|
19
09115-08001-000 BOLT(8X18)2007-05-01~ |
09115-08001-000 |
US $15.10 |
||
|
20
|
20
38570-82G20-000
ブラケット,ホーン
2007-05-01~ |
38570-82G20-000 |
— | ||
|
21
|
21
09115-06005-000 BOLT(6X16)2007-05-01~ |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
38610-84F00-000 RELAY,TURN SIGNAL&4WAY2007-05-01~ |
38610-84F00-000 |
US $48 |
||
|
23
|
23
39400-54G00-000 LIGHTER ASSY,CIGARETTE2007-05-01~ |
39400-54G00-000 |
US $22.26 |
||
|
24
|
24
38720-84H20-000
コントローラアッシ,パワーステアリング
BW; 2007-05-01~ |
38720-84H20-000 |
— | ||
|
25
|
25
02142-0516A-000 SCREWScrew 2007-05-01~ |
02142-0516A-000 |
from US $0.76 |
||
|
26
|
26
33945-82C10-000 SENSOR ASSY,G4WD; 2007-05-01~ |
33945-82C10-000 |
US $283.36 |
||
|
27
|
27
09132-06010-000 SCREW(6X16)4WD; 2007-05-01~ |
09132-06010-000 |
from US $1.04 |
||
|
28
|
28
37270-81J10-000 SWITCH ASSY,FR FOGBW; 2007-05-01~ |
37270-81J10-000 |
US $50.05 |
||
|
29
|
29
38860-72G00-000 RELAY ASSYRelay, air con フオグランプ リレー; BW; 2007-05-01~ |
38860-72G00-000 |
US $45.60 |
||
|
30
|
30
37430-66H00-000 SWITCH ASSY,HAZARD WARNING2007-05-01~ |
37430-66H00-000 |
US $40.48 |
||
|
31
|
31
37190-82G00-000 CONTROLLER ASSY,KEYLESS&D/L2007-05-01~ |
37190-82G00-000 |
US $252.08 |
||
|
32
|
32
37850-81J10-000
スイッチアッシ,シートヒータ
4WD; 2007-05-01~ |
37850-81J10-000 |
— | ||
