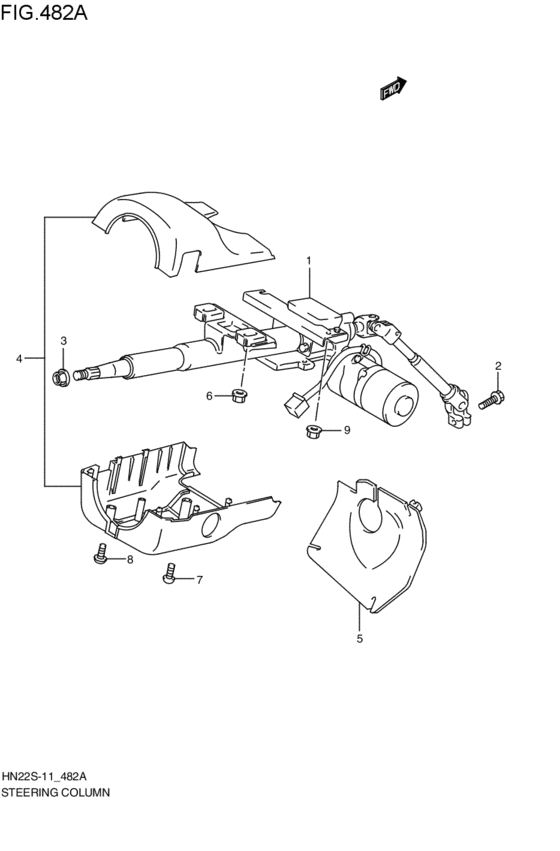

steering column (2008-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- BW
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-74G30-000
コラムアッシ,コラプシブルステアリング
2008-04-01~ |
48200-74G30-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30)2008-04-01~ |
09117-08053-000 |
US $20.20 |
||
|
3
|
3
08316-1012A-000 NUT2008-04-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-78F01-P4Z COVER ASSY,STRG COLUMN2008-04-01~ |
48400-78F01-P4Z |
US $47.84 |
||
|
5
|
5
48481-76G00-000 COVER,STRG JOINT2008-04-01~ |
48481-76G00-000 |
US $15.42 |
||
|
6
|
6
09159-08135-000 NUT2008-04-01~ |
09159-08135-000 |
from US $0.81 |
||
|
7
|
7
09136-05030-000 SCREW(5X12)2008-04-01~ |
09136-05030-000 |
US $0.96 |
||
|
8
|
8
03211-0512B-000 SCREW2008-04-01~ |
03211-0512B-000 |
US $7.70 |
||
|
9
|
9
08316-1008A-000 NUTNut, idle gear shaft 2008-04-01~ |
08316-1008A-000 |
from US $0.76 |
