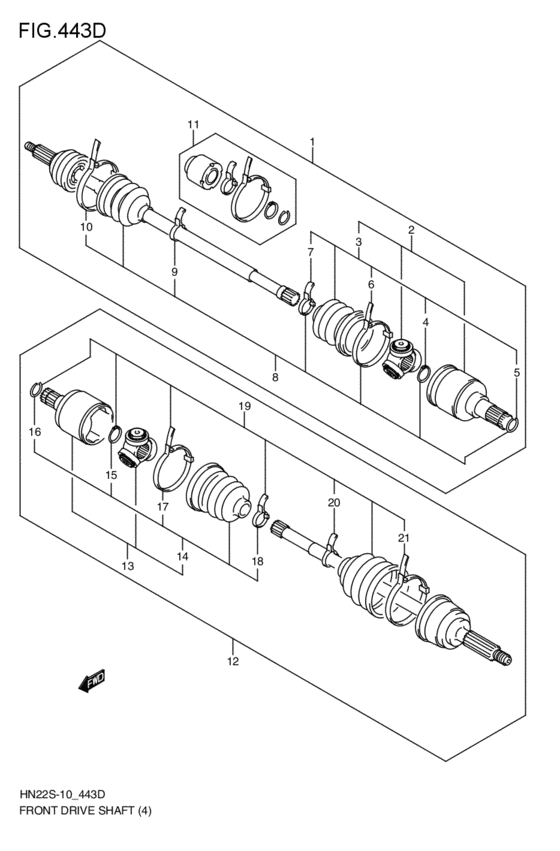

front-drive shaft (2WD:AT:TURBO; 2007-05-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- BW
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-73H22-000
シャフトアッシ,フロントドライブライト
2WD:AT:TURBO; 2007-05-01~ |
44101-73H22-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-73H25-000 SHAFT ASSY,FRONT DRIVE,R2WD:AT:TURBO; 2007-05-01~ |
44101-73H25-000 |
US $1,334.20 |
||
|
2
|
2
44114-58J31-000
ジョイントアッシ,ディファレンシャルサイドライト
2WD:AT:TURBO; 2007-05-01~ |
44114-58J31-000 |
— | ||
| replacements | |||||
|
2
|
2
44114-58J32-000
ジョイントアッシ,ディファレンシャルサイド
2WD:AT:TURBO; 2007-05-01~ |
44114-58J32-000 |
— | ||
|
2
|
2
44114-58J33-000
New Genuine Part
2WD:AT:TURBO; 2007-05-01~ |
44114-58J33-000 |
— | ||
|
3
|
3
44119-76G51-000
BOOT SET,DIFF SIDE
2WD:AT:TURBO; 2007-05-01~ |
44119-76G51-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-76G52-000 BOOT SET,DIFF SIDE2WD:AT:TURBO; 2007-05-01~ |
44119-76G52-000 |
US $53.73 |
||
|
4
|
4
44111-64B90-000 RING,SNAP2WD:AT:TURBO; 2007-05-01~ |
44111-64B90-000 |
US $2.80 |
||
|
5
|
5
44112-58JA0-000 CIRCLIP2WD:AT:TURBO; 2007-05-01~ |
44112-58JA0-000 |
US $3.97 |
||
|
6
|
6
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD:AT:TURBO; 2007-05-01~ |
44122-86010-000 |
from US $9.02 |
||
|
7
|
7
44124-86011-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
8
|
8
44118-78G01-000
BOOT SET,WHEEL SIDE
2WD:AT:TURBO; 2007-05-01~ |
44118-78G01-000 |
— | ||
| replacement | |||||
|
8
|
8
44118-78G02-000 BOOT SET,WHEEL SIDE2WD:AT:TURBO; 2007-05-01~ |
44118-78G02-000 |
US $81.33 |
||
|
9
|
9
44124-86011-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
10
|
10
44222-51F00-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44222-51F00-000 |
US $10.23 |
||
|
11
|
11
44411-78G11-000
ダンパセット
2WD:AT:TURBO; 2007-05-01~ |
44411-78G11-000 |
— | ||
| replacement | |||||
|
11
|
11
44411-58J12-000
New Genuine Part
2WD:AT:TURBO; 2007-05-01~ |
44411-58J12-000 |
— | ||
|
12
|
12
44102-84H11-000
シャフトアッシ,フロントドライブレフト
2WD:AT:TURBO; 2007-05-01~ |
44102-84H11-000 |
— | ||
| replacement | |||||
|
12
|
12
44102-84H14-000
シャフトアッシ,フロントドライブレフト
2WD:AT:TURBO; 2007-05-01~ |
44102-84H14-000 |
— | ||
|
13
|
13
44114-58J31-000
ジョイントアッシ,ディファレンシャルサイドライト
2WD:AT:TURBO; 2007-05-01~ |
44114-58J31-000 |
— | ||
| replacements | |||||
|
13
|
13
44114-58J32-000
ジョイントアッシ,ディファレンシャルサイド
2WD:AT:TURBO; 2007-05-01~ |
44114-58J32-000 |
— | ||
|
13
|
13
44114-58J33-000
New Genuine Part
2WD:AT:TURBO; 2007-05-01~ |
44114-58J33-000 |
— | ||
|
14
|
14
44119-76G51-000
BOOT SET,DIFF SIDE
2WD:AT:TURBO; 2007-05-01~ |
44119-76G51-000 |
— | ||
| replacement | |||||
|
14
|
14
44119-76G52-000 BOOT SET,DIFF SIDE2WD:AT:TURBO; 2007-05-01~ |
44119-76G52-000 |
US $53.73 |
||
|
15
|
15
44111-64B90-000 RING,SNAP2WD:AT:TURBO; 2007-05-01~ |
44111-64B90-000 |
US $2.80 |
||
|
16
|
16
44112-58JA0-000 CIRCLIP2WD:AT:TURBO; 2007-05-01~ |
44112-58JA0-000 |
US $3.97 |
||
|
17
|
17
44122-86010-000 BAND,BOOTClamp, differential side outer boot 2WD:AT:TURBO; 2007-05-01~ |
44122-86010-000 |
from US $9.02 |
||
|
18
|
18
44124-86011-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
19
|
19
44118-78G01-000
BOOT SET,WHEEL SIDE
2WD:AT:TURBO; 2007-05-01~ |
44118-78G01-000 |
— | ||
| replacement | |||||
|
19
|
19
44118-78G02-000 BOOT SET,WHEEL SIDE2WD:AT:TURBO; 2007-05-01~ |
44118-78G02-000 |
US $81.33 |
||
|
20
|
20
44124-86011-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
21
|
21
44222-51F00-000 BAND,BOOT2WD:AT:TURBO; 2007-05-01~ |
44222-51F00-000 |
US $10.23 |
||
