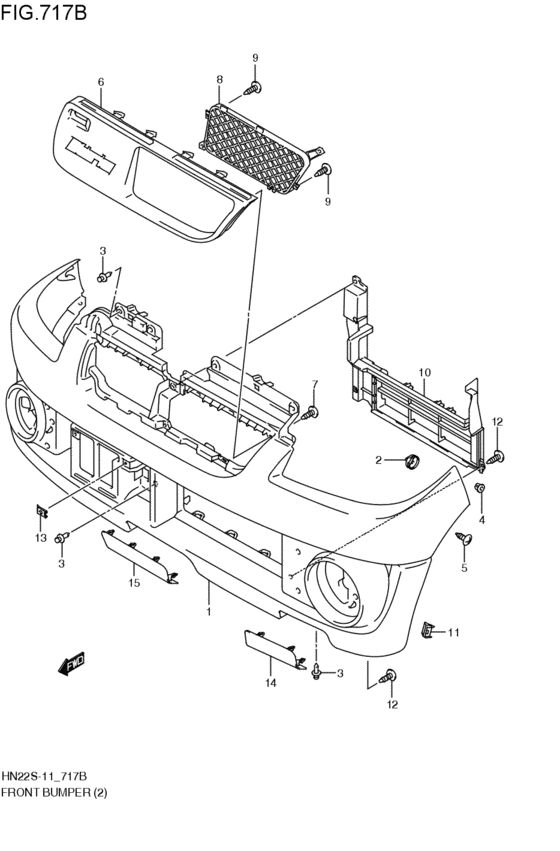

front bumper (BW; 2008-04-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- BW
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-82G60-Z7T
バンパ,フロント(ホワイト)
BW; 2008-04-01~ |
71711-82G60-Z7T |
— | ||
| replacement | |||||
|
1
|
1
71711-82G60-799 BUMPER,FR(PRIMARY)BW; 2008-04-01~ |
71711-82G60-799 |
US $499.84 |
||
|
1
|
1
71711-82G60-799 BUMPER,FR(PRIMARY)BW; 2008-04-01~ |
71711-82G60-799 |
US $499.84 |
||
|
2
|
2
71712-82G00-000 CLIP,BUMPER SIDE UPPERBW; 2008-04-01~ |
71712-82G00-000 |
US $1.60 |
||
|
3
|
3
09409-08327-000 CLIPBW; 2008-04-01~ |
09409-08327-000 |
from US $1.17 |
||
|
4
|
4
09148-06007-000 NUTBW; 2008-04-01~ |
09148-06007-000 |
from US $0.88 |
||
|
5
|
5
03241-0616A-000 SCREWBW; 2008-04-01~ |
03241-0616A-000 |
US $7.70 |
||
|
6
|
6
71741-82G60-000 GRILLE,FR BUMPERBW; 2008-04-01~ |
71741-82G60-000 |
US $102.30 |
||
|
7
|
7
03541-0412A-000 SCREWScrew, speedometer BW; 2008-04-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
8
|
8
71742-82G60-38B NET,FR BUMPER GRILLEBW; 2008-04-01~ |
71742-82G60-38B |
US $57.04 |
||
|
9
|
9
03541-0412A-000 SCREWScrew, speedometer BW; 2008-04-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
10
|
10
71772-82G61-5PK NET,FR BUMPER LWR,LBW; 2008-04-01~ |
71772-82G61-5PK |
US $48.58 |
||
|
11
|
11
71715-82G60-000 BRACKET,BUMPER MOLDINGBW; 2008-04-01~ |
71715-82G60-000 |
US $5.59 |
||
|
12
|
12
03541-0512A-000 SCREWBW; 2008-04-01~ |
03541-0512A-000 |
from US $0.68 |
||
|
13
|
13
09148-06021-000 NUTNut, air cleaner BW; 2008-04-01~ |
09148-06021-000 |
from US $1.31 |
||
|
14
|
14
71713-82G60-ZJ3 COVER,FR BUMPER LWR,LBW; 2008-04-01~ |
71713-82G60-ZJ3 |
US $55.94 |
||
|
14
|
14
71713-82G60-ZY4
Cover,fr bumper lower,l
BW; 2008-04-01~ |
71713-82G60-ZY4 |
— | ||
| replacement | |||||
|
14
|
14
71713-82G60-799 COVER,FR BUMPER LWR,LBW; 2008-04-01~ |
71713-82G60-799 |
US $41.95 |
||
|
14
|
14
71713-82G60-Z7T COVER,FR BUMPER LWR,LBW; 2008-04-01~ |
71713-82G60-Z7T |
US $55.94 |
||
|
15
|
15
71714-82G60-ZJ3 COVER,FR BUMPER LWR CTRBW; 2008-04-01~ |
71714-82G60-ZJ3 |
US $83.54 |
||
|
15
|
15
71714-82G60-ZY4
Cover,fr bumper lower ctr(gray
BW; 2008-04-01~ |
71714-82G60-ZY4 |
— | ||
| replacement | |||||
|
15
|
15
71714-82G60-799 COVER,FR BUMPER LWR CTRBW; 2008-04-01~ |
71714-82G60-799 |
US $68.08 |
||
|
15
|
15
71714-82G60-Z7T COVER,FR BUMPER LWR CTRBW; 2008-04-01~ |
71714-82G60-Z7T |
US $83.54 |
||
