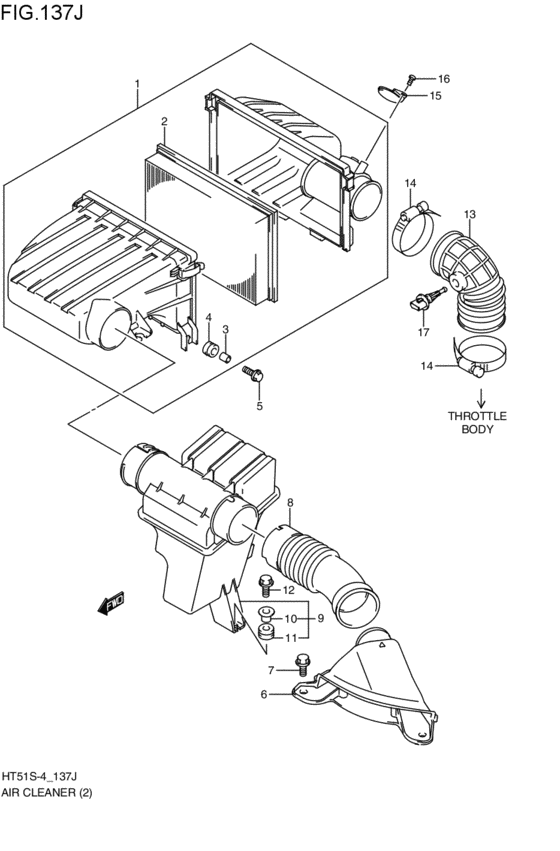

air cleaner (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-86G10-000 CLEANER ASSY,AIRM15A; 2003-06-01~2005-03-01 |
13700-86G10-000 |
US $172.59 |
||
|
2
|
2
13780-86G00-000 ELEMENT,AIR CLEANERM15A; 2003-06-01~2005-03-01 |
13780-86G00-000 |
US $48.58 |
||
|
3
|
3
13877-83E00-000 COLLARM15A; 2003-06-01~2005-03-01 |
13877-83E00-000 |
US $9.89 |
||
|
4
|
4
13878-83E00-000 GROMMETM15A; 2003-06-01~2005-03-01 |
13878-83E00-000 |
US $9.89 |
||
|
5
|
5
09136-06141-000 SCREW(6X25)M15A; 2003-06-01~2005-03-01 |
09136-06141-000 |
from US $0.86 |
||
|
6
|
6
13765-70H00-000 PIPE,AIR CLNR SUCTIONM15A; 2003-06-01~2005-03-01 |
13765-70H00-000 |
US $19.14 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
M15A; 2003-06-01~2005-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt M15A; 2003-06-01~2005-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket M15A; 2003-06-01~2005-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
13766-86G00-000 HOSE,AIR SUCTIONM15A; 2003-06-01~2005-03-01 |
13766-86G00-000 |
US $26.13 |
||
|
9
|
9
13870-86G00-000 PIPE,AIR INTAKEM15A; 2003-06-01~2005-03-01 |
13870-86G00-000 |
US $79.49 |
||
|
10
|
10
09169-09008-000 WASHERM15A; 2003-06-01~2005-03-01 |
09169-09008-000 |
US $11 |
||
|
11
|
11
09320-11017-000 CUSHIONM15A; 2003-06-01~2005-03-01 |
09320-11017-000 |
from US $10.06 |
||
|
12
|
12
01550-06203-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap M15A; 2003-06-01~2005-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
13881-60J00-000 HOSE,AIR CLEANER OUTLETM15A; 2003-06-01~2005-03-01 |
13881-60J00-000 |
US $64 |
||
|
14
|
14
09402-70503-000 CLAMPClamp,tank M15A; 2003-06-01~2005-03-01 |
09402-70503-000 |
from US $12.64 |
||
|
15
|
15
13718-60J00-000 PLATE,MAIN FLOW SENSORM15A; 2003-06-01~2005-03-01 |
13718-60J00-000 |
US $5.85 |
||
|
16
|
16
02112-04063-000
Screw
M15A; 2003-06-01~2005-03-01 |
02112-04063-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0406B-000 SCREWM15A; 2003-06-01~2005-03-01 |
02112-0406B-000 |
from US $0.76 |
||
|
17
|
17
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp M15A; 2003-06-01~2005-03-01 |
13650-52G00-000 |
from US $50.92 |
||
