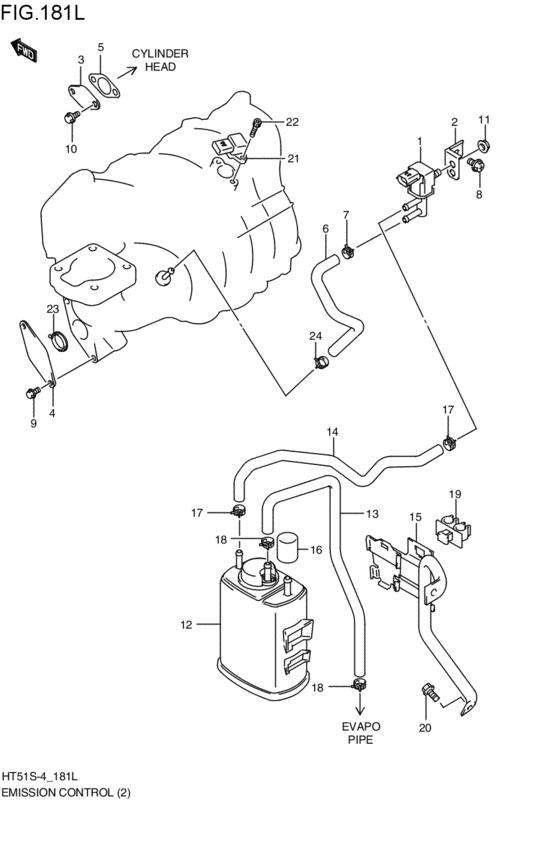

emission control (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge M15A; 2003-06-01~2005-03-01 |
18117-52G00-000 |
from US $70.63 |
||
|
2
|
2
18417-63J00-000 BRACKET,VSVM15A; 2003-06-01~2005-03-01 |
18417-63J00-000 |
US $6.99 |
||
|
3
|
3
18491-80GA0-000 PLATE,EGR VALVEM15A; 2003-06-01~2005-03-01 |
18491-80GA0-000 |
US $5.28 |
||
|
4
|
4
18492-60J00-000 PLATE,EGR PIPEM15A; 2003-06-01~2005-03-01 |
18492-60J00-000 |
US $2.69 |
||
|
5
|
5
18529-69G00-000 GASKET,EGR VALVEM15A; 2003-06-01~2005-03-01 |
18529-69G00-000 |
US $1.92 |
||
|
6
|
6
18564-86G00-000
ホース,パージ
M15A; 2003-06-01~2005-02-01 |
18564-86G00-000 |
— | ||
| replacements | |||||
|
6
|
6
09401-11411-000 CLIPM15A; 2003-06-01~2005-02-01 |
09401-11411-000 |
from US $6.38 |
||
|
6
|
6
18564-86G01-000 HOSE,PURGE VSV TO INMFM15A; 2003-06-01~2005-02-01 |
18564-86G01-000 |
US $19.50 |
||
|
6
|
6
18564-86G01-000 HOSE,PURGE VSV TO INMFM15A; 2005-03-01~2005-03-01 |
18564-86G01-000 |
US $19.50 |
||
|
7
|
7
09401-10409-000 CLIPM15A; 2003-06-01~2003-09-01 |
09401-10409-000 |
from US $1.12 |
||
|
7
|
7
09401-10411-000 CLIPClip, cap M15A; 2003-09-01~2005-02-01 |
09401-10411-000 |
from US $3.83 |
||
|
7
|
7
09401-11411-000 CLIPM15A; 2005-03-01~2005-03-01 |
09401-11411-000 |
from US $6.38 |
||
|
8
|
8
01550-06123-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp M15A; 2003-06-01~2005-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
01550-06123-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp M15A; 2003-06-01~2005-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
01550-08163-000
Bolt, holder
M15A; 2003-06-01~2005-03-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear M15A; 2003-06-01~2005-03-01 |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
08316-10063-000
Nut
M15A; 2003-06-01~2005-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1006B-000 NUTM15A; 2003-06-01~2005-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
18560-81AA0-000 CANISTERM15A; 2003-06-01~2005-03-01 |
18560-81AA0-000 |
from US $87.20 |
||
|
13
|
13
18561-60J00-000
HOSE,CANISTER INLET
M15A; 2003-06-01~2005-03-01 |
18561-60J00-000 |
— | ||
|
14
|
14
18562-60J00-000
HOSE,CANISTER PURGE
M15A; 2003-06-01~2005-03-01 |
18562-60J00-000 |
— | ||
|
15
|
15
18570-60J00-000
BRACKET,CANISTER
M15A; 2003-06-01~2005-03-01 |
18570-60J00-000 |
— | ||
|
16
|
16
18571-65H20-000 CAP,CANISTER AIRM15A; 2003-06-01~2005-03-01 |
18571-65H20-000 |
US $2.43 |
||
|
17
|
17
09401-10409-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-10409-000 |
from US $1.12 |
||
|
18
|
18
09401-11419-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-11419-000 |
from US $1.42 |
||
|
19
|
19
09403-11318-000
CLAMP
M15A; 2003-06-01~2005-03-01 |
09403-11318-000 |
— | ||
|
20
|
20
02162-06123-000
Bolt (6x12)
M15A; 2003-06-01~2005-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
02162-0612B-000 SCREWBolt M15A; 2003-06-01~2005-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
20
|
20
02162-0612A-000 SCREWBolt, bracket M15A; 2003-06-01~2005-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
21
|
21
18590-72F21-000
SENSOR,PRESSURE
M15A; 2003-06-01~2005-03-01 |
18590-72F21-000 |
— | ||
| replacement | |||||
|
21
|
21
18590-68H00-000 SENSOR,PRESSURESensor, pressure M15A; 2003-06-01~2005-03-01 |
18590-68H00-000 |
from US $196.47 |
||
|
22
|
22
07130-05163-000
Bolt
M15A; 2003-06-01~2005-03-01 |
07130-05163-000 |
— | ||
| replacement | |||||
|
22
|
22
07130-0516A-000 BoltM15A; 2003-06-01~2005-03-01 |
07130-0516A-000 |
from US $3.67 |
||
|
23
|
23
18534-86G00-000 GASKET,EGR PIPEM15A; 2003-06-01~2005-03-01 |
18534-86G00-000 |
from US $5.45 |
||
|
24
|
24
09401-10411-000 CLIPClip, cap M15A; 2003-09-01~2005-02-01 |
09401-10411-000 |
from US $3.83 |
||
|
24
|
24
09401-11411-000 CLIPM15A; 2003-06-01~2003-09-01 |
09401-11411-000 |
from US $6.38 |
||
