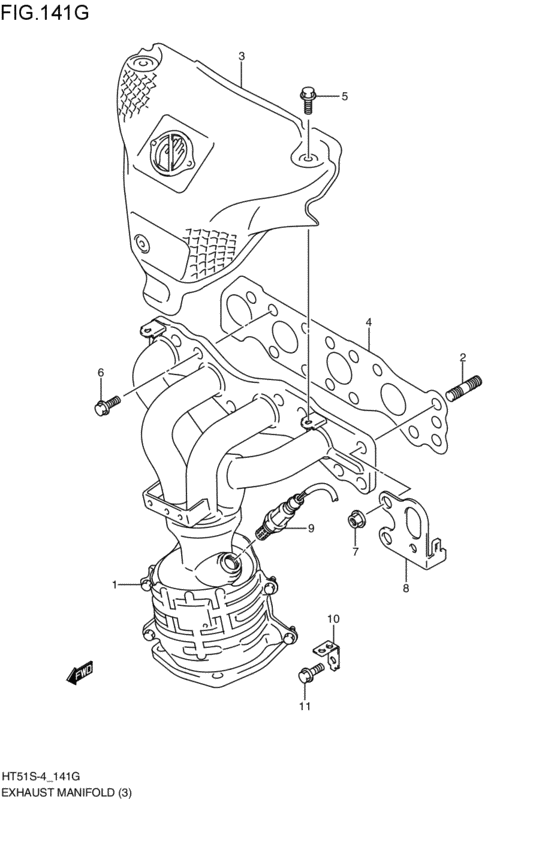

exhaust manifold (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-70H01-000
マニホールド,エキゾースト
M15A; 2003-06-01~2005-03-01 |
14110-70H01-000 |
— | ||
| replacement | |||||
|
1
|
1
14110-70H05-H02 MANIFOLD,EXHM15A; 2003-06-01~2005-03-01 |
14110-70H05-H02 |
US $1,183.36 |
||
|
2
|
2
14118-63J00-000 STUD BOLT,EXH MANFM15A; 2003-06-01~2005-03-01 |
14118-63J00-000 |
from US $1.22 |
||
|
3
|
3
14120-70H02-000 COVER,EXH MANFM15A; 2003-06-01~2005-03-01 |
14120-70H02-000 |
US $89.60 |
||
|
4
|
4
14140-69G01-000
ガスケット,エキゾーストマニホールド
M15A; 2003-06-01~2005-03-01 |
14140-69G01-000 |
— | ||
| replacement | |||||
|
4
|
4
14140-69G02-000 GASKET,EXH MANFM15A; 2003-06-01~2005-03-01 |
14140-69G02-000 |
from US $13.10 |
||
|
5
|
5
09103-06186-000
Bolt
M15A; 2003-06-01~2005-03-01 |
09103-06186-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-06167-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
01550-10253-000
Bolt
M15A; 2003-06-01~2004-10-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-1025B-000 BoltBolt, rr swgarm bracket, l M15A; 2003-06-01~2004-10-01 |
01550-1025B-000 |
from US $5.59 |
||
|
6
|
6
01550-1025A-000 BOLTBolt, drive gear M15A; 2003-06-01~2004-10-01 |
01550-1025A-000 |
from US $1.06 |
||
|
6
|
6
09103-10209-000 BOLT(10X23)M15A; 2004-10-01~2005-03-01 |
09103-10209-000 |
US $2.72 |
||
|
7
|
7
08316-10103-000
Nut
M15A; 2003-06-01~2005-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUTM15A; 2003-06-01~2005-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
11851-70H01-000 HOOK,ENGINEM15A; 2003-06-01~2005-03-01 |
11851-70H01-000 |
US $8.35 |
||
|
9
|
9
18213-70H01-000
センサアッシ,オキシジェン
M15A; 2003-06-01~2005-03-01 |
18213-70H01-000 |
— | ||
| replacement | |||||
|
9
|
9
18213-70H02-000 SENSOR,OXYGENM15A; 2003-06-01~2005-03-01 |
18213-70H02-000 |
US $285.20 |
||
|
10
|
10
18214-60J00-000 BRACKET,OXYGEN SENSORM15A; 2003-06-01~2005-03-01 |
18214-60J00-000 |
US $2.65 |
||
|
11
|
11
01550-06103-000
Bolt, front
M15A; 2003-06-01~2005-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt M15A; 2003-06-01~2005-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
11
|
11
01550-0610A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0610A-000 |
from US $0.80 |
||
