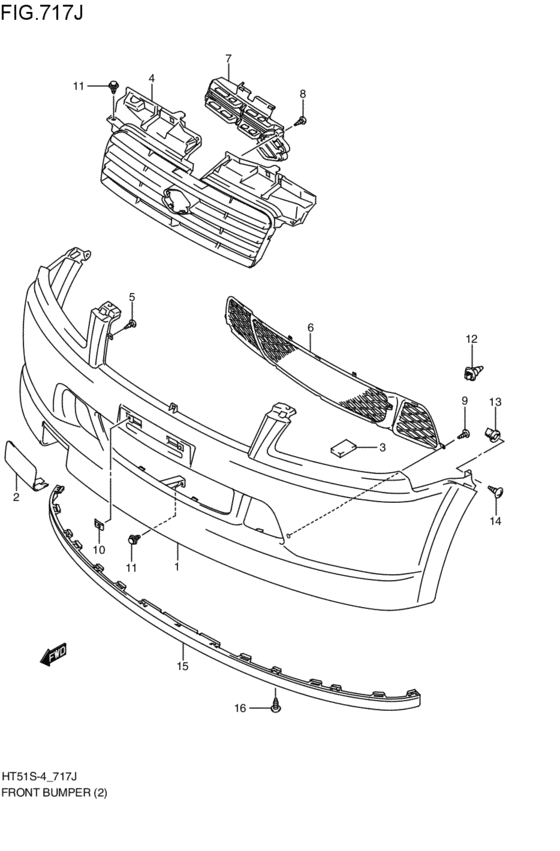

front bumper (SS; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-60J00-799
BUMPER,FR(PRIMARY)
プライマリ-; SS; 2003-06-01~2005-03-01 |
71711-60J00-799 |
— | ||
|
2
|
2
71712-60J00-ZJ3
COVER,TOWING HOOK FR
ブラック; SS; 2003-06-01~2005-03-01 |
71712-60J00-ZJ3 |
— | ||
| replacement | |||||
|
2
|
2
71712-60J00-799 COVER,TOWING HOOK FR (NON-PAINTED) PRIMARY COATブラック; SS; 2003-06-01~2005-03-01 |
71712-60J00-799 |
US $92 |
||
|
2
|
2
71712-60J00-ZY2
Cover,towing hook fr(yellow)
イエロ-; SS; 2003-06-01~2005-03-01 |
71712-60J00-ZY2 |
— | ||
| replacement | |||||
|
2
|
2
71712-60J00-799 COVER,TOWING HOOK FR (NON-PAINTED) PRIMARY COATイエロ-; SS; 2003-06-01~2005-03-01 |
71712-60J00-799 |
US $92 |
||
|
2
|
2
71712-60J00-Z2S COVER,TOWING HOOK FRシルバ-; SS; 2003-06-01~2005-03-01 |
71712-60J00-Z2S |
US $31.46 |
||
|
2
|
2
71712-60J00-Z9T
Cover,towing hook fr(red)
レッド; SS; 2003-06-01~2005-03-01 |
71712-60J00-Z9T |
— | ||
| replacement | |||||
|
2
|
2
71712-60J00-799 COVER,TOWING HOOK FR (NON-PAINTED) PRIMARY COATレッド; SS; 2003-06-01~2005-03-01 |
71712-60J00-799 |
US $92 |
||
|
2
|
2
71712-60J00-26U COVER,TOWING HOOK FRホワイト; SS; 2003-06-01~2005-03-01 |
71712-60J00-26U |
US $31.46 |
||
|
3
|
3
63191-25C00-000 CUSHIONCushion, guard L:30X40>25X40; SS; 2003-06-01~2005-03-01 |
63191-25C00-000 |
from US $1.92 |
||
|
4
|
4
71741-60J00-000 GRILLE,RDTRSS; 2003-06-01~2005-03-01 |
71741-60J00-000 |
US $98.99 |
||
|
5
|
5
03541-04123-000
Screw
SS; 2003-06-01~2005-03-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
5
|
5
03541-0412B-000 SCREWScrew, plate SS; 2003-06-01~2005-03-01 |
03541-0412B-000 |
from US $0.80 |
||
|
5
|
5
03541-0412A-000 SCREWScrew, speedometer SS; 2003-06-01~2005-03-01 |
03541-0412A-000 |
from US $0.80 |
||
|
6
|
6
71731-60J00-5PK
NET,RADIATOR LWR
ブラック; SS; 2003-06-01~2005-03-01 |
71731-60J00-5PK |
— | ||
|
7
|
7
71742-60J00-5PK
COVER,RADIATOR GRILLE
ブラック; SS; 2003-06-01~2005-03-01 |
71742-60J00-5PK |
— | ||
|
8
|
8
03541-04123-000
Screw
SS; 2003-06-01~2005-03-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
8
|
8
03541-0412B-000 SCREWScrew, plate SS; 2003-06-01~2005-03-01 |
03541-0412B-000 |
from US $0.80 |
||
|
8
|
8
03541-0412A-000 SCREWScrew, speedometer SS; 2003-06-01~2005-03-01 |
03541-0412A-000 |
from US $0.80 |
||
|
9
|
9
03541-04123-000
Screw
SS; 2003-06-01~2005-03-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
9
|
9
03541-0412B-000 SCREWScrew, plate SS; 2003-06-01~2005-03-01 |
03541-0412B-000 |
from US $0.80 |
||
|
9
|
9
03541-0412A-000 SCREWScrew, speedometer SS; 2003-06-01~2005-03-01 |
03541-0412A-000 |
from US $0.80 |
||
|
10
|
10
71812-82010-000
Nut
SS; 2003-06-01~2005-03-01 |
71812-82010-000 |
— | ||
| replacement | |||||
|
10
|
10
09148-06021-000 NUTNut, air cleaner SS; 2003-06-01~2005-03-01 |
09148-06021-000 |
from US $1.31 |
||
|
11
|
11
09409-08327-000 CLIPSS; 2003-06-01~2005-03-01 |
09409-08327-000 |
from US $1.13 |
||
|
12
|
12
09409-09304-000 CLIPSS; 2003-06-01~2005-03-01 |
09409-09304-000 |
from US $1.33 |
||
|
13
|
13
09148-06007-000 NUTSS; 2003-06-01~2005-03-01 |
09148-06007-000 |
from US $0.86 |
||
|
14
|
14
03242-06163-000
Screw
SS; 2003-06-01~2005-03-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0616C-000 SCREWSS; 2003-06-01~2005-03-01 |
03241-0616C-000 |
from US $0.76 |
||
|
15
|
15
71760-60J00-000
SKIRT,FR AIR DAM
SS; 2003-06-01~2005-03-01 |
71760-60J00-000 |
— | ||
|
16
|
16
03541-05123-000
Screw
SS; 2003-06-01~2005-03-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0512B-000 SCREWSS; 2003-06-01~2005-03-01 |
03541-0512B-000 |
from US $0.76 |
||
