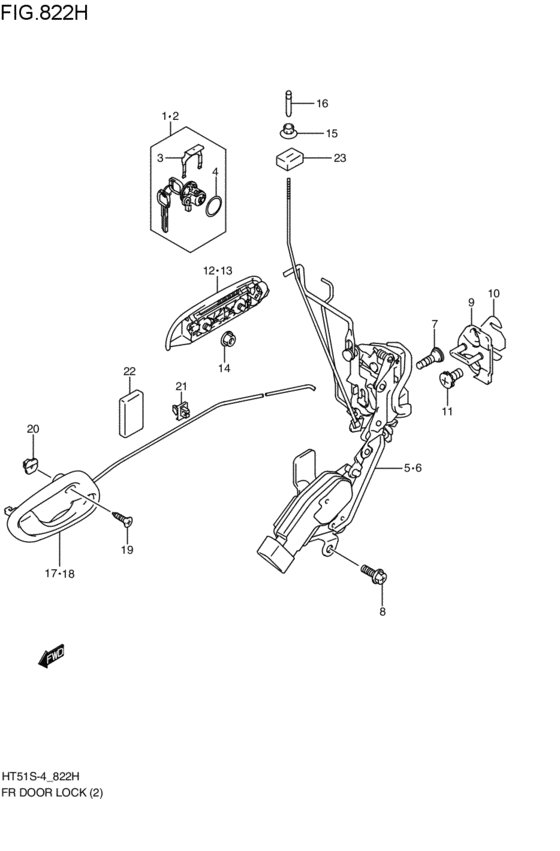

front door lock (3DR; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82270-76810-000 CYLINDER,FR DR LOCK,R3DR; 2003-06-01~2005-03-01 |
82270-76810-000 |
from US $45.63 |
||
|
2
|
2
82280-76810-000 CYLINDER,FR DR LOCK,L3DR; 2003-06-01~2005-03-01 |
82280-76810-000 |
US $45.63 |
||
|
3
|
3
82291-81A00-000 RETAINER,FR DR CYLINDER3DR; 2003-06-01~2005-03-01 |
82291-81A00-000 |
US $2.98 |
||
|
4
|
4
82292-81A00-000 SHEET,DOOR LATCH CYLINDER3DR; 2003-06-01~2005-03-01 |
82292-81A00-000 |
US $4 |
||
|
5
|
5
82201-82G00-000
ラッチアッシ,フロントドア,ライト
3DR; 2003-06-01~2005-03-01 |
82201-82G00-000 |
— | ||
| replacement | |||||
|
5
|
5
82201-82G01-000
LATCH ASSY,FR DR,R
3DR; 2003-06-01~2005-03-01 |
82201-82G01-000 |
— | ||
|
6
|
6
82202-82G00-000
ラッチアッシ,フロントドア,レフト
3DR; 2003-06-01~2005-03-01 |
82202-82G00-000 |
— | ||
| replacement | |||||
|
6
|
6
82202-82G01-000 LATCH ASSY,FR DR,L3DR; 2003-06-01~2005-03-01 |
82202-82G01-000 |
US $233.68 |
||
|
7
|
7
09137-06028-000 SCREW(6X18)3DR; 2003-06-01~2005-03-01 |
09137-06028-000 |
US $14.40 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
3DR; 2003-06-01~2005-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 3DR; 2003-06-01~2005-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 3DR; 2003-06-01~2005-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
82610-75F00-000 STRIKER,DOOR LATCH3DR; 2003-06-01~2005-03-01 |
82610-75F00-000 |
US $13.62 |
||
|
10
|
10
78199-78000-000 SPACER,DOOR LOCK STRIKER3DR; 2003-06-01~2005-03-01 |
78199-78000-000 |
US $1.60 |
||
|
11
|
11
09137-08006-000
Screw
3DR; 2003-06-01~2005-03-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
11
|
11
09137-08011-000 SCREW(8X18)3DR; 2003-06-01~2005-03-01 |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
09137-08004-000 SCREW(8X18)3DR; 2003-06-01~2005-03-01 |
09137-08004-000 |
from US $0.90 |
||
|
12
|
12
82801-81A50-ZJ3
HANDLE,SIDE DR OUT,R
ブラック; 3DR; 2003-06-01~2005-03-01 |
82801-81A50-ZJ3 |
— | ||
| replacements | |||||
|
12
|
12
82801-81A51-ZJ3
HANDLE,SIDE DR OUT,R
ブラック; 3DR; 2003-06-01~2005-03-01 |
82801-81A51-ZJ3 |
— | ||
|
12
|
12
82801-81A52-ZJ3
HANDLE,SIDE DR OUT,R
ブラック; 3DR; 2003-06-01~2005-03-01 |
82801-81A52-ZJ3 |
— | ||
|
12
|
12
82801-81A53-ZJ3 Handle Assy,fr Dr Out,rブラック; 3DR; 2003-06-01~2005-03-01 |
82801-81A53-ZJ3 |
US $48.94 |
||
|
12
|
12
82801-81A50-ZY2
HANDLE,SIDE DR OUT,R
イエロ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A50-ZY2 |
— | ||
| replacement | |||||
|
12
|
12
82801-81A51-ZY2 HANDLE,SIDE DR OUT,Rイエロ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A51-ZY2 |
US $54.10 |
||
|
12
|
12
82801-81A50-Z2S
HANDLE,SIDE DR OUT,R(SILVER)
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A50-Z2S |
— | ||
| replacements | |||||
|
12
|
12
82801-81A51-Z2S
HANDLE,SIDE DR OUT,R
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A51-Z2S |
— | ||
|
12
|
12
82801-81A52-Z2S
HANDLE,SIDE DR OUT,R
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A52-Z2S |
— | ||
|
12
|
12
82801-81A53-Z2S Handle Assy,fr Dr Out,rシルバ-; 3DR; 2003-06-01~2005-03-01 |
82801-81A53-Z2S |
US $48.94 |
||
|
12
|
12
82801-81A50-Z9T
HANDLE,SIDE DR OUT,R
レッド; 3DR; 2003-06-01~2005-03-01 |
82801-81A50-Z9T |
— | ||
| replacements | |||||
|
12
|
12
82801-81A51-Z9T
HANDLE,SIDE DR OUT,R
レッド; 3DR; 2003-06-01~2005-03-01 |
82801-81A51-Z9T |
— | ||
|
12
|
12
82801-81A52-Z9T
HANDLE,SIDE DR OUT,R
レッド; 3DR; 2003-06-01~2005-03-01 |
82801-81A52-Z9T |
— | ||
|
12
|
12
82801-81A53-Z9T Handle Assy,fr Dr Out,rレッド; 3DR; 2003-06-01~2005-03-01 |
82801-81A53-Z9T |
US $54.10 |
||
|
12
|
12
82801-81A50-26U
HANDLE,SIDE DR OUT,R
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82801-81A50-26U |
— | ||
| replacements | |||||
|
12
|
12
82801-81A51-26U
HANDLE,SIDE DR OUT,R
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82801-81A51-26U |
— | ||
|
12
|
12
82801-81A52-26U
HANDLE,SIDE DR OUT,R
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82801-81A52-26U |
— | ||
|
12
|
12
82801-81A53-26U Handle Assy,fr Dr Out,rホワイト; 3DR; 2003-06-01~2005-03-01 |
82801-81A53-26U |
from US $24.19 |
||
|
13
|
13
82802-81A50-ZJ3
HANDLE,SIDE DR OUT,L
ブラック; 3DR; 2003-06-01~2005-03-01 |
82802-81A50-ZJ3 |
— | ||
| replacements | |||||
|
13
|
13
82802-81A51-ZJ3
HANDLE,SIDE DR OUT,L
ブラック; 3DR; 2003-06-01~2005-03-01 |
82802-81A51-ZJ3 |
— | ||
|
13
|
13
82802-81A52-ZJ3
HANDLE,SIDE DR OUT,L
ブラック; 3DR; 2003-06-01~2005-03-01 |
82802-81A52-ZJ3 |
— | ||
|
13
|
13
82802-81A53-ZJ3 Handle Assy,fr Dr Out,lブラック; 3DR; 2003-06-01~2005-03-01 |
82802-81A53-ZJ3 |
US $48.94 |
||
|
13
|
13
82802-81A50-ZY2 HANDLE,SIDE DR OUT,Lイエロ-; 3DR; 2003-06-01~2005-03-01 |
82802-81A50-ZY2 |
US $54.10 |
||
|
13
|
13
82802-81A50-Z2S
HANDLE,SIDE DR OUT,L(SILVER)
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82802-81A50-Z2S |
— | ||
| replacements | |||||
|
13
|
13
82802-81A51-Z2S
HANDLE,SIDE DR OUT,L
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82802-81A51-Z2S |
— | ||
|
13
|
13
82802-81A52-Z2S
HANDLE,SIDE DR OUT,L
シルバ-; 3DR; 2003-06-01~2005-03-01 |
82802-81A52-Z2S |
— | ||
|
13
|
13
82802-81A53-Z2S Handle Assy,fr Dr Out,lシルバ-; 3DR; 2003-06-01~2005-03-01 |
82802-81A53-Z2S |
US $48.94 |
||
|
13
|
13
82802-81A50-Z9T
HANDLE,SIDE DR OUT,L
レッド; 3DR; 2003-06-01~2005-03-01 |
82802-81A50-Z9T |
— | ||
| replacement | |||||
|
13
|
13
82802-81A52-Z9T HANDLE,SIDE DR OUT,Lレッド; 3DR; 2003-06-01~2005-03-01 |
82802-81A52-Z9T |
US $54.10 |
||
|
13
|
13
82802-81A50-26U
HANDLE,SIDE DR OUT,L
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82802-81A50-26U |
— | ||
| replacements | |||||
|
13
|
13
82802-81A51-26U
HANDLE,SIDE DR OUT,L
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82802-81A51-26U |
— | ||
|
13
|
13
82802-81A52-26U
HANDLE,SIDE DR OUT,L
ホワイト; 3DR; 2003-06-01~2005-03-01 |
82802-81A52-26U |
— | ||
|
13
|
13
82802-81A53-26U Handle Assy,fr Dr Out,lホワイト; 3DR; 2003-06-01~2005-03-01 |
82802-81A53-26U |
from US $26.46 |
||
|
14
|
14
08316-10063-000
Nut
3DR; 2003-06-01~2005-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT3DR; 2003-06-01~2005-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
82991-76G00-P4Z CAP,DR INSIDE LOCK KNOBグレ-; 3DR; 2003-06-01~2005-03-01 |
82991-76G00-P4Z |
US $1.60 |
||
|
16
|
16
82982-65D00-P4Z KNOB,DOOR INSIDE LOCK (GRAY)グレ-; 3DR; 2003-06-01~2005-03-01 |
82982-65D00-P4Z |
from US $2.24 |
||
|
17
|
17
83101-80G00-FC6
HANDLE ASSY,FR DR INSIDE,R
グレー/クローム; 3DR; 2003-06-01~2005-03-01 |
83101-80G00-FC6 |
— | ||
|
18
|
18
83102-80G00-FC6
HANDLE ASSY,FR DOOR INSIDE,L
グレー/クローム; 3DR; 2003-06-01~2005-03-01 |
83102-80G00-FC6 |
— | ||
|
19
|
19
03521-05163-000
Screw
3DR; 2003-06-01~2005-03-01 |
03521-05163-000 |
— | ||
| replacement | |||||
|
19
|
19
03521-0516A-000 SCREW3DR; 2003-06-01~2005-03-01 |
03521-0516A-000 |
US $7.70 |
||
|
20
|
20
09148-05031-000 NUT3DR; 2003-06-01~2005-03-01 |
09148-05031-000 |
US $1.28 |
||
|
21
|
21
83271-84G00-000 CLIP3DR; 2003-06-01~2005-03-01 |
83271-84G00-000 |
US $2.54 |
||
|
22
|
22
77591-75000-000 PAD3DR; 2003-06-01~2005-03-01 |
77591-75000-000 |
US $2.28 |
||
|
23
|
23
83211-76G00-000 PAD SIDE DOOR INSIDE LOCK3DR; 2003-06-01~2005-03-01 |
83211-76G00-000 |
US $1.88 |
||
