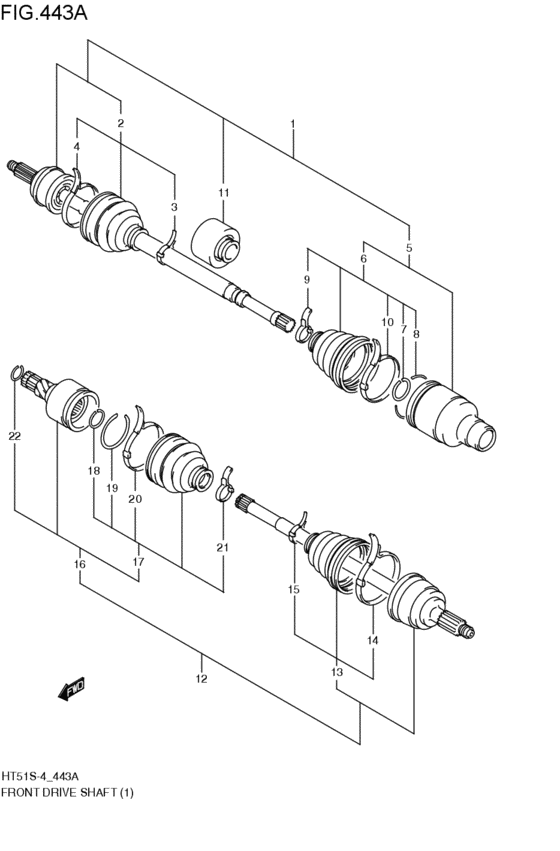

front-drive shaft (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-60J00-000
シャフトアッシ,フロントドライブライト
M15A; 2003-06-01~2005-03-01 |
44101-60J00-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-60J01-000
SHAFT ASSY,FRONT DRIVE,R
M15A; 2003-06-01~2005-03-01 |
44101-60J01-000 |
— | ||
|
2
|
2
44118-60J00-000
BOOT SET,WHEEL SIDE
M15A; 2003-06-01~2005-03-01 |
44118-60J00-000 |
— | ||
| replacement | |||||
|
2
|
2
44118-60JA0-000
BOOT SET,WHEEL SIDE
M15A; 2003-06-01~2005-03-01 |
44118-60JA0-000 |
— | ||
|
3
|
3
44122-86010-000 BAND,BOOTClamp, differential side outer boot M15A; 2003-06-01~2005-03-01 |
44122-86010-000 |
from US $9.02 |
||
|
4
|
4
44124-60A00-000 BANDM15A; 2003-06-01~2005-03-01 |
44124-60A00-000 |
US $7.95 |
||
|
5
|
5
44117-60J00-000 JOINT ASSY,DIFF SIDEM15A; 2003-06-01~2005-03-01 |
44117-60J00-000 |
US $907.20 |
||
|
6
|
6
44119-60J01-000
BOOT SET,DIFF SIDE
M15A; 2003-06-01~2005-03-01 |
44119-60J01-000 |
— | ||
| replacement | |||||
|
6
|
6
44119-60J02-000 BOOT SET,DIFF SIDEM15A; 2003-06-01~2005-03-01 |
44119-60J02-000 |
US $72.50 |
||
|
7
|
7
44111-53B10-000 RING,SNAPM15A; 2003-06-01~2005-03-01 |
44111-53B10-000 |
from US $1.13 |
||
|
8
|
8
44112-53B10-000 CIRCLIPM15A; 2003-06-01~2005-03-01 |
44112-53B10-000 |
US $4.38 |
||
|
9
|
9
44121-53B10-000 BAND,BOOTM15A; 2003-06-01~2005-03-01 |
44121-53B10-000 |
US $13.14 |
||
|
10
|
10
44123-53B10-000 BAND,BOOT SMALLM15A; 2003-06-01~2005-03-01 |
44123-53B10-000 |
US $8.02 |
||
|
11
|
11
44125-54G21-000
DAMPER SET
M15A; 2003-06-01~2005-03-01 |
44125-54G21-000 |
— | ||
| replacement | |||||
|
11
|
11
44125-54GC0-000 DAMPER SETM15A; 2003-06-01~2005-03-01 |
44125-54GC0-000 |
US $109.60 |
||
|
12
|
12
44102-60J02-000
シャフトアッシ,フロントドライブレフト
M15A; 2003-06-01~2005-03-01 |
44102-60J02-000 |
— | ||
| replacement | |||||
|
12
|
12
44102-60J03-000
SHAFT ASSY,FRONT DRIVE,L
M15A; 2003-06-01~2005-03-01 |
44102-60J03-000 |
— | ||
|
13
|
13
44118-60J02-000
BOOT SET,WHEEL SIDE
M15A; 2003-06-01~2005-03-01 |
44118-60J02-000 |
— | ||
| replacement | |||||
|
13
|
13
44118-60J03-000 BOOT SET,WHEEL SIDEM15A; 2003-06-01~2005-03-01 |
44118-60J03-000 |
US $217.12 |
||
|
14
|
14
44122-86010-000 BAND,BOOTClamp, differential side outer boot M15A; 2003-06-01~2005-03-01 |
44122-86010-000 |
from US $9.02 |
||
|
15
|
15
44124-60A00-000 BANDM15A; 2003-06-01~2005-03-01 |
44124-60A00-000 |
US $7.95 |
||
|
16
|
16
44117-60J52-000
JOINT SET,DIFF SIDE
M15A; 2003-06-01~2005-03-01 |
44117-60J52-000 |
— | ||
|
17
|
17
44119-60J01-000
BOOT SET,DIFF SIDE
M15A; 2003-06-01~2005-03-01 |
44119-60J01-000 |
— | ||
| replacement | |||||
|
17
|
17
44119-60J02-000 BOOT SET,DIFF SIDEM15A; 2003-06-01~2005-03-01 |
44119-60J02-000 |
US $72.50 |
||
|
18
|
18
44111-53B10-000 RING,SNAPM15A; 2003-06-01~2005-03-01 |
44111-53B10-000 |
from US $1.13 |
||
|
19
|
19
44112-53B10-000 CIRCLIPM15A; 2003-06-01~2005-03-01 |
44112-53B10-000 |
US $4.38 |
||
|
20
|
20
44121-53B10-000 BAND,BOOTM15A; 2003-06-01~2005-03-01 |
44121-53B10-000 |
US $13.14 |
||
|
21
|
21
44123-53B10-000 BAND,BOOT SMALLM15A; 2003-06-01~2005-03-01 |
44123-53B10-000 |
US $8.02 |
||
|
22
|
22
09381-25003-000 RING,SNAPM15A; 2003-06-01~2005-03-01 |
09381-25003-000 |
US $59.20 |
||
