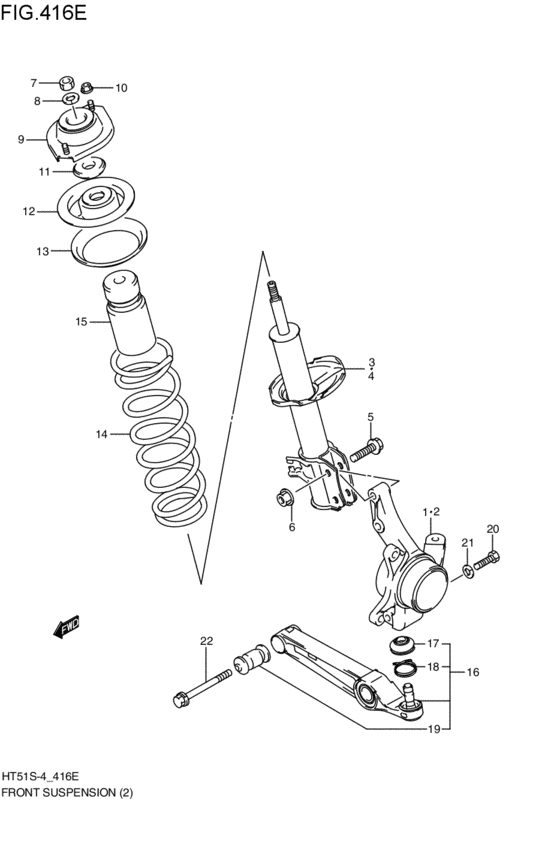

front suspension (SS; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-60J50-000 KNUCKLE,STEERING,RSS; 2003-06-01~2005-03-01 |
45111-60J50-000 |
from US $268.27 |
||
|
2
|
2
45151-60J50-000 KNUCKLE,STEERING,LSS; 2003-06-01~2005-03-01 |
45151-60J50-000 |
from US $268.27 |
||
|
3
|
3
41601-60J50-000 STRUT ASSY,FR SUSPENSION,RSS; 2003-06-01~2005-03-01 |
41601-60J50-000 |
US $466.64 |
||
|
4
|
4
41602-60J50-000 STRUT ASSY,FR SUSPENSION,LSS; 2003-06-01~2005-03-01 |
41602-60J50-000 |
US $466.64 |
||
|
5
|
5
09103-12051-000 BOLT(12X50)SS; 2003-06-01~2005-03-01 |
09103-12051-000 |
from US $2.40 |
||
|
6
|
6
08316-10123-000
Nut
SS; 2003-06-01~2005-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUTSS; 2003-06-01~2005-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09140-12045-000 NUTSS; 2003-06-01~2005-03-01 |
09140-12045-000 |
US $1.76 |
||
|
8
|
8
09162-12006-000 WASHER,LOCKSS; 2003-06-01~2005-03-01 |
09162-12006-000 |
from US $1.28 |
||
|
9
|
9
41710-60J00-000 SUPPORT,FRONT STRUTSS; 2003-06-01~2005-03-01 |
41710-60J00-000 |
US $71.44 |
||
|
10
|
10
09159-08104-000 NUTSS; 2003-06-01~2005-03-01 |
09159-08104-000 |
from US $9.03 |
||
|
11
|
11
41741-50E00-000 BEARING,FR STRUTBearing, front strut SS; 2003-06-01~2005-03-01 |
41741-50E00-000 |
from US $21.80 |
||
|
12
|
12
41230-70H00-000 SEAT,FRONT SPRING UPPERSS; 2003-06-01~2005-03-01 |
41230-70H00-000 |
US $36.48 |
||
|
13
|
13
41211-70H00-000 SEAT,FRONT COIL SPRING RUBBERSS; 2003-06-01~2005-03-01 |
41211-70H00-000 |
US $25.09 |
||
|
14
|
14
41111-60J01-000
SPRING,FRONT COIL
SS; 2003-06-01~2005-03-01 |
41111-60J01-000 |
— | ||
|
15
|
15
42110-60J00-000 STOPPER ASSY,FR BUMPSS; 2003-06-01~2005-03-01 |
42110-60J00-000 |
US $47.89 |
||
|
16
|
16
45200-70H00-000
アームアッシ,フロントサスペンションコントロール
SS; 2003-06-01~2005-03-01 |
45200-70H00-000 |
— | ||
| replacement | |||||
|
16
|
16
45200-70H01-000 ARM ASSY,FR SPNSN CONTROLSS; 2003-06-01~2005-03-01 |
45200-70H01-000 |
US $280 |
||
|
17
|
17
45723-70B00-000
SEAL SET,DUST
SS; 2003-06-01~2005-03-01 |
45723-70B00-000 |
— | ||
| replacements | |||||
|
17
|
17
45723-70B01-000
Seal Set,dust
SS; 2003-06-01~2005-03-01 |
45723-70B01-000 |
— | ||
|
17
|
17
45700-70810-000 Seal Set,dustSS; 2003-06-01~2005-03-01 |
45700-70810-000 |
US $40.80 |
||
|
18
|
18
09401-27402-000 CLIPSS; 2003-06-01~2005-03-01 |
09401-27402-000 |
US $1.28 |
||
|
19
|
19
45261-77A10-000 BUSH,FR SUSPENSION CONTROLSS; 2003-06-01~2005-03-01 |
45261-77A10-000 |
from US $15.77 |
||
|
20
|
20
09100-10184-000 BOLT(10X40)SS; 2003-06-01~2005-03-01 |
09100-10184-000 |
from US $1.92 |
||
|
21
|
21
08321-01103-000
Washer
SS; 2003-06-01~2005-03-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end SS; 2003-06-01~2005-03-01 |
08321-0110B-000 |
from US $0.80 |
||
|
21
|
21
08321-0110A-000 WASHER,LOCKSS; 2003-06-01~2005-03-01 |
08321-0110A-000 |
from US $0.80 |
||
|
22
|
22
09117-10025-000
Bolt (10x89.5)
SS; 2003-06-01~2005-03-01 |
09117-10025-000 |
— | ||
| replacement | |||||
|
22
|
22
45215-72J10-000 BOLT,SPNSN ARM FR BUSHINGSS; 2003-06-01~2005-03-01 |
45215-72J10-000 |
from US $2.93 |
||
