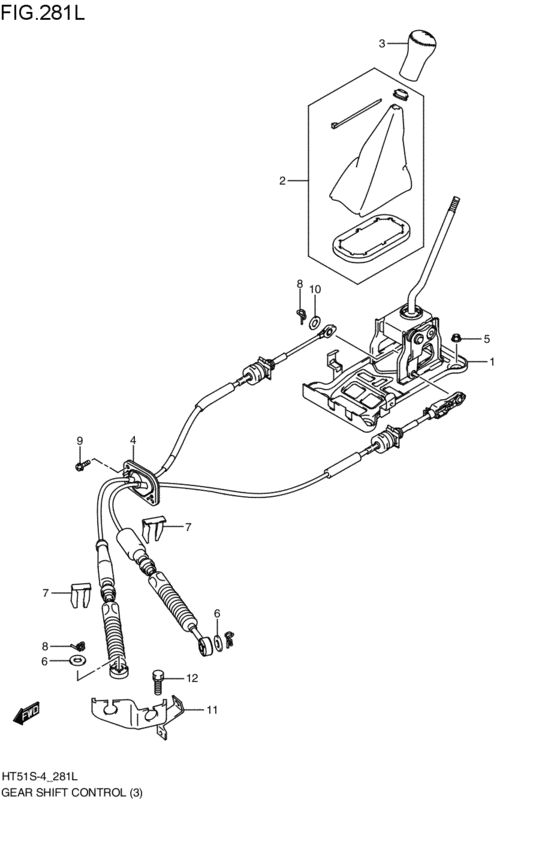

gearlever control (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-60J00-000
レバーサブアッシ,ギヤシフトコントロール
M15A; 2003-06-01~2005-03-01 |
28101-60J00-000 |
— | ||
| replacement | |||||
|
1
|
1
28101-60J02-000
LEVER ASSY,GR SHF CONT
M15A; 2003-06-01~2005-03-01 |
28101-60J02-000 |
— | ||
|
2
|
2
28130-60J00-000
BOOT ASSY,GEAR SHIFT CONTROL
M15A; 2003-06-01~2005-03-01 |
28130-60J00-000 |
— | ||
|
3
|
3
28160-60J00-NF8 KNOB,GEAR SHF CONT LEVERブラック; M15A; 2003-06-01~2005-03-01 |
28160-60J00-NF8 |
US $110.77 |
||
|
4
|
4
28300-60J00-000 CABLE ASSY,SHIFT&SELECT CONTM15A; 2003-06-01~2005-03-01 |
28300-60J00-000 |
US $226.55 |
||
|
5
|
5
08316-1008A-000 NUTNut, idle gear shaft M15A; 2003-06-01~2005-03-01 |
08316-1008A-000 |
from US $0.76 |
||
|
6
|
6
09160-08133-000
Washer
M15A; 2003-06-01~2005-03-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
6
|
6
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) M15A; 2003-06-01~2005-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
7
|
7
09383-19001-000 E RINGClip M15A; 2003-06-01~2005-03-01 |
09383-19001-000 |
from US $2.72 |
||
|
8
|
8
09385-08007-000 PIN,SNAPClip M15A; 2003-06-01~2005-03-01 |
09385-08007-000 |
from US $1.09 |
||
|
9
|
9
02162-0620A-000
Bolt
M15A; 2003-06-01~2005-03-01 |
02162-0620A-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0620C-000 SCREWM15A; 2003-06-01~2005-03-01 |
02162-0620C-000 |
from US $0.80 |
||
|
10
|
10
08322-01083-000
WASHER
M15A; 2003-06-01~2005-03-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHERM15A; 2003-06-01~2005-03-01 |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHERM15A; 2003-06-01~2005-03-01 |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
28390-60J01-000
BRACKET,T/M CONT CABLE
M15A; 2003-06-01~2005-03-01 |
28390-60J01-000 |
— | ||
|
12
|
12
01570-10253-000
ボルト
M15A; 2003-06-01~2005-03-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
12
|
12
01570-1025A-000 BoltM15A; 2003-06-01~2005-03-01 |
01570-1025A-000 |
US $1.12 |
||
