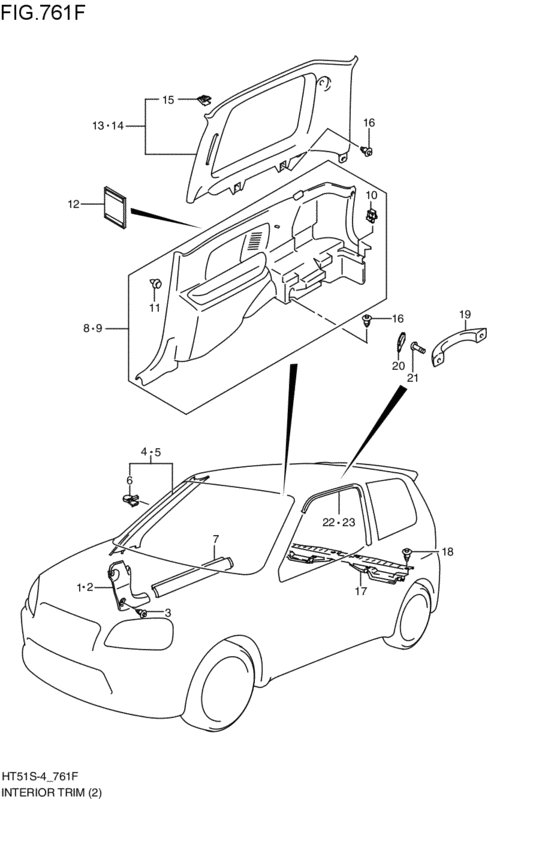

i trim interior (3DR; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76121-80G00-P4Z TRIM,DASH SIDE,Rグレ-; 3DR; 2003-06-01~2005-03-01 |
76121-80G00-P4Z |
US $17.59 |
||
|
2
|
2
76131-80G00-P4Z TRIM,DASH SIDE,Lグレ-; 3DR; 2003-06-01~2005-03-01 |
76131-80G00-P4Z |
US $17.59 |
||
|
3
|
3
09409-07308-P4Z CLIP(GRAY)グレ-; 3DR; 2003-06-01~2005-03-01 |
09409-07308-P4Z |
US $1.76 |
||
|
4
|
4
76140-80G01-6GS TRIM,FR PILLAR INNER,Rグレ-; 3DR; 2003-06-01~2005-03-01 |
76140-80G01-6GS |
US $31.28 |
||
|
5
|
5
76150-80G01-6GS TRIM,FR PILLAR INNER,Lグレ-; 3DR; 2003-06-01~2005-03-01 |
76150-80G01-6GS |
US $31.28 |
||
|
6
|
6
09409-06324-000 CLIP3DR; 2003-06-01~2005-03-01 |
09409-06324-000 |
from US $1.12 |
||
|
7
|
7
76161-76G00-P4Z SCUFF,SIDE SILLグレ-; 3DR; 2003-06-01~2005-03-01 |
76161-76G00-P4Z |
US $28.70 |
||
|
8
|
8
76210-80G10-NL3
TRIM,QTR INNER,R(BLACK/GRAY)
ブラック/グレー; 3DR; 2003-06-01~2005-03-01 |
76210-80G10-NL3 |
— | ||
|
9
|
9
76220-80G10-NL3 TRIM,QTR INNER,L(BLACK/GRAY)ブラック/グレー; 3DR; 2003-06-01~2005-03-01 |
76220-80G10-NL3 |
US $314.64 |
||
|
10
|
10
76215-74G00-000 HOLDER,LUG LID3DR; 2003-06-01~2005-03-01 |
76215-74G00-000 |
from US $1.60 |
||
|
11
|
11
09409-08320-000 CLIP3DR; 2003-06-01~2005-03-01 |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
76219-74G00-000
SILENCER,QTR INNER TRIM N0.2
3DR; 2003-06-01~2005-03-01 |
76219-74G00-000 |
— | ||
|
13
|
13
76251-74G10-6GS
TRIM,QTR WINDOW,R
グレ-; 3DR; 2003-06-01~2005-03-01 |
76251-74G10-6GS |
— | ||
|
14
|
14
76261-74G10-6GS
TRIM,QTR WINDOW,L
グレ-; 3DR; 2003-06-01~2005-03-01 |
76261-74G10-6GS |
— | ||
|
15
|
15
09409-10308-000 CLIPスチール; 3DR; 2003-06-01~2005-03-01 |
09409-10308-000 |
US $1.60 |
||
|
16
|
16
09409-07308-P4Z CLIP(GRAY)グレ-; 3DR; 2003-06-01~2005-03-01 |
09409-07308-P4Z |
US $1.76 |
||
|
17
|
17
76271-80G00-P4Z TRIM,TAIL END MEMBERグレ-; 3DR; 2003-06-01~2005-03-01 |
76271-80G00-P4Z |
US $41.58 |
||
|
18
|
18
09409-07308-P4Z CLIP(GRAY)グレ-; 3DR; 2003-06-01~2005-03-01 |
09409-07308-P4Z |
US $1.76 |
||
|
19
|
19
76411-50E00-6GS GRIP,ASSTグレ-; 3DR; 2003-06-01~2005-03-01 |
76411-50E00-6GS |
US $13.62 |
||
|
20
|
20
76412-50E00-6GS CAP,ASSISTANT GRIPグレ-; 3DR; 2003-06-01~2005-03-01 |
76412-50E00-6GS |
US $2.54 |
||
|
21
|
21
09139-06103-000 SCREW(6X16)3DR; 2003-06-01~2005-03-01 |
09139-06103-000 |
US $16.20 |
||
|
22
|
22
76291-80G00-000
TRIM,FR DOOR OPENING
3DR; 2003-06-01~2005-03-01 |
76291-80G00-000 |
— | ||
|
23
|
23
76293-80G00-000 TRIM,FR DOOR OPENING,L3DR; 2003-06-01~2005-03-01 |
76293-80G00-000 |
US $43.79 |
