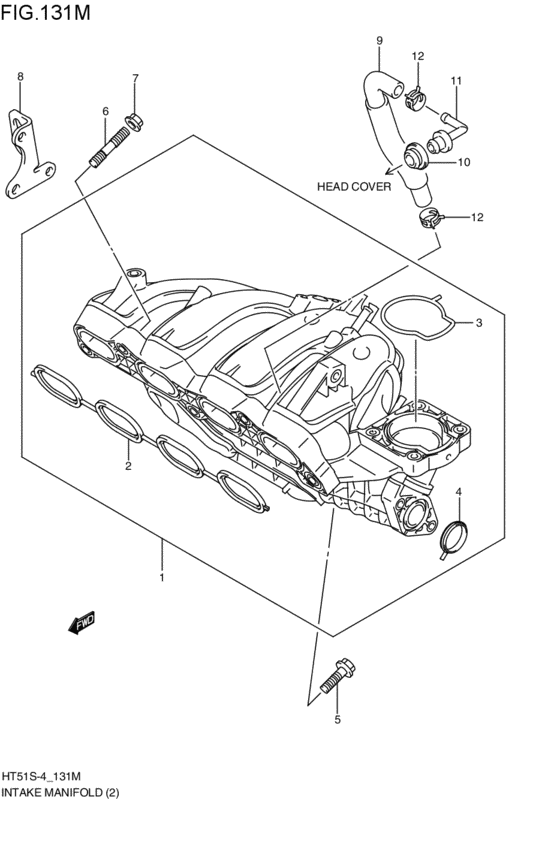

intake manifold (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-86G00-000 MANIFOLD,INTKM15A; 2003-06-01~2005-03-01 |
13110-86G00-000 |
US $353.28 |
||
|
2
|
2
13119-86G00-000 GASKET,INTK MANFM15A; 2003-06-01~2005-03-01 |
13119-86G00-000 |
from US $12.31 |
||
|
3
|
3
13421-86G00-000 GASKET,THROTTLE BODYM15A; 2003-06-01~2005-03-01 |
13421-86G00-000 |
from US $6.32 |
||
|
4
|
4
18534-86G00-000 GASKET,EGR PIPEM15A; 2003-06-01~2005-03-01 |
18534-86G00-000 |
from US $5.45 |
||
|
5
|
5
01550-08353-000
Bolt, rear
M15A; 2003-06-01~2005-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0835B-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
5
|
5
01550-0835A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
6
|
6
09108-08266-000 BOLT,STUDM15A; 2003-06-01~2005-03-01 |
09108-08266-000 |
US $1.92 |
||
|
7
|
7
08316-10083-000
Nut
M15A; 2003-06-01~2005-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUTM15A; 2003-06-01~2005-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
11851-86G00-000 HOOK,ENGINEM15A; 2003-06-01~2005-03-01 |
11851-86G00-000 |
US $3.75 |
||
|
9
|
9
11193-60J00-000 HOSE,PCVM15A; 2003-06-01~2005-03-01 |
11193-60J00-000 |
from US $10.28 |
||
|
10
|
10
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve M15A; 2003-06-01~2005-03-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
10
|
10
11198-98L00-000 Seal,pcv ValveM15A; 2003-06-01~2005-03-01 |
11198-98L00-000 |
from US $2.74 |
||
|
11
|
11
18118-54D00-000 VALVE,PCVM15A; 2003-06-01~2005-03-01 |
18118-54D00-000 |
from US $15.39 |
||
|
12
|
12
09401-13414-000 CLIPClip, pcv hose M15A; 2003-06-01~2005-03-01 |
09401-13414-000 |
from US $1.60 |
||
