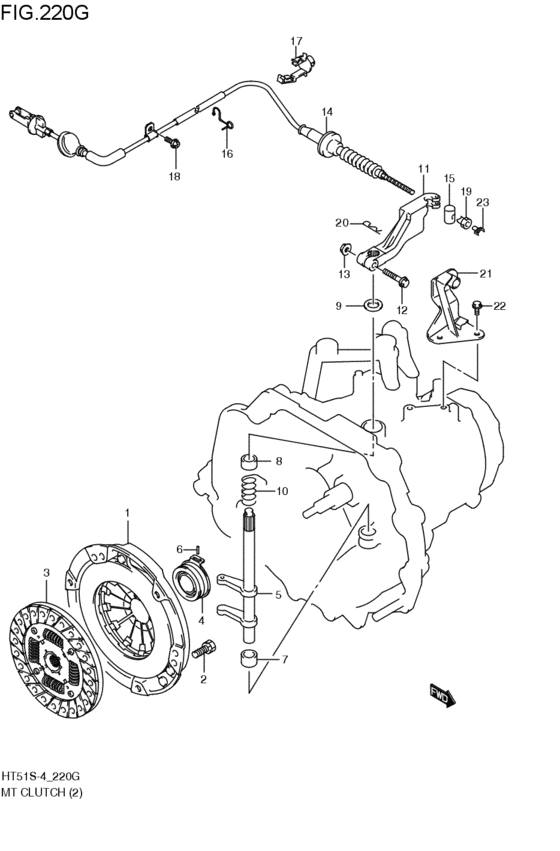

mt - clutch (M15A:MT; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-60J00-000 COVER ASSY,CLUTCHM15A:MT; 2003-06-01~2005-03-01 |
22100-60J00-000 |
US $156 |
||
|
2
|
2
09117-08096-000 BOLT(8X16)M15A:MT; 2003-06-01~2005-03-01 |
09117-08096-000 |
from US $1.28 |
||
|
3
|
3
22400-60J00-000 DISC,CLUTCHM15A:MT; 2003-06-01~2005-03-01 |
22400-60J00-000 |
US $156.80 |
||
|
4
|
4
23265-65G00-000 BEARING,CLUTCH RELEASEM15A:MT; 2003-06-01~2005-03-01 |
23265-65G00-000 |
from US $50.11 |
||
|
5
|
5
23260-63J20-000 SHAFT,CLUTCH RELEASEM15A:MT; 2004-06-01~2005-03-01 |
23260-63J20-000 |
US $52 |
||
|
5
|
5
23260-86G40-000 SHAFT,CLUTCH RELEASEM15A:MT; 2003-06-01~2004-06-01 |
23260-86G40-000 |
US $226.32 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock M15A:MT; 2003-06-01~2005-03-01 |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09300-16010-000 BUSH(16X24X19)M15A:MT; 2003-06-01~2005-03-01 |
09300-16010-000 |
from US $3.65 |
||
|
8
|
8
09300-16009-000 BUSH(16X20X20)M15A:MT; 2003-06-01~2005-03-01 |
09300-16009-000 |
US $2.72 |
||
|
9
|
9
09284-16004-000 SEAL,OIL(16X24X5)M15A:MT; 2003-06-01~2005-03-01 |
09284-16004-000 |
US $2.72 |
||
|
10
|
10
23269-60J00-000 SPRING,RELEASE SHAFT RETURNM15A:MT; 2003-06-01~2005-03-01 |
23269-60J00-000 |
US $4.27 |
||
|
11
|
11
23266-83E00-000 ARM,CLUTCH RELEASEM15A:MT; 2003-06-01~2004-06-01 |
23266-83E00-000 |
US $72.96 |
||
|
11
|
11
23266-83E20-000 ARM,CLUTCH RELEASEM15A:MT; 2004-06-01~2005-03-01 |
23266-83E20-000 |
US $40.85 |
||
|
12
|
12
01550-08303-000
Bolt
M15A:MT; 2004-06-01~2005-03-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0830B-000 BoltM15A:MT; 2004-06-01~2005-03-01 |
01550-0830B-000 |
from US $1.06 |
||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover M15A:MT; 2004-06-01~2005-03-01 |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
01550-08403-000
Bolt
M15A:MT; 2003-06-01~2004-06-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0840B-000 BoltM15A:MT; 2003-06-01~2004-06-01 |
01550-0840B-000 |
from US $1.12 |
||
|
12
|
12
01550-0840A-000 BOLTM15A:MT; 2003-06-01~2004-06-01 |
01550-0840A-000 |
from US $1.12 |
||
|
13
|
13
08316-1008A-000 NUTNut, idle gear shaft M15A:MT; 2003-06-01~2005-03-01 |
08316-1008A-000 |
from US $0.76 |
||
|
14
|
14
23710-60J20-000 CABLE ASSY,CLUTCHM15A:MT; 2003-06-01~2005-03-01 |
23710-60J20-000 |
from US $62.03 |
||
|
15
|
15
09209-13018-000 PIN(13X18)M15A:MT; 2003-06-01~2005-03-01 |
09209-13018-000 |
from US $1.82 |
||
|
16
|
16
23915-60J00-000 CLAMP,CLUTCH CABLE NO.2,RM15A:MT; 2003-06-01~2005-03-01 |
23915-60J00-000 |
US $4.38 |
||
|
17
|
17
09403-17305-000 CLAMPM15A:MT; 2003-06-01~2005-03-01 |
09403-17305-000 |
US $27.20 |
||
|
18
|
18
02162-06123-000
Bolt (6x12)
M15A:MT; 2003-06-01~2005-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt M15A:MT; 2003-06-01~2005-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket M15A:MT; 2003-06-01~2005-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
09150-06014-000
Nut
M15A:MT; 2003-06-01~2005-03-01 |
09150-06014-000 |
— | ||
| replacement | |||||
|
19
|
19
09150-06010-000 NUTM15A:MT; 2003-06-01~2005-03-01 |
09150-06010-000 |
from US $1.44 |
||
|
20
|
20
09385-10005-000 CLIPClip M15A:MT; 2003-06-01~2004-06-01 |
09385-10005-000 |
from US $2.28 |
||
|
21
|
21
23910-86G40-000
BRACKET,CLUTCH CABLE
M15A:MT; 2003-06-01~2005-03-01 |
23910-86G40-000 |
— | ||
|
22
|
22
09103-08334-000 BOLT(8X16)M15A:MT; 2003-06-01~2005-03-01 |
09103-08334-000 |
from US $6.56 |
||
|
23
|
23
23922-76G00-000 CAP,CLUTCH CABLE JOINT LOCKM15A:MT; 2003-06-01~2005-03-01 |
23922-76G00-000 |
US $1.25 |
||
