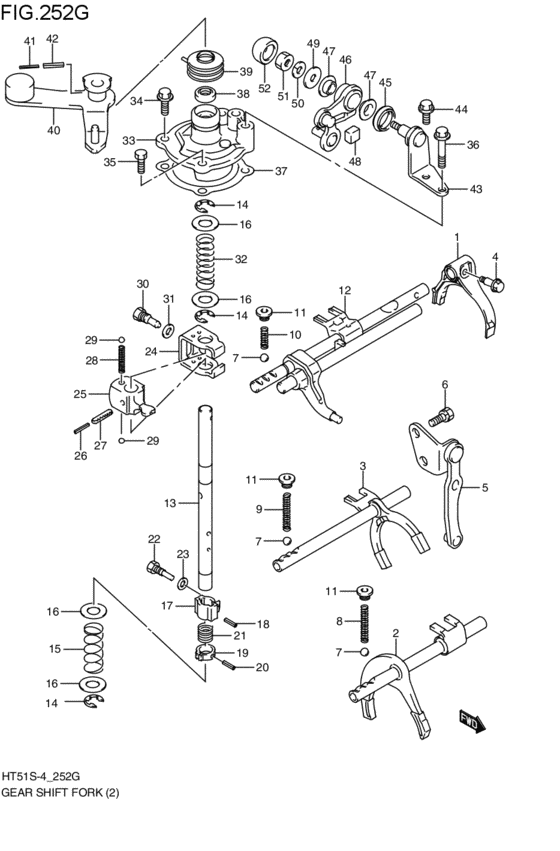

mt - gearlever fork (M15A:MT; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25231-54G00-000
フォーク,フィフスギヤシフト
M15A:MT; 2003-06-01~2005-03-01 |
25231-54G00-000 |
— | ||
| replacement | |||||
|
1
|
1
25231-54G01-000 FORK,5TH GEAR SHIFTM15A:MT; 2003-06-01~2005-03-01 |
25231-54G01-000 |
US $48.64 |
||
|
2
|
2
25401-55G00-000
Shaft,low speed gear shf
M15A:MT; 2003-06-01~2005-03-01 |
25401-55G00-000 |
— | ||
| replacement | |||||
|
2
|
2
25401-51KA0-000 SHAFT,LOW SPEED GEAR SHFM15A:MT; 2003-06-01~2005-03-01 |
25401-51KA0-000 |
US $96.42 |
||
|
3
|
3
25402-55G00-000
Shaft,high speed gear shf
M15A:MT; 2003-06-01~2005-03-01 |
25402-55G00-000 |
— | ||
| replacement | |||||
|
3
|
3
25402-51KA0-000 SHAFT,HIGH SPEED GEAR SHFM15A:MT; 2003-06-01~2005-03-01 |
25402-51KA0-000 |
US $103.04 |
||
|
4
|
4
25291-70C00-000 BOLT,LOW&HIGH SPEED FORKM15A:MT; 2003-06-01~2005-03-01 |
25291-70C00-000 |
US $1.44 |
||
|
5
|
5
25460-70C00-000 LEVER,REV GR SHFM15A:MT; 2003-06-01~2005-03-01 |
25460-70C00-000 |
US $14.90 |
||
|
6
|
6
01570-08203-000
Bolt
M15A:MT; 2003-06-01~2005-03-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01570-0820B-000 BoltM15A:MT; 2003-06-01~2005-03-01 |
01570-0820B-000 |
US $17.30 |
||
|
6
|
6
01570-0820A-000 BOLTM15A:MT; 2003-06-01~2005-03-01 |
01570-0820A-000 |
from US $0.96 |
||
|
7
|
7
06111-12004-000 BALLM15A:MT; 2003-06-01~2005-03-01 |
06111-12004-000 |
from US $1.12 |
||
|
8
|
8
25415-70C01-000 SPRING,LOW SPEED LOCATINGM15A:MT; 2003-06-01~2005-03-01 |
25415-70C01-000 |
US $1.76 |
||
|
9
|
9
25425-70C02-000 SPRING,HIGH SPEED LOCATINGM15A:MT; 2003-06-01~2005-03-01 |
25425-70C02-000 |
US $1.76 |
||
|
10
|
10
25435-70C02-000 SPRING,5TH SPEED LOCATINGM15A:MT; 2003-06-01~2005-03-01 |
25435-70C02-000 |
US $1.60 |
||
|
11
|
11
25416-70C00-000 BOLT,GR SHF LOCATINGM15A:MT; 2003-06-01~2005-03-01 |
25416-70C00-000 |
US $2.24 |
||
|
12
|
12
25403-55G00-000
シャフト,フィフス/リバースギヤシフト
M15A:MT; 2003-06-01~2005-03-01 |
25403-55G00-000 |
— | ||
| replacement | |||||
|
12
|
12
25403-51KA0-000 SHAFT,5TH&REV GEAR SHIFTM15A:MT; 2003-06-01~2005-03-01 |
25403-51KA0-000 |
US $114.45 |
||
|
13
|
13
25571-55G00-000 SHAFT,GEAR SHIFT&SELECTM15A:MT; 2003-06-01~2005-03-01 |
25571-55G00-000 |
US $26.68 |
||
|
14
|
14
08332-11126-000
E ring
M15A:MT; 2003-06-01~2005-03-01 |
08332-11126-000 |
— | ||
| replacement | |||||
|
14
|
14
08332-1112A-000 E RINGM15A:MT; 2003-06-01~2005-03-01 |
08332-1112A-000 |
from US $0.96 |
||
|
15
|
15
25576-59J00-000 SPRING,LOW SPEED SELECTM15A:MT; 2003-06-01~2005-03-01 |
25576-59J00-000 |
US $4.48 |
||
|
16
|
16
08212-14301-000 WASHERM15A:MT; 2003-06-01~2005-03-01 |
08212-14301-000 |
from US $0.79 |
||
|
17
|
17
25581-50F00-000
Cam,5th & rev
M15A:MT; 2003-06-01~2005-03-01 |
25581-50F00-000 |
— | ||
| replacement | |||||
|
17
|
17
25581-51K01-000 CAM,5TH&REV GRAR SHIFTM15A:MT; 2003-06-01~2005-03-01 |
25581-51K01-000 |
US $16.80 |
||
|
18
|
18
09205-04015-000 PIN,SPRING(4.5X20)M15A:MT; 2003-06-01~2005-03-01 |
09205-04015-000 |
US $35.30 |
||
|
19
|
19
25582-60B51-000 GUIDE,5TH&REV GR SHFM15A:MT; 2003-06-01~2005-03-01 |
25582-60B51-000 |
US $6.72 |
||
|
20
|
20
09205-03020-000 PIN,SPRING(3X22)M15A:MT; 2003-06-01~2005-03-01 |
09205-03020-000 |
US $10.30 |
||
|
21
|
21
25583-60B50-000 SPRING,CAM GUIDE RETURNM15A:MT; 2003-06-01~2005-03-01 |
25583-60B50-000 |
US $2.08 |
||
|
22
|
22
25584-70C00-000
Bolt,5th to rev guide
M15A:MT; 2003-06-01~2005-03-01 |
25584-70C00-000 |
— | ||
| replacements | |||||
|
22
|
22
25584-51KA0-000
BOLT,5TH TO REV INTLK GUIDE
M15A:MT; 2003-06-01~2005-03-01 |
25584-51KA0-000 |
— | ||
|
22
|
22
25584-51KA1-000 Bolt,5Th To Rev Intlk GuideM15A:MT; 2003-06-01~2005-03-01 |
25584-51KA1-000 |
US $2.90 |
||
|
23
|
23
08322-01083-000
WASHER
M15A:MT; 2003-06-01~2005-03-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
23
|
23
08322-0108B-000 WASHERM15A:MT; 2003-06-01~2005-03-01 |
08322-0108B-000 |
from US $0.80 |
||
|
23
|
23
08322-0108A-000 WASHERM15A:MT; 2003-06-01~2005-03-01 |
08322-0108A-000 |
from US $0.80 |
||
|
24
|
24
25311-59J00-000
Plate,gear shift interlock
M15A:MT; 2003-06-01~2005-03-01 |
25311-59J00-000 |
— | ||
| replacement | |||||
|
24
|
24
25311-59J01-000 PLATE,GEAR SHF INTERLOCKM15A:MT; 2003-06-01~2005-03-01 |
25311-59J01-000 |
US $10.52 |
||
|
25
|
25
25541-86G40-000
レバー,ギヤシフト/セレクト
M15A:MT; 2003-06-01~2005-03-01 |
25541-86G40-000 |
— | ||
| replacement | |||||
|
25
|
25
25541-79J20-000 LEVER,GEAR SHF&SLTM15A:MT; 2003-06-01~2005-03-01 |
25541-79J20-000 |
US $60 |
||
|
26
|
26
09205-03016-000 PIN,SPRING(3.5X28)M15A:MT; 2003-06-01~2005-03-01 |
09205-03016-000 |
US $11 |
||
|
27
|
27
09205-06004-000 PIN,SPRING(6X28)M15A:MT; 2003-06-01~2005-03-01 |
09205-06004-000 |
US $11.40 |
||
|
28
|
28
25312-59J00-000 SPRING,GEAR SHIFT INTERLOCKM15A:MT; 2003-06-01~2005-03-01 |
25312-59J00-000 |
US $2.24 |
||
|
29
|
29
06111-07004-000 BALLM15A:MT; 2003-06-01~2005-03-01 |
06111-07004-000 |
from US $0.76 |
||
|
30
|
30
25321-86G00-000
BOLT,GEAR SHF INTERLOCK
M15A:MT; 2003-06-01~2005-03-01 |
25321-86G00-000 |
— | ||
| replacement | |||||
|
30
|
30
25321-74PE0-000 BOLT,GEAR SHF INTERLOCKM15A:MT; 2003-06-01~2005-03-01 |
25321-74PE0-000 |
US $3.31 |
||
|
31
|
31
08322-01103-000
Washer
M15A:MT; 2003-06-01~2005-03-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
31
|
31
08322-0110B-000 WASHERWasher, knuckle end M15A:MT; 2003-06-01~2005-03-01 |
08322-0110B-000 |
from US $0.76 |
||
|
31
|
31
08322-0110A-000 WASHERWasher, knuckle end M15A:MT; 2003-06-01~2005-03-01 |
08322-0110A-000 |
from US $0.80 |
||
|
32
|
32
25576-83E00-000 SPRING,LOW SPEED SELECTM15A:MT; 2003-06-01~2005-03-01 |
25576-83E00-000 |
US $3.28 |
||
|
33
|
33
25573-86G41-000 CASE,GEAR SHF GUIDEM15A:MT; 2003-06-01~2005-03-01 |
25573-86G41-000 |
US $32.94 |
||
|
34
|
34
01550-08253-000
Bolt, rear
M15A:MT; 2003-06-01~2005-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0825B-000 BOLTM15A:MT; 2003-06-01~2005-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
34
|
34
01550-0825A-000 BOLTM15A:MT; 2003-06-01~2005-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
35
|
35
09103-08152-000 BoltM15A:MT; 2003-06-01~2005-03-01 |
09103-08152-000 |
from US $1.93 |
||
| replacement | |||||
|
35
|
35
09103-08419-000 BOLT(8X25)M15A:MT; 2003-06-01~2005-03-01 |
09103-08419-000 |
from US $2.08 |
||
|
36
|
36
09103-08366-000 BOLT(8X45)M15A:MT; 2003-06-01~2005-03-01 |
09103-08366-000 |
US $1.68 |
||
|
37
|
37
25574-74B00-000 GASKET,GEAR SHF GUIDE CASEM15A:MT; 2003-06-01~2005-03-01 |
25574-74B00-000 |
US $4.42 |
||
|
38
|
38
09283-14006-000 SEAL,OIL(14X22X6)M15A:MT; 2003-06-01~2005-03-01 |
09283-14006-000 |
from US $3.74 |
||
|
39
|
39
25651-74B00-000 BOOT,SHIFT&SELECT SFT OILM15A:MT; 2003-06-01~2005-03-01 |
25651-74B00-000 |
US $6.56 |
||
|
40
|
40
25610-60J00-000 LEVER,SHIFT CABLEM15A:MT; 2003-06-01~2005-03-01 |
25610-60J00-000 |
US $43.79 |
||
|
41
|
41
09205-03037-000 PIN,SPRING(3X25)M15A:MT; 2003-06-01~2005-03-01 |
09205-03037-000 |
from US $0.81 |
||
|
42
|
42
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) M15A:MT; 2003-06-01~2005-03-01 |
09205-06007-000 |
from US $1.60 |
||
|
43
|
43
25630-70C01-000 BRACKET,SELECT LEVERM15A:MT; 2003-06-01~2005-03-01 |
25630-70C01-000 |
US $26.86 |
||
|
44
|
44
01550-08203-000
Bolt
M15A:MT; 2003-06-01~2005-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0820B-000 BoltM15A:MT; 2003-06-01~2005-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
44
|
44
01550-0820A-000 BOLTBolt, funnel bracket M15A:MT; 2003-06-01~2005-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
45
|
45
25624-74B00-000 BOOT,SEL LEVER INSIDEM15A:MT; 2003-06-01~2005-03-01 |
25624-74B00-000 |
US $5.28 |
||
|
46
|
46
25620-70C00-000 LEVER,SELECT CABLEM15A:MT; 2003-06-01~2005-03-01 |
25620-70C00-000 |
US $33.86 |
||
|
47
|
47
25558-74B01-000 BUSH,SEL LEVER BOSSM15A:MT; 2003-06-01~2005-03-01 |
25558-74B01-000 |
US $1.60 |
||
|
48
|
48
25559-50F00-000 BUSH,SELECT LEVER SHAFTM15A:MT; 2003-06-01~2005-03-01 |
25559-50F00-000 |
US $5.76 |
||
|
49
|
49
09160-08133-000
Washer
M15A:MT; 2003-06-01~2005-03-01 |
09160-08133-000 |
— | ||
| replacement | |||||
|
49
|
49
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) M15A:MT; 2003-06-01~2005-03-01 |
09160-08151-000 |
from US $0.91 |
||
|
50
|
50
08321-01083-000
Lock washer
M15A:MT; 2003-06-01~2005-03-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
50
|
50
08321-0108B-000 WASHER,LOCKM15A:MT; 2003-06-01~2005-03-01 |
08321-0108B-000 |
from US $0.76 |
||
|
50
|
50
08321-0108A-000 WASHER,LOCKM15A:MT; 2003-06-01~2005-03-01 |
08321-0108A-000 |
from US $0.80 |
||
|
51
|
51
08310-00083-000
Nut
M15A:MT; 2003-06-01~2005-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
51
|
51
08310-0008B-000 NUTM15A:MT; 2003-06-01~2005-03-01 |
08310-0008B-000 |
from US $0.80 |
||
|
51
|
51
08310-0008A-000 NUTNut, bead stopper M15A:MT; 2003-06-01~2005-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
52
|
52
25625-74B00-000 BOOT,SEL LEVER OUTSIDEM15A:MT; 2003-06-01~2005-03-01 |
25625-74B00-000 |
US $5.28 |
||
