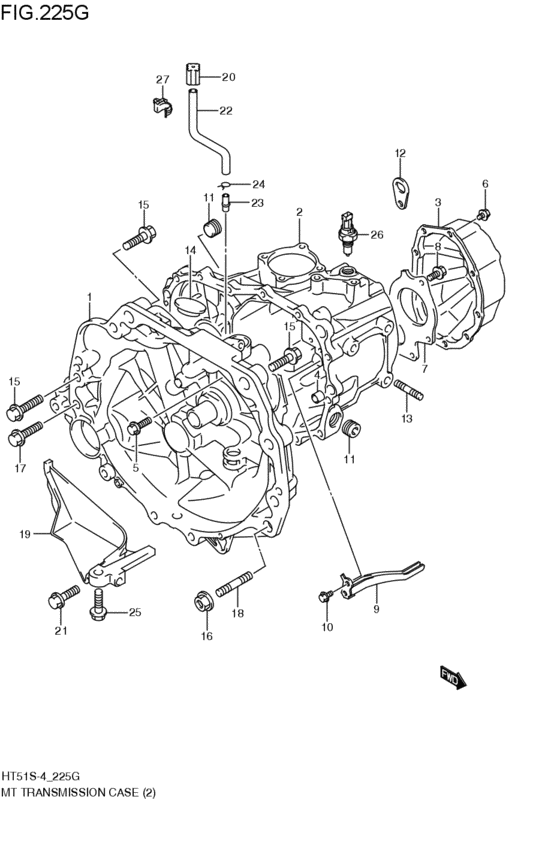

mt - transmission case (M15A:MT; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-86G40-000 CASE,T/M,RM15A:MT; 2003-06-01~2005-03-01 |
24711-86G40-000 |
US $638.40 |
||
|
2
|
2
24721-63J20-000
Case,transaxle left
M15A:MT; 2003-06-01~2005-03-01 |
24721-63J20-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-63J21-000 CASE,TRANSAXLE,LM15A:MT; 2003-06-01~2005-03-01 |
24721-63J21-000 |
US $450.56 |
||
|
3
|
3
24730-54G20-000
Cover,transaxle side
M15A:MT; 2003-06-01~2005-03-01 |
24730-54G20-000 |
— | ||
| replacement | |||||
|
3
|
3
24730-54G21-000 COVER,TRANSAXLE SIDEM15A:MT; 2003-06-01~2005-03-01 |
24730-54G21-000 |
US $41.80 |
||
|
4
|
4
04211-13149-000 PINM15A:MT; 2003-06-01~2005-03-01 |
04211-13149-000 |
from US $1.28 |
||
|
5
|
5
01550-08403-000
Bolt
M15A:MT; 2003-06-01~2005-03-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0840B-000 BoltM15A:MT; 2003-06-01~2005-03-01 |
01550-0840B-000 |
from US $1.12 |
||
|
5
|
5
01550-0840A-000 BOLTM15A:MT; 2003-06-01~2005-03-01 |
01550-0840A-000 |
from US $1.12 |
||
|
6
|
6
09135-06022-000
Bolt
M15A:MT; 2003-06-01~2005-03-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
6
|
6
09135-06027-000 BOLT(6X12)M15A:MT; 2003-06-01~2005-03-01 |
09135-06027-000 |
from US $1.12 |
||
|
7
|
7
24725-59J20-000 PLATE,LEFT CASEM15A:MT; 2003-09-01~2005-03-01 |
24725-59J20-000 |
US $26.68 |
||
|
7
|
7
24725-70C01-000
プレート,レフトケース
M15A:MT; 2003-06-01~2003-09-01 |
24725-70C01-000 |
— | ||
| replacement | |||||
|
7
|
7
24725-59J20-000 PLATE,LEFT CASEM15A:MT; 2003-06-01~2003-09-01 |
24725-59J20-000 |
US $26.68 |
||
|
8
|
8
09117-08050-000 BOLT(8X20)M15A:MT; 2003-06-01~2005-03-01 |
09117-08050-000 |
US $2.24 |
||
|
9
|
9
24810-70C00-000 GUTTER,INPUT OILM15A:MT; 2003-06-01~2005-03-01 |
24810-70C00-000 |
US $5.30 |
||
|
10
|
10
09103-06083-000
Bolt (6x12)
M15A:MT; 2003-06-01~2005-03-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
10
|
10
09103-06285-000 BOLT(6X12)Bolt (6x12) M15A:MT; 2003-06-01~2005-03-01 |
09103-06285-000 |
from US $1.28 |
||
|
11
|
11
09246-16010-000 PLUGM15A:MT; 2003-06-01~2005-03-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
11
|
11
09246-16021-000 Plug,t/m Oil DrainM15A:MT; 2003-06-01~2005-03-01 |
09246-16021-000 |
from US $4.01 |
||
|
12
|
12
11851-50F00-000 HOOK,ENGINEM15A:MT; 2003-06-01~2005-03-01 |
11851-50F00-000 |
US $3.20 |
||
|
13
|
13
09108-10143-000 BOLT,STUDM15A:MT; 2003-06-01~2005-03-01 |
09108-10143-000 |
US $25.40 |
||
|
14
|
14
09250-26005-000 CAP(OD:36)M15A:MT; 2003-06-01~2005-03-01 |
09250-26005-000 |
US $6.56 |
||
|
15
|
15
01550-12553-000
ボルト
M15A:MT; 2003-06-01~2005-03-01 |
01550-12553-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1255A-000 BoltM15A:MT; 2003-06-01~2005-03-01 |
01550-1255A-000 |
US $21.70 |
||
|
16
|
16
08316-10123-000
Nut
M15A:MT; 2003-06-01~2005-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1012A-000 NUTM15A:MT; 2003-06-01~2005-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
17
|
17
09103-12060-000 BOLT(12X50)M15A:MT; 2003-06-01~2005-03-01 |
09103-12060-000 |
US $27.60 |
||
|
18
|
18
09108-12012-000 BOLT,STUDM15A:MT; 2003-06-01~2005-03-01 |
09108-12012-000 |
from US $2.50 |
||
|
19
|
19
24791-86G00-000
Stiffener,t/m case lower
M15A:MT; 2003-06-01~2005-03-01 |
24791-86G00-000 |
— | ||
|
20
|
20
27991-65D01-000 PLUG,BREATHERM15A:MT; 2003-06-01~2005-03-01 |
27991-65D01-000 |
from US $1.92 |
||
|
21
|
21
09103-10398-000 BOLT(10X35)M15A:MT; 2003-06-01~2005-03-01 |
09103-10398-000 |
US $26.10 |
||
|
22
|
22
24825-86G40-000
HOSE,BREATHER
M15A:MT; 2003-06-01~2005-03-01 |
24825-86G40-000 |
— | ||
|
23
|
23
09364-08004-000 UNIONM15A:MT; 2003-06-01~2005-03-01 |
09364-08004-000 |
US $14.40 |
||
|
24
|
24
09401-11403-000 CLIPClip M15A:MT; 2003-06-01~2005-03-01 |
09401-11403-000 |
from US $1.44 |
||
|
25
|
25
01550-10353-000
Bolt
M15A:MT; 2003-06-01~2005-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1035A-000 BOLTBolt, fr fork upper M15A:MT; 2003-06-01~2005-03-01 |
01550-1035A-000 |
from US $5.68 |
||
|
26
|
26
37610-76G10-000 SWITCH ASSY,BACK UPM15A:MT; 2003-06-01~2005-03-01 |
37610-76G10-000 |
US $17.49 |
||
|
27
|
27
09403-11314-000 CLAMPM15A:MT; 2003-06-01~2005-03-01 |
09403-11314-000 |
from US $5.20 |
||
