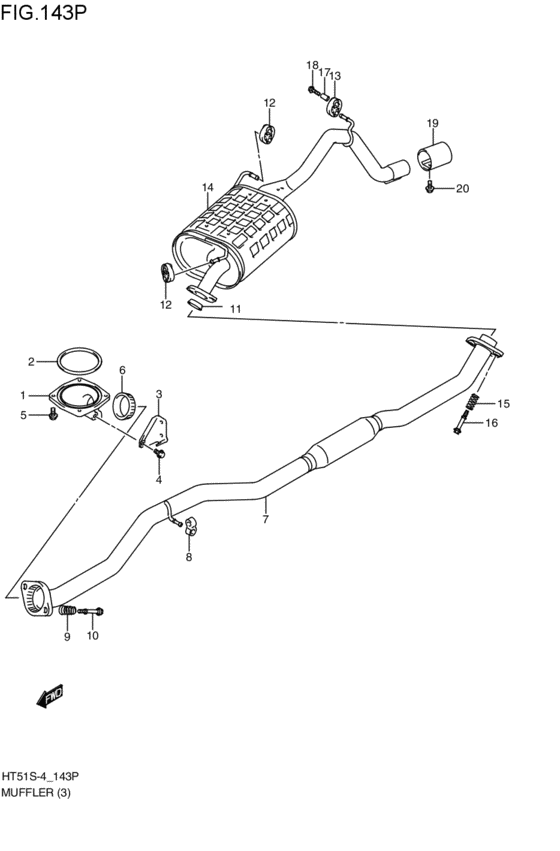

muffler (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14137-70H00-000 PIPE,CTLST OUTLETM15A; 2003-06-01~2005-03-01 |
14137-70H00-000 |
US $281.60 |
||
|
2
|
2
14181-70H00-000 GASKET,EXH MANFM15A; 2003-06-01~2005-03-01 |
14181-70H00-000 |
from US $9.47 |
||
|
3
|
3
14271-70H00-000 STIFFENER,EXH MANFM15A; 2003-06-01~2005-03-01 |
14271-70H00-000 |
US $14.94 |
||
|
4
|
4
09103-10324-000 BOLT(10X20)M15A; 2003-06-01~2005-03-01 |
09103-10324-000 |
from US $2.24 |
||
|
5
|
5
09103-10324-000 BOLT(10X20)M15A; 2003-06-01~2005-03-01 |
09103-10324-000 |
from US $2.24 |
||
|
6
|
6
14183-65D00-000 RING,SEAL EXH PIPEM15A; 2003-06-01~2005-03-01 |
14183-65D00-000 |
US $20.80 |
||
|
7
|
7
14250-70H00-000 PIPE,EXH NO.2M15A; 2003-06-01~2005-03-01 |
14250-70H00-000 |
US $432.96 |
||
|
8
|
8
14281-71C01-000 MOUNTING,MUFM15A; 2003-06-01~2005-03-01 |
14281-71C01-000 |
from US $7.49 |
||
|
9
|
9
14492-67D00-000 SPRING,EXH PIPEM15A; 2003-06-01~2005-03-01 |
14492-67D00-000 |
from US $5.69 |
||
|
10
|
10
09119-10073-000 BOLT(10X65)M15A; 2003-06-01~2005-03-01 |
09119-10073-000 |
from US $5.76 |
||
|
11
|
11
14183-76A00-000 RING,SEAL EXH PIPEM15A; 2003-06-01~2005-03-01 |
14183-76A00-000 |
from US $11.57 |
||
|
12
|
12
14281-70H00-000
マウンチング,マフラ
M15A; 2003-06-01~2005-03-01 |
14281-70H00-000 |
— | ||
| replacement | |||||
|
12
|
12
14281-80JA0-000 MOUNTING,MUFM15A; 2003-06-01~2005-03-01 |
14281-80JA0-000 |
from US $4.68 |
||
|
13
|
13
14281-80G00-000 MOUNTING,MUFM15A; 2003-06-01~2005-03-01 |
14281-80G00-000 |
US $12.64 |
||
|
14
|
14
14300-60J00-000
マフラ
M15A; 2003-06-01~2005-03-01 |
14300-60J00-000 |
— | ||
| replacement | |||||
|
14
|
14
14300-60J0V-000 MUFFLERM15A; 2003-06-01~2005-03-01 |
14300-60J0V-000 |
US $329.36 |
||
|
15
|
15
14492-67D00-000 SPRING,EXH PIPEM15A; 2003-06-01~2005-03-01 |
14492-67D00-000 |
from US $5.69 |
||
|
16
|
16
09119-10073-000 BOLT(10X65)M15A; 2003-06-01~2005-03-01 |
09119-10073-000 |
from US $5.76 |
||
|
17
|
17
09180-08057-000
Spacer
M15A; 2003-06-01~2005-03-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-08227-000 SPACER(8.2X12.5X23.5)M15A; 2003-06-01~2005-03-01 |
09180-08227-000 |
from US $1.92 |
||
|
18
|
18
01551-08353-000
ボルト
M15A; 2003-06-01~2005-03-01 |
01551-08353-000 |
— | ||
| replacement | |||||
|
18
|
18
01551-0835A-000 BoltM15A; 2003-06-01~2005-03-01 |
01551-0835A-000 |
US $15.50 |
||
|
19
|
19
14630-60J01-000
PIPE,MUFFLER TAIL
M15A; 2003-06-01~2005-03-01 |
14630-60J01-000 |
— | ||
|
20
|
20
01550-06103-000
Bolt, front
M15A; 2003-06-01~2005-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0610B-000 BoltBolt M15A; 2003-06-01~2005-03-01 |
01550-0610B-000 |
from US $0.80 |
||
|
20
|
20
01550-0610A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0610A-000 |
from US $0.80 |
||
