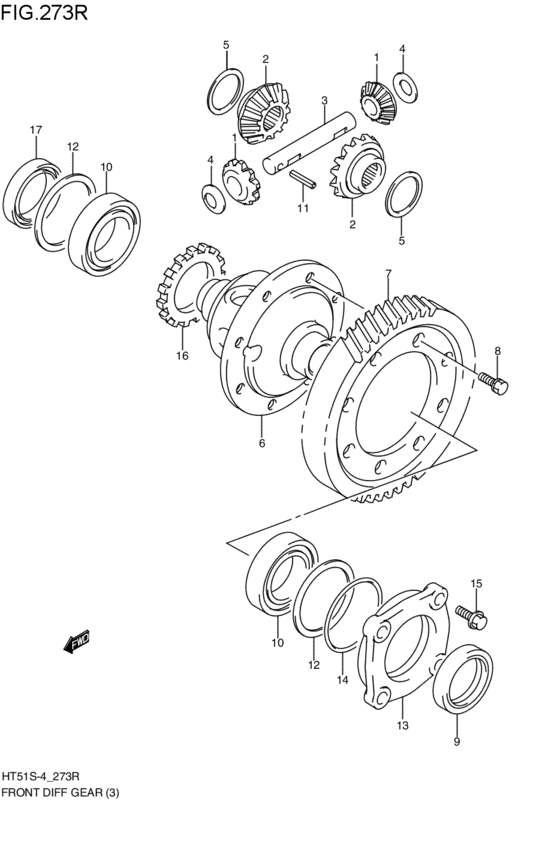

フロントデファレンシャルギヤ (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-70C00-000 PINION,DIFFERENTIALM15A; 2003-06-01~2005-03-01 |
27331-70C00-000 |
US $33.60 |
||
|
2
|
2
27341-60J01-000
GEAR,DIFF SIDE
M15A; 2003-06-01~2005-03-01 |
27341-60J01-000 |
— | ||
|
3
|
3
27351-70C01-000 SHAFT,DIFF SIDE PINIONM15A; 2003-06-01~2005-03-01 |
27351-70C01-000 |
US $20 |
||
|
4
|
4
09164-17006-000 WASHER(17.3X32X1)M15A; 2003-06-01~2005-03-01 |
09164-17006-000 |
from US $1.60 |
||
|
5
|
5
09181-38172-000 SHIM(38X50X1.1)Shim (t:1.10) M15A; 2003-06-01~2005-03-01 |
09181-38172-000 |
from US $2.32 |
||
|
5
|
5
09181-38174-000 SHIM(38X50X1.15)Shim (t:1.15) M15A; 2003-06-01~2005-03-01 |
09181-38174-000 |
US $29.10 |
||
|
5
|
5
09181-38163-000 SHIM(38X50X0.85)Shim (t:0.85) M15A; 2003-06-01~2005-03-01 |
09181-38163-000 |
from US $4.03 |
||
|
5
|
5
09181-38164-000 SHIM(38X50X0.9)Shim (t:0.90) M15A; 2003-06-01~2005-03-01 |
09181-38164-000 |
US $26.90 |
||
|
5
|
5
09181-38165-000 SHIM(38X50X0.95)Shim (t:0.95) M15A; 2003-06-01~2005-03-01 |
09181-38165-000 |
US $26.90 |
||
|
5
|
5
09181-38166-000 SHIM(38X50X1)Shim (t:1.00) M15A; 2003-06-01~2005-03-01 |
09181-38166-000 |
US $32 |
||
|
5
|
5
09181-38169-000 SHIM(38X50X1.05)Shim (t:1.05) M15A; 2003-06-01~2005-03-01 |
09181-38169-000 |
US $32 |
||
|
6
|
6
27411-60J00-000
CASE,DIFF
M15A; 2003-06-01~2005-03-01 |
27411-60J00-000 |
— | ||
|
7
|
7
27511-70C60-000
GEAR,FINAL
M15A; 2003-06-01~2005-03-01 |
27511-70C60-000 |
— | ||
|
8
|
8
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch M15A; 2003-06-01~2005-03-01 |
09103-10189-000 |
from US $2.40 |
||
|
9
|
9
27432-70C00-000 SEAL,DIFF SIDE OILM15A; 2003-06-01~2005-03-01 |
27432-70C00-000 |
from US $9.45 |
||
|
10
|
10
09265-38001-000 BEARING(38X63X17)M15A; 2003-06-01~2005-03-01 |
09265-38001-000 |
from US $37.24 |
||
|
11
|
11
09205-05007-000 PIN,SPRING(5X36)M15A; 2003-06-01~2005-03-01 |
09205-05007-000 |
US $1.76 |
||
|
12
|
12
29541-74C00-000 SHIM,DIFF SIDE BRG T:0.60M15A; 2003-06-01~2005-03-01 |
29541-74C00-000 |
US $4.56 |
||
|
12
|
12
29541-74C20-000 SHIM,DIFF SIDE BRG T:0.66M15A; 2003-06-01~2005-03-01 |
29541-74C20-000 |
US $4.56 |
||
|
12
|
12
29541-74C40-000 SHIM,DIFF SIDE BRG T:0.72M15A; 2003-06-01~2005-03-01 |
29541-74C40-000 |
US $4.56 |
||
|
12
|
12
29541-74C60-000 SHIM,DIFF SIDE BRG T:0.78M15A; 2003-06-01~2005-03-01 |
29541-74C60-000 |
US $4.56 |
||
|
12
|
12
29541-74C80-000 SHIM,DIFF SIDE BRG T:0.84M15A; 2003-06-01~2005-03-01 |
29541-74C80-000 |
US $4.56 |
||
|
12
|
12
29541-75C00-000 SHIM,DIFF SIDE BRG T:0.30M15A; 2003-06-01~2005-03-01 |
29541-75C00-000 |
from US $2.21 |
||
|
13
|
13
27421-70C00-000 RETAINER,DIFF SIDE BRGM15A; 2003-06-01~2005-03-01 |
27421-70C00-000 |
US $36.80 |
||
|
14
|
14
09280-58005-000 O RING(D:2.3,ID:56.9)M15A; 2003-06-01~2005-03-01 |
09280-58005-000 |
US $2.56 |
||
|
15
|
15
01550-08203-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 BoltM15A; 2003-06-01~2005-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket M15A; 2003-06-01~2005-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
16
|
16
26121-54G40-000 RING,EXCITERM15A; 2003-06-01~2005-03-01 |
26121-54G40-000 |
US $39.52 |
||
|
17
|
17
09283-40028-000 SEAL,OIL(40X58X9.6)M15A; 2003-06-01~2005-03-01 |
09283-40028-000 |
from US $10.08 |
||
