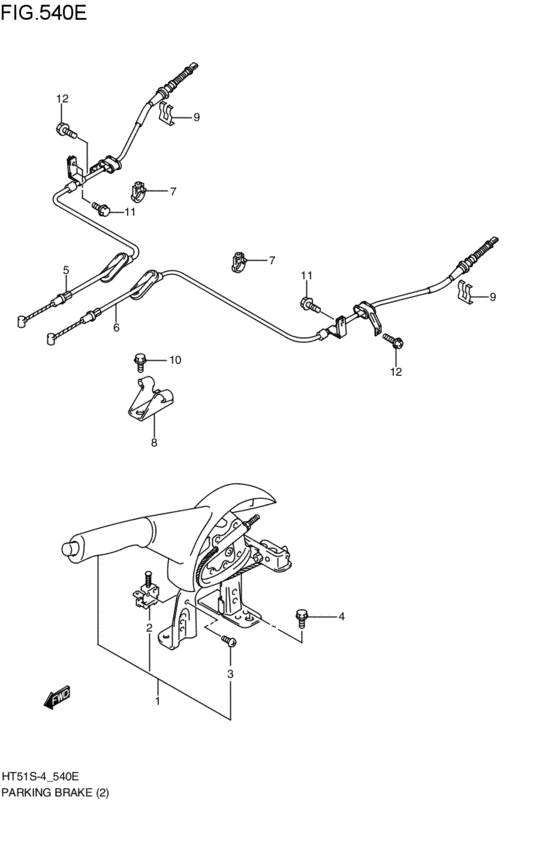

parking brakes (SS; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76F10-5PK
LEVER ASSY,PARKING BK
ブラック; SS; 2003-06-01~2005-03-01 |
54100-76F10-5PK |
— | ||
| replacement | |||||
|
1
|
1
54100-76F11-5PK LEVER ASSY,PARK BK(BLACK)ブラック; SS; 2003-06-01~2005-03-01 |
54100-76F11-5PK |
US $144.99 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKESS; 2003-06-01~2005-03-01 |
37940-76G00-000 |
US $7.73 |
||
|
3
|
3
54115-76G00-000 SCREWSS; 2003-06-01~2005-03-01 |
54115-76G00-000 |
US $2.17 |
||
|
4
|
4
01551-08163-000
Bolt
SS; 2003-06-01~2005-03-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01551-0816C-000 BoltSS; 2003-06-01~2005-03-01 |
01551-0816C-000 |
from US $0.96 |
||
|
4
|
4
01551-0816A-000
ボルト
SS; 2003-06-01~2005-03-01 |
01551-0816A-000 |
— | ||
|
5
|
5
54401-60J00-000 CABLE,PARKING BRAKE,RSS; 2003-06-01~2005-03-01 |
54401-60J00-000 |
US $83.90 |
||
|
6
|
6
54402-60J00-000 CABLE,PARKING BRAKE,LSS; 2003-06-01~2005-03-01 |
54402-60J00-000 |
US $83.90 |
||
|
7
|
7
54415-77A00-000 CLAMP,PARKING CABLESS; 2003-06-01~2005-03-01 |
54415-77A00-000 |
US $2.94 |
||
|
8
|
8
54495-76F00-000 BRACKET,PARKING CABLESS; 2003-06-01~2005-03-01 |
54495-76F00-000 |
US $6.48 |
||
|
9
|
9
09383-13003-000 E-RINGSS; 2003-06-01~2005-03-01 |
09383-13003-000 |
from US $1.60 |
||
|
10
|
10
01551-08163-000
Bolt
SS; 2003-06-01~2005-03-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01551-0816C-000 BoltSS; 2003-06-01~2005-03-01 |
01551-0816C-000 |
from US $0.96 |
||
|
10
|
10
01551-0816A-000
ボルト
SS; 2003-06-01~2005-03-01 |
01551-0816A-000 |
— | ||
|
11
|
11
01551-08163-000
Bolt
SS; 2003-06-01~2005-03-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01551-0816C-000 BoltSS; 2003-06-01~2005-03-01 |
01551-0816C-000 |
from US $0.96 |
||
|
11
|
11
01551-0816A-000
ボルト
SS; 2003-06-01~2005-03-01 |
01551-0816A-000 |
— | ||
|
12
|
12
02162-06253-000
Bolt
SS; 2003-06-01~2005-03-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0625A-000 SCREWSS; 2003-06-01~2005-03-01 |
02162-0625A-000 |
from US $0.76 |
||
