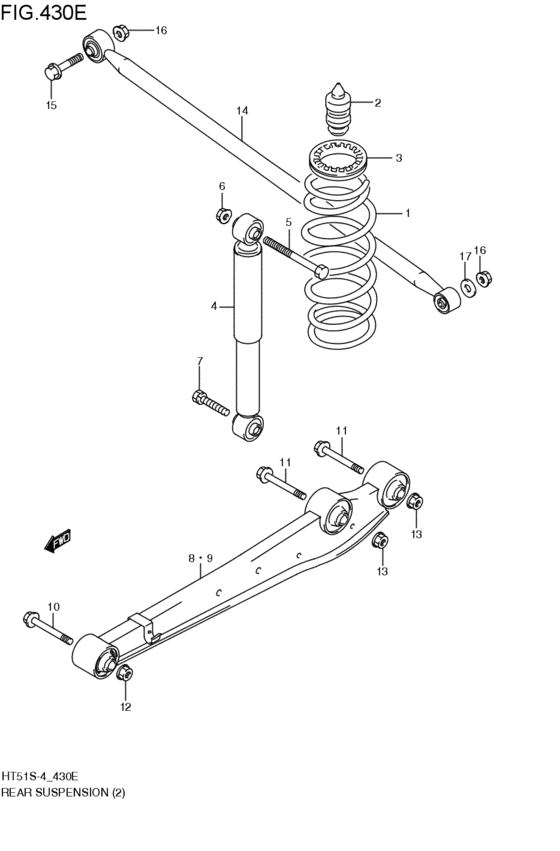

rear suspension (SS; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-60J00-000 SPRING,REAR COILSS; 2003-06-01~2005-03-01 |
41311-60J00-000 |
US $209.60 |
||
|
2
|
2
42250-60J00-000 STOPPER,RR BUMPSS; 2003-06-01~2005-03-01 |
42250-60J00-000 |
from US $24.29 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPERSS; 2003-06-01~2005-03-01 |
41341-79A00-000 |
US $19.01 |
||
|
4
|
4
41800-60J00-000 ABSORBER ASSY,RR SHOCKSS; 2003-06-01~2005-03-01 |
41800-60J00-000 |
US $238.64 |
||
|
5
|
5
41981-76G01-000 BOLT,RR SHK ABSORBER UPRSS; 2003-06-01~2005-03-01 |
41981-76G01-000 |
US $8.64 |
||
|
6
|
6
08316-10123-000
Nut
SS; 2003-06-01~2005-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUTSS; 2003-06-01~2005-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09117-12014-000 BOLT(12X57)SS; 2003-06-01~2005-03-01 |
09117-12014-000 |
US $37.20 |
||
|
8
|
8
46201-60J00-000
アームアッシ,リヤトレーリング,ライト
SS; 2003-06-01~2005-03-01 |
46201-60J00-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0620C-000 SCREWSS; 2003-06-01~2005-03-01 |
02162-0620C-000 |
from US $0.80 |
||
|
8
|
8
46200-60J00-000 ARM ASSY,RR TRAILINGSS; 2003-06-01~2005-03-01 |
46200-60J00-000 |
US $173.70 |
||
|
8
|
8
02162-06203-000
Bolt
SS; 2003-06-01~2005-03-01 |
02162-06203-000 |
— | ||
|
9
|
9
46202-60J00-000
アームアッシ,リヤトレーリング,レフト
SS; 2003-06-01~2005-03-01 |
46202-60J00-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0620C-000 SCREWSS; 2003-06-01~2005-03-01 |
02162-0620C-000 |
from US $0.80 |
||
|
9
|
9
46200-60J00-000 ARM ASSY,RR TRAILINGSS; 2003-06-01~2005-03-01 |
46200-60J00-000 |
US $173.70 |
||
|
9
|
9
02162-06203-000
Bolt
SS; 2003-06-01~2005-03-01 |
02162-06203-000 |
— | ||
|
10
|
10
09103-12044-000 BOLT(12X87)SS; 2003-06-01~2005-03-01 |
09103-12044-000 |
from US $2.48 |
||
|
11
|
11
09103-12068-000 BOLT(12X80)SS; 2003-06-01~2005-03-01 |
09103-12068-000 |
from US $4.37 |
||
|
12
|
12
08316-10123-000
Nut
SS; 2003-06-01~2005-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1012A-000 NUTSS; 2003-06-01~2005-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
13
|
13
46292-60J00-000
ナット
SS; 2003-06-01~2005-03-01 |
46292-60J00-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-12068-000 NUTSS; 2003-06-01~2005-03-01 |
09159-12068-000 |
from US $1.76 |
||
|
14
|
14
46300-83E00-000
Rod assy,lateral
SS; 2003-06-01~2005-03-01 |
46300-83E00-000 |
— | ||
| replacement | |||||
|
14
|
14
46300-83E01-000 ROD ASSY,LATERALSS; 2003-06-01~2005-03-01 |
46300-83E01-000 |
US $92.37 |
||
|
15
|
15
09103-12051-000 BOLT(12X50)SS; 2003-06-01~2005-03-01 |
09103-12051-000 |
from US $2.40 |
||
|
16
|
16
08316-10123-000
Nut
SS; 2003-06-01~2005-03-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1012A-000 NUTSS; 2003-06-01~2005-03-01 |
08316-1012A-000 |
from US $0.96 |
||
|
17
|
17
09164-12017-000 WASHERSS; 2003-06-01~2005-03-01 |
09164-12017-000 |
US $1.28 |
||
