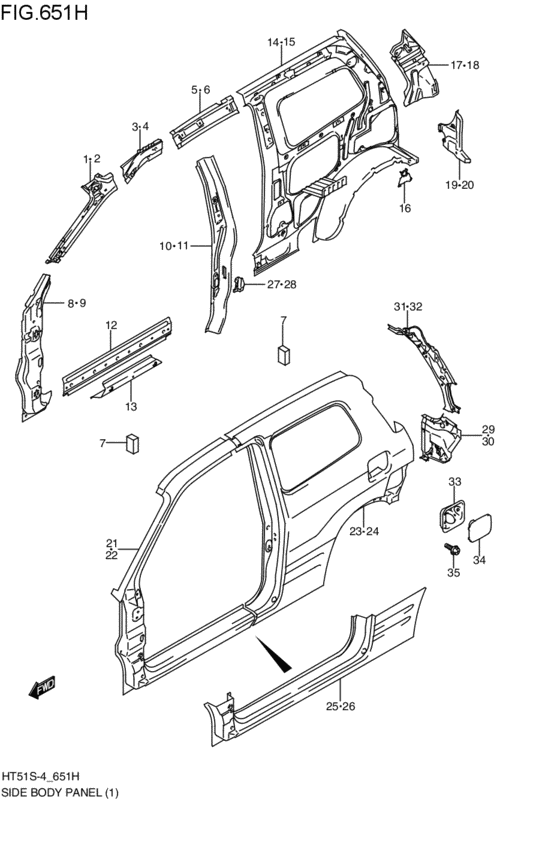

side body panel (3DR; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-74G01-000 PILLAR,FR INNER UPPER,R3DR; 2003-06-01~2005-03-01 |
63111-74G01-000 |
US $42.32 |
||
|
2
|
2
63511-74G00-000 PILLAR,FR INNER UPPER,L3DR; 2003-06-01~2005-03-01 |
63511-74G00-000 |
US $46.37 |
||
|
3
|
3
63112-80G00-000 REINFORCEMENT,FR INR UPR,R3DR; 2003-06-01~2005-03-01 |
63112-80G00-000 |
US $23.74 |
||
|
4
|
4
63512-80G00-000
REINFORCEMENT,FR INR UPR,L
3DR; 2003-06-01~2005-03-01 |
63512-80G00-000 |
— | ||
|
5
|
5
63121-80G00-000
RAIL,ROOF SIDE INNER,R
3DR; 2003-06-01~2005-03-01 |
63121-80G00-000 |
— | ||
|
6
|
6
63521-80G00-000
RAIL,ROOF SIDE INNER,L
3DR; 2003-06-01~2005-03-01 |
63521-80G00-000 |
— | ||
|
7
|
7
75242-82300-000
パッド
3DR; 2003-06-01~2005-03-01 |
75242-82300-000 |
— | ||
| replacement | |||||
|
7
|
7
75242-8230V-000 PAD3DR; 2003-06-01~2005-03-01 |
75242-8230V-000 |
US $3.20 |
||
|
8
|
8
63140-80G00-000
REINFORCEMENT,FR DOOR HNG,R
3DR; 2003-06-01~2005-03-01 |
63140-80G00-000 |
— | ||
|
9
|
9
63540-80G00-000
REINFORCEMENT,FR DOOR HNG,L
3DR; 2003-06-01~2005-03-01 |
63540-80G00-000 |
— | ||
|
10
|
10
63210-74G00-000
Reinf, center pillar rh
3DR; 2003-06-01~2005-03-01 |
63210-74G00-000 |
— | ||
|
11
|
11
63610-74G00-000
Reinf, center pillar lh
3DR; 2003-06-01~2005-03-01 |
63610-74G00-000 |
— | ||
|
12
|
12
63221-80G01-000 STRENGTH,SIDE SILL3DR; 2003-06-01~2005-03-01 |
63221-80G01-000 |
US $55.20 |
||
|
13
|
13
63231-80G00-000
STRENGTH,SIDE SILL OUTER
3DR; 2003-06-01~2005-03-01 |
63231-80G00-000 |
— | ||
|
14
|
14
63311-80G01-000
PANEL,QUARTER INNER,R
3DR; 2003-06-01~2005-03-01 |
63311-80G01-000 |
— | ||
|
15
|
15
63711-80G01-000
Panel,qtr inner,l
3DR; 2003-06-01~2005-03-01 |
63711-80G01-000 |
— | ||
|
16
|
16
63315-74G00-000 REINFORCEMENT,SEAT BELT RETR3DR; 2003-06-01~2005-03-01 |
63315-74G00-000 |
US $8.72 |
||
|
17
|
17
63312-74G00-000
REINFORCEMENT,RR PILLAR,R
3DR; 2003-06-01~2005-03-01 |
63312-74G00-000 |
— | ||
|
18
|
18
63712-74G00-000
Reinf, rr pillar lh
3DR; 2003-06-01~2005-03-01 |
63712-74G00-000 |
— | ||
|
19
|
19
63321-80G00-000 EXTENSION,QTR INR RR,R3DR; 2003-06-01~2005-03-01 |
63321-80G00-000 |
US $36.25 |
||
|
20
|
20
63721-80G00-000 EXTENSION,QTR INR RR,L3DR; 2003-06-01~2005-03-01 |
63721-80G00-000 |
US $36.25 |
||
|
21
|
21
64111-60J00-P11
Panel,a-pillar,r
3DR; 2003-06-01~2005-03-01 |
64111-60J00-P11 |
— | ||
|
22
|
22
64511-60J00-P11
PANEL,A-PILLAR,L
3DR; 2003-06-01~2005-03-01 |
64511-60J00-P11 |
— | ||
|
23
|
23
64100-60810-P31
PANEL SET,QUARTER,R
3DR; 2003-06-01~2005-03-01 |
64100-60810-P31 |
— | ||
|
24
|
24
64500-60810-P31
PANEL SET,QUARTER,L
3DR; 2003-06-01~2005-03-01 |
64500-60810-P31 |
— | ||
|
25
|
25
64111-60J00-P07
PANEL,SIDE SILL,R
3DR; 2003-06-01~2005-03-01 |
64111-60J00-P07 |
— | ||
|
26
|
26
64511-60J00-P07
PANEL,SIDE SILL,L
3DR; 2003-06-01~2005-03-01 |
64511-60J00-P07 |
— | ||
|
27
|
27
64131-74G00-000
REINFORCEMENT,SIDE BODY OTR,R
3DR; 2003-06-01~2005-03-01 |
64131-74G00-000 |
— | ||
|
28
|
28
64531-74G00-000
REINFORCEMENT,SIDE BODY OTR,L
3DR; 2003-06-01~2005-03-01 |
64531-74G00-000 |
— | ||
|
29
|
29
64141-80G00-000 EXTENSION,SIDE LWR,R3DR; 2003-06-01~2005-03-01 |
64141-80G00-000 |
US $50.78 |
||
|
30
|
30
64541-80G00-000 EXTENSION,SIDE LWR,L3DR; 2003-06-01~2005-03-01 |
64541-80G00-000 |
US $50.78 |
||
|
31
|
31
64150-80G00-000 EXTENSION,SIDE OTR,R3DR; 2003-06-01~2005-03-01 |
64150-80G00-000 |
US $107.82 |
||
|
32
|
32
64550-80G00-000 EXTENSION,SIDE OTR,L3DR; 2003-06-01~2005-03-01 |
64550-80G00-000 |
US $89.79 |
||
|
33
|
33
64561-80G01-000 BOX,FUEL INLET3DR; 2003-06-01~2005-03-01 |
64561-80G01-000 |
US $33.49 |
||
|
34
|
34
64570-80G01-000
リッド,フューエル,インレット
3DR; 2003-06-01~2005-03-01 |
64570-80G01-000 |
— | ||
| replacement | |||||
|
34
|
34
64570-80G02-000 LID,FUEL INLET3DR; 2003-06-01~2005-03-01 |
64570-80G02-000 |
US $37.54 |
||
|
35
|
35
02162-06123-000
Bolt (6x12)
3DR; 2003-06-01~2005-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02162-0612B-000 SCREWBolt 3DR; 2003-06-01~2005-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket 3DR; 2003-06-01~2005-03-01 |
02162-0612A-000 |
from US $0.80 |
||
