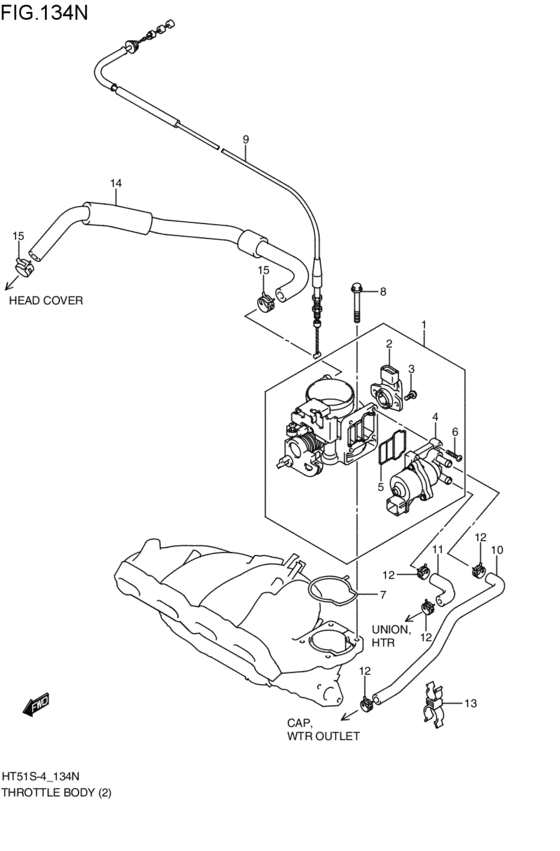

throttle body (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-84E01-000
ボディアッシ,スロットル
M15A; 2003-06-01~2005-03-01 |
13400-84E01-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-84E02-000 BODY ASSY,THROTTLEM15A; 2003-06-01~2005-03-01 |
13400-84E02-000 |
US $630.08 |
||
|
2
|
2
13420-86G00-000
センサ,スロットルポジション
M15A; 2003-06-01~2005-03-01 |
13420-86G00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-86G01-000 SENSOR,THROTTLE POSITIONM15A; 2003-06-01~2005-03-01 |
13420-86G01-000 |
US $211.20 |
||
|
3
|
3
13428-77G10-000
Screw
M15A; 2003-06-01~2005-03-01 |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X12M15A; 2003-06-01~2005-03-01 |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18137-83E01-000 VALVE,ISCM15A; 2003-06-01~2005-03-01 |
18137-83E01-000 |
US $459.04 |
||
|
5
|
5
14139-70G30-000 GASKET,ISC VALVEM15A; 2003-06-01~2005-03-01 |
14139-70G30-000 |
from US $2.43 |
||
|
6
|
6
13601-05148-000 SCREW(5X14)M15A; 2003-06-01~2005-03-01 |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
6
|
6
13601-05148-XC0 SCREW(5X14)M15A; 2003-06-01~2005-03-01 |
13601-05148-XC0 |
from US $1.98 |
||
|
7
|
7
13421-86G00-000 GASKET,THROTTLE BODYM15A; 2003-06-01~2005-03-01 |
13421-86G00-000 |
from US $6.32 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder M15A; 2003-06-01~2005-03-01 |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
15910-60J01-000
CABLE ASSY,ACCEL
M15A; 2003-06-01~2005-03-01 |
15910-60J01-000 |
— | ||
|
10
|
10
13491-60J00-000 HOSE,WTR THROTTLE BODY INLETM15A; 2003-06-01~2005-03-01 |
13491-60J00-000 |
from US $8.19 |
||
|
11
|
11
13492-60J00-000 HOSE,WTR THROTTLE BODY OUTLETM15A; 2003-06-01~2005-03-01 |
13492-60J00-000 |
from US $6.03 |
||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet M15A; 2003-06-01~2005-03-01 |
09401-12410-000 |
from US $1.19 |
||
|
13
|
13
09408-00186-000 CLAMPM15A; 2003-06-01~2005-03-01 |
09408-00186-000 |
US $26.90 |
||
|
14
|
14
11191-60J00-000 HOSE,BREATHERM15A; 2003-06-01~2005-03-01 |
11191-60J00-000 |
US $51.20 |
||
|
15
|
15
09401-18404-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-18404-000 |
from US $1.33 |
||
