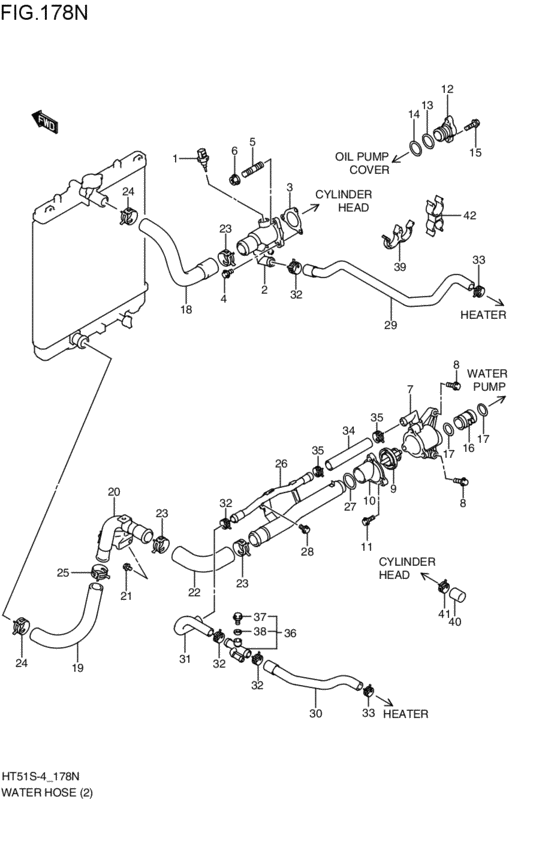

water hose (M15A; 2003-06-01~2005-03-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-54G00-000 Sensor,water TempM15A; 2003-06-01~2005-03-01 |
13650-54G00-000 |
US $55.01 |
||
|
2
|
2
17570-86G00-000 CAP,WATER OUTLETM15A; 2003-06-01~2005-03-01 |
17570-86G00-000 |
from US $46.80 |
||
|
3
|
3
17699-69G00-000 GASKET,WATER OUTLET CAPM15A; 2003-06-01~2005-03-01 |
17699-69G00-000 |
US $5.60 |
||
|
4
|
4
01550-08253-000
Bolt, rear
M15A; 2003-06-01~2005-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
M15A; 2003-06-01~2005-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUDM15A; 2003-06-01~2005-03-01 |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-10083-000
Nut
M15A; 2003-06-01~2005-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTM15A; 2003-06-01~2005-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
17690-86G00-000 CASE,THERMOSTATM15A; 2003-06-01~2005-03-01 |
17690-86G00-000 |
US $96.78 |
||
|
8
|
8
01550-08353-000
Bolt, rear
M15A; 2003-06-01~2005-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0835B-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
8
|
8
01550-0835A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
9
|
9
17670-65D00-000 THERMOSTAT,WATER 82 DEGM15A; 2003-06-01~2005-03-01 |
17670-65D00-000 |
from US $21.12 |
||
|
10
|
10
17561-63J00-000
キャップ,ウォータサーモスタツト
M15A; 2004-10-01~2005-03-01 |
17561-63J00-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0620A-000 BOLTM15A; 2004-10-01~2005-03-01 |
01550-0620A-000 |
from US $0.76 |
||
|
10
|
10
17561-80JA0-000 CAP,WATER THERMOSTATM15A; 2004-10-01~2005-03-01 |
17561-80JA0-000 |
from US $17.93 |
||
|
10
|
10
17561-86G00-000 CAP,WATER THERMOSTATM15A; 2003-06-01~2004-09-01 |
17561-86G00-000 |
US $27.42 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
M15A; 2003-06-01~2005-03-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BOLTBolt, head cover M15A; 2003-06-01~2005-03-01 |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BOLTBolt M15A; 2003-06-01~2005-03-01 |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
17581-69G00-000 CAP,WATER OUTLETM15A; 2003-06-01~2005-03-01 |
17581-69G00-000 |
from US $36.54 |
||
|
13
|
13
17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.7M15A; 2003-06-01~2005-03-01 |
17582-54D00-000 |
from US $2.24 |
||
|
14
|
14
17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.7M15A; 2003-06-01~2005-03-01 |
17583-54D00-000 |
from US $2.72 |
||
|
15
|
15
01550-08453-000
Bolt,cylinder h
M15A; 2003-06-01~2005-03-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0845B-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0845B-000 |
from US $1.06 |
||
|
15
|
15
01550-0845A-000 BOLTBolt, oil pump (s) M15A; 2003-06-01~2005-03-01 |
01550-0845A-000 |
US $5.03 |
||
|
16
|
16
17831-69G00-000 PIPE,THERMO CASE WATER OUTLETM15A; 2003-06-01~2005-03-01 |
17831-69G00-000 |
from US $12.20 |
||
|
17
|
17
09280-28008-000 O RING(D:3.5,ID:27.7)M15A; 2003-06-01~2005-03-01 |
09280-28008-000 |
from US $0.63 |
||
|
18
|
18
17852-86G00-000 HOSE,RADIATOR INLETM15A; 2003-06-01~2005-03-01 |
17852-86G00-000 |
US $39.52 |
||
|
19
|
19
17854-80G00-000 HOSE,RADIATOR OUTLETM15A; 2003-06-01~2005-03-01 |
17854-80G00-000 |
US $41.04 |
||
|
20
|
20
17860-80GA0-000 PIPE,WATER INLET NO.2M15A; 2003-06-01~2005-03-01 |
17860-80GA0-000 |
US $67.20 |
||
|
21
|
21
01550-06123-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BOLTBolt, clamp M15A; 2003-06-01~2005-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
17853-69G00-000 HOSE,WATER INLETM15A; 2003-06-01~2005-03-01 |
17853-69G00-000 |
from US $12.58 |
||
|
23
|
23
09401-35403-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-35403-000 |
from US $2.56 |
||
|
24
|
24
09401-30405-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-30405-000 |
from US $3.04 |
||
|
25
|
25
09401-30405-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-30405-000 |
from US $3.04 |
||
|
26
|
26
17840-86G00-000 PIPE,WATER INLET NO.1M15A; 2003-06-01~2005-03-01 |
17840-86G00-000 |
from US $38.48 |
||
|
27
|
27
09280-28008-000 O RING(D:3.5,ID:27.7)M15A; 2003-06-01~2005-03-01 |
09280-28008-000 |
from US $0.63 |
||
|
28
|
28
01550-06123-000
Bolt
M15A; 2003-06-01~2005-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0612B-000 BOLTBolt, clamp M15A; 2003-06-01~2005-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
28
|
28
01550-0612A-000 BOLTM15A; 2003-06-01~2005-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
29
|
29
17871-60J00-000 HOSE,HEATER INLETM15A; 2003-06-01~2005-03-01 |
17871-60J00-000 |
US $52.80 |
||
|
30
|
30
17872-60J00-000 HOSE,HEATER OUTLET NO.1M15A; 2003-06-01~2005-03-01 |
17872-60J00-000 |
US $17.11 |
||
|
31
|
31
17874-63J00-000 HOSE,HEATER OUTLET NO.2M15A; 2003-06-01~2005-03-01 |
17874-63J00-000 |
from US $10.04 |
||
|
32
|
32
09401-21405-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-21405-000 |
US $1.60 |
||
|
33
|
33
09401-18403-000 CLIPClip, heater hose M15A; 2003-06-01~2005-03-01 |
09401-18403-000 |
US $1.92 |
||
|
34
|
34
17873-69G00-000 HOSE,WATER BYPASSM15A; 2003-06-01~2004-09-01 |
17873-69G00-000 |
US $10.40 |
||
|
35
|
35
09401-21405-000 CLIPM15A; 2003-06-01~2005-03-01 |
09401-21405-000 |
US $1.60 |
||
|
36
|
36
17879-86G00-000 UNION,HEATERM15A; 2003-06-01~2005-03-01 |
17879-86G00-000 |
from US $12.71 |
||
|
37
|
37
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover M15A; 2003-06-01~2005-03-01 |
17568-50F00-000 |
from US $2.08 |
||
|
38
|
38
09168-06026-000 GASKET(6.4X11.5X0.8)M15A; 2003-06-01~2005-03-01 |
09168-06026-000 |
from US $0.91 |
||
|
39
|
39
09408-00117-000 CLAMPM15A; 2003-06-01~2005-03-01 |
09408-00117-000 |
US $20.20 |
||
|
40
|
40
09251-07004-000 CAPM15A; 2003-06-01~2005-03-01 |
09251-07004-000 |
US $43.40 |
||
|
41
|
41
09401-12404-000 CLIPClip M15A; 2003-06-01~2005-03-01 |
09401-12404-000 |
from US $1.52 |
||
|
42
|
42
09408-00166-000 CLAMPM15A; 2003-06-01~2005-03-01 |
09408-00166-000 |
US $33.50 |
||
