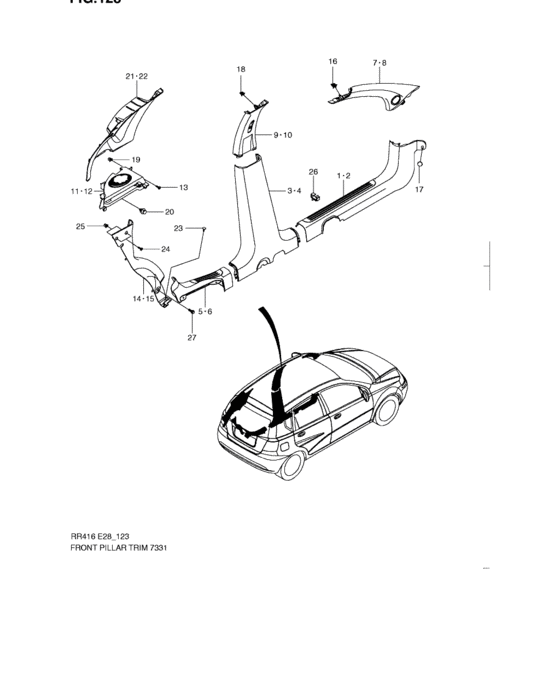

Front pillar trim (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76131-84Z00-000
Cover, rocker pnl fr rh
04 MODEL,05 MODEL |
76131-84Z00-000 |
— | ||
|
1
|
1
76131-84Z10-000
Cover, rocker panel front rh
06 MODEL,07 MODEL,08 MODEL |
76131-84Z10-000 |
— | ||
|
2
|
2
76141-84Z00-000
Cover, rocker pnl fr lh
04 MODEL,05 MODEL |
76141-84Z00-000 |
— | ||
|
2
|
2
76141-84Z10-000
Cover, rocker pnl fr lh
06 MODEL,07 MODEL,08 MODEL |
76141-84Z10-000 |
— | ||
|
3
|
3
76231-84Z00-000
Trim, ctr pillar lwr rh
04 MODEL,05 MODEL |
76231-84Z00-000 |
— | ||
|
3
|
3
76231-84Z10-000
Trim, center pillar lower rh
06 MODEL,07 MODEL,08 MODEL |
76231-84Z10-000 |
— | ||
|
4
|
4
76241-84Z00-000
Trim, ctr pillar lwr lh
04 MODEL,05 MODEL |
76241-84Z00-000 |
— | ||
|
4
|
4
76241-84Z10-000
Trim, center pillar lower lh
06 MODEL,07 MODEL,08 MODEL |
76241-84Z10-000 |
— | ||
|
5
|
5
76152-84Z00-000
Scuff, side sill rr rh
04 MODEL,05 MODEL |
76152-84Z00-000 |
— | ||
|
5
|
5
76152-84Z10-000
Scuff, side sill rear rh
06 MODEL,07 MODEL,08 MODEL |
76152-84Z10-000 |
— | ||
|
6
|
6
76162-84Z00-000
Scuff, side sill rr lh
04 MODEL,05 MODEL |
76162-84Z00-000 |
— | ||
|
6
|
6
76162-84Z10-000
Scuff, side sill rear lh
06 MODEL,07 MODEL,08 MODEL |
76162-84Z10-000 |
— | ||
|
7
|
7
76121-84Z31-000
Trim, fr pillar rh
04 MODEL,05 MODEL |
76121-84Z31-000 |
— | ||
|
7
|
7
76121-84Z50-000
Trim, fr pillar rh
06 MODEL,07 MODEL,08 MODEL |
76121-84Z50-000 |
— | ||
|
7
|
7
76121-84Z11-000
Trim, fr pillar rh
S:04 MODEL,05 MODEL |
76121-84Z11-000 |
— | ||
|
7
|
7
76121-84Z70-000
Trim, fr pillar rh
S:06 MODEL,07 MODEL,08 MODEL |
76121-84Z70-000 |
— | ||
|
8
|
8
76121-84Z21-000
Trim, fr pillar lh
04 MODEL,05 MODEL |
76121-84Z21-000 |
— | ||
|
8
|
8
76121-84Z60-000
Trim, fr pillar lh
06 MODEL,07 MODEL,08 MODEL |
76121-84Z60-000 |
— | ||
|
8
|
8
76121-84Z01-000
Trim, fr pillar lh
S:04 MODEL,05 MODEL |
76121-84Z01-000 |
— | ||
|
8
|
8
76121-84Z80-000
Trim, fr pillar lh
S:06 MODEL,07 MODEL,08 MODEL |
76121-84Z80-000 |
— | ||
|
9
|
9
76221-84Z10-000
Trim, ctr pillar upr rh
04 MODEL,05 MODEL |
76221-84Z10-000 |
— | ||
|
9
|
9
76221-84Z20-000
Trim, ctr pillar upr rh
06 MODEL,07 MODEL,08 MODEL |
76221-84Z20-000 |
— | ||
|
10
|
10
76221-84Z00-000
Trim, ctr pillar upr lh
04 MODEL,05 MODEL |
76221-84Z00-000 |
— | ||
|
10
|
10
76221-84Z30-000
Trim, ctr pillar upr lh
06 MODEL,07 MODEL,08 MODEL |
76221-84Z30-000 |
— | ||
|
11
|
11
76270-84Z00-000
Cover, side rh
04 MODEL,05 MODEL |
76270-84Z00-000 |
— | ||
|
11
|
11
76270-84Z11-000
Cover, side rh
06 MODEL,07 MODEL,08 MODEL |
76270-84Z11-000 |
— | ||
|
12
|
12
76280-84Z00-000
Cover, side lh
04 MODEL,05 MODEL |
76280-84Z00-000 |
— | ||
|
12
|
12
76280-84Z11-000
Cover, side lh
06 MODEL,07 MODEL,08 MODEL |
76280-84Z11-000 |
— | ||
|
13
|
13
75928-86Z00-000
Bolt, tuner
|
75928-86Z00-000 |
— | ||
|
14
|
14
76180-84Z00-000
Trim, rr seat back side lh
04 MODEL,05 MODEL |
76180-84Z00-000 |
— | ||
|
14
|
14
76180-84Z30-000
Trim, rear seat back side lh
06 MODEL,07 MODEL,08 MODEL |
76180-84Z30-000 |
— | ||
|
15
|
15
76180-84Z10-000
Trim, rr seat back side rh
04 MODEL,05 MODEL |
76180-84Z10-000 |
— | ||
|
15
|
15
76180-84Z20-000
Trim, rear seat back side rh
06 MODEL,07 MODEL,08 MODEL |
76180-84Z20-000 |
— | ||
|
16
|
16
76119-86Z00-000
Clip
|
76119-86Z00-000 |
— | ||
|
17
|
17
76149-84Z00-000
Clip
|
76149-84Z00-000 |
— | ||
|
18
|
18
76119-86Z00-000
Clip
|
76119-86Z00-000 |
— | ||
|
19
|
19
83783-86Z00-000
Nut
|
83783-86Z00-000 |
— | ||
|
20
|
20
77212-86Z00-000
Clip
04 MODEL |
77212-86Z00-000 |
— | ||
|
21
|
21
76111-84Z01-000
Trim assy, center pillar rh
04 MODEL,05 MODEL,06 MODEL |
76111-84Z01-000 |
— | ||
|
21
|
21
76111-84Z10-000
Trim assy, qtr pillar rh
07 MODEL,08 MODEL |
76111-84Z10-000 |
— | ||
|
22
|
22
76121-84Z41-000
Trim assy, center pillar lh
04 MODEL,05 MODEL,06 MODEL |
76121-84Z41-000 |
— | ||
|
22
|
22
76121-84Z90-000
Trim assy, qtr pillar lh
07 MODEL,08 MODEL |
76121-84Z90-000 |
— | ||
|
23
|
23
72359-85Z00-000
Clip
04 MODEL,05 MODEL |
72359-85Z00-000 |
— | ||
|
23
|
23
76299-86Z00-000
Clip
06 MODEL,07 MODEL,08 MODEL |
76299-86Z00-000 |
— | ||
|
24
|
24
75928-86Z00-000
Bolt, tuner
|
75928-86Z00-000 |
— | ||
|
25
|
25
83783-86Z00-000
Nut
|
83783-86Z00-000 |
— | ||
|
26
|
26
76148-84Z00-000
Clip
|
76148-84Z00-000 |
— | ||
|
27
|
27
87820-84Z00-000
Pin, rear seat
|
87820-84Z00-000 |
— |
