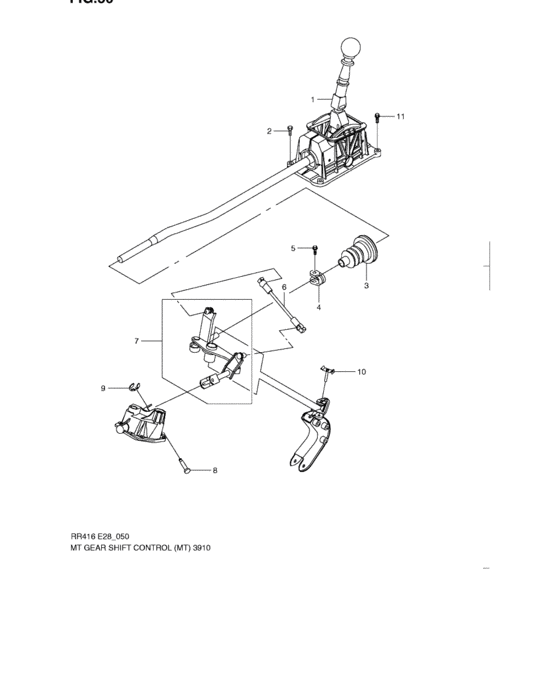

Mt gear shift control (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-84Z01-000
Control assy, gear shift
04 MODEL,05 MODEL |
28101-84Z01-000 |
— | ||
|
1
|
1
28101-84Z10-000
Control assy, gear shift
06 MODEL,07 MODEL,08 MODEL |
28101-84Z10-000 |
— | ||
|
1
|
1
28101-84Z20-000
Control assy, gear shift
09 MODEL |
28101-84Z20-000 |
— | ||
|
2
|
2
28099-84Z01-000
Bolt
|
28099-84Z01-000 |
— | ||
|
3
|
3
28113-84Z00-000
Bellows assy
|
28113-84Z00-000 |
— | ||
|
4
|
4
28269-85Z00-000
Clamp
04 MODEL,05 MODEL,06 MODEL,07 MODEL |
28269-85Z00-000 |
— | ||
|
4
|
4
28269-85Z10-000
Clamp
08 MODEL,09 MODEL |
28269-85Z10-000 |
— | ||
|
5
|
5
28268-85Z00-000
Bolt
|
28268-85Z00-000 |
— | ||
|
6
|
6
28267-85Z00-000
Rod, cont
|
28267-85Z00-000 |
— | ||
|
7
|
7
28270-84Z02-000
Control assy
|
28270-84Z02-000 |
— | ||
|
8
|
8
28256-85Z00-000
Pin
|
28256-85Z00-000 |
— | ||
|
9
|
9
28257-85Z00-000
Clip
|
28257-85Z00-000 |
— | ||
|
10
|
10
28098-84Z00-000
Bolt
|
28098-84Z00-000 |
— | ||
|
11
|
11
13169-86Z00-000
Bolt
|
13169-86Z00-000 |
— |
