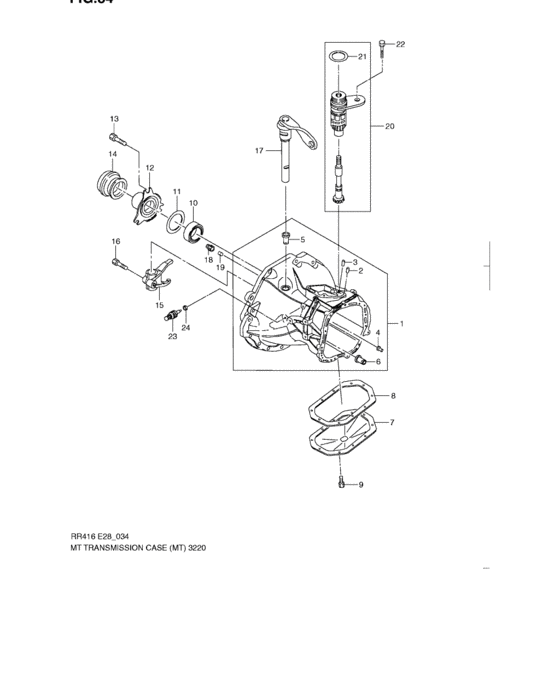

Mt transmission case (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-85Z00-000
Case assy, transmission
VIN.~355795 |
24710-85Z00-000 |
— | ||
|
1
|
1
24710-85Z20-000
Case assy, transmission
VIN.355796~ |
24710-85Z20-000 |
— | ||
|
2
|
2
24709-85Z00-000
Pin, dowel
|
24709-85Z00-000 |
— | ||
|
3
|
3
24708-85Z00-000
Pin, dowel
|
24708-85Z00-000 |
— | ||
|
4
|
4
24707-85Z00-000
Sleeve
|
24707-85Z00-000 |
— | ||
|
5
|
5
24706-84Z00-000
Bush
|
24706-84Z00-000 |
— | ||
|
6
|
6
24703-85Z00-000
Bush
|
24703-85Z00-000 |
— | ||
|
7
|
7
24740-85Z00-000
Cover, diff gear
VIN.~355795 |
24740-85Z00-000 |
— | ||
|
7
|
7
24740-85Z10-000
Cover, diff gear
VIN.355796~ |
24740-85Z10-000 |
— | ||
|
8
|
8
24739-85Z00-000
Gasket, diff gear cover
VIN.~355795 |
24739-85Z00-000 |
— | ||
|
8
|
8
24739-85Z10-000
Gasket, diff gear cover
VIN.355796~ |
24739-85Z10-000 |
— | ||
|
9
|
9
24738-85Z00-000
Screw
|
24738-85Z00-000 |
— | ||
|
10
|
10
24702-84Z00-000
Ring, seal
|
24702-84Z00-000 |
— | ||
|
11
|
11
24705-85Z00-000
O ring
|
24705-85Z00-000 |
— | ||
|
12
|
12
23264-84Z00-000
Guide, thrust bearing
|
23264-84Z00-000 |
— | ||
|
13
|
13
23263-84Z00-000
Screw
|
23263-84Z00-000 |
— | ||
|
14
|
14
23265-84Z00-000
Bearing assy, thrust clutch
|
23265-84Z00-000 |
— | ||
|
15
|
15
23211-84Z00-000
Fork, cl release
|
23211-84Z00-000 |
— | ||
|
16
|
16
23209-84Z00-000
Screw
|
23209-84Z00-000 |
— | ||
|
17
|
17
23260-84Z00-000
Lever, release
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
23260-84Z00-000 |
— | ||
|
17
|
17
23260-84Z10-000
Lever, release
09 MODEL |
23260-84Z10-000 |
— | ||
|
18
|
18
24704-85Z00-000
Plug
|
24704-85Z00-000 |
— | ||
|
19
|
19
24861-85Z00-000
Magnet
|
24861-85Z00-000 |
— | ||
|
20
|
20
29430-85Z00-000
Gear assy, driven speedometer
|
29430-85Z00-000 |
— | ||
|
21
|
21
29428-85Z00-000
O ring
|
29428-85Z00-000 |
— | ||
|
22
|
22
29429-85Z00-000
Bolt
|
29429-85Z00-000 |
— | ||
|
23
|
23
37610-85Z00-000
Switch assy, back up light
|
37610-85Z00-000 |
— | ||
|
24
|
24
37609-85Z00-000
Washer
|
37609-85Z00-000 |
— |
