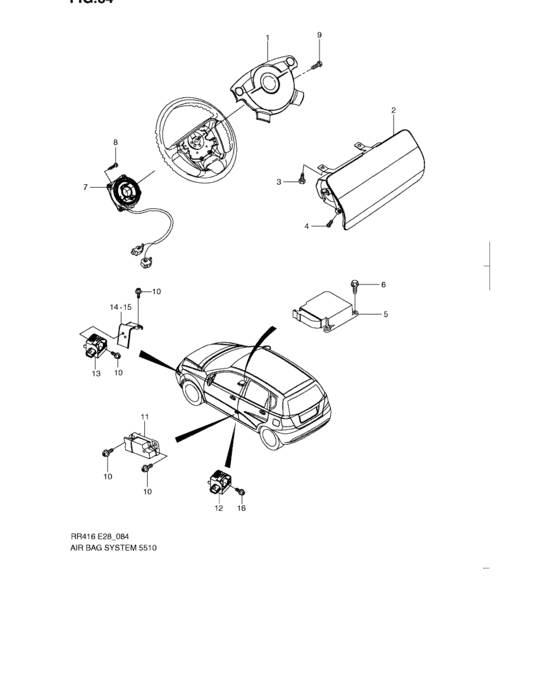

Air bag system (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48150-84Z00-000
Module, driver air bag
04 MODEL,05 MODEL |
48150-84Z00-000 |
— | ||
|
1
|
1
48150-84Z10-000
Module, driver air bag
06 MODEL,07 MODEL,08 MODEL |
48150-84Z10-000 |
— | ||
|
2
|
2
79310-84Z00-000
Module, passenger air bag
04 MODEL,05 MODEL |
79310-84Z00-000 |
— | ||
|
2
|
2
79310-84Z10-000
Module, passenger air bag
06 MODEL,07 MODEL,08 MODEL |
79310-84Z10-000 |
— | ||
|
3
|
3
73914-84Z00-000
Bolt
|
73914-84Z00-000 |
— | ||
|
4
|
4
73914-85Z10-000
Bolt
|
73914-85Z10-000 |
— | ||
|
5
|
5
38910-84Z00-000
Sensor, air bag
04 MODEL,05 MODEL |
38910-84Z00-000 |
— | ||
|
5
|
5
38910-84Z20-000
Sensor, air bag
06 MODEL,ID CODE:JS |
38910-84Z20-000 |
— | ||
|
5
|
5
38910-84Z30-000
Sensor, air bag
06 MODEL,07 MODEL,08 MODEL,ID CODE:JT |
38910-84Z30-000 |
— | ||
|
6
|
6
73914-85Z00-000
Bolt
|
73914-85Z00-000 |
— | ||
|
7
|
7
48113-84Z00-000
Spring assy, steering
04 MODEL,05 MODEL |
48113-84Z00-000 |
— | ||
|
7
|
7
48113-84Z21-000
Spring assy, steering
06 MODEL,N/CRUISE CONTROL |
48113-84Z21-000 |
— | ||
|
7
|
7
48113-84Z30-000
Spring assy, steering
07 MODEL,08 MODEL,N/CRUISE CONTROL |
48113-84Z30-000 |
— | ||
|
7
|
7
48113-84Z11-000
Spring assy, steering
06 MODEL,W/CRUISE CONTROL |
48113-84Z11-000 |
— | ||
|
7
|
7
48113-84Z40-000
Spring assy, steering
07 MODEL,08 MODEL,W/CRUISE CONTROL |
48113-84Z40-000 |
— | ||
|
8
|
8
48115-84Z00-000
Screw
|
48115-84Z00-000 |
— | ||
|
9
|
9
48212-84Z00-000
Bolt
|
48212-84Z00-000 |
— | ||
|
10
|
10
38941-86Z01-000
Bolt
06 MODEL,07 MODEL,08 MODEL |
38941-86Z01-000 |
— | ||
|
11
|
11
38930-84Z00-000
Sensor, air bag side
04 MODEL,05 MODEL |
38930-84Z00-000 |
— | ||
|
12
|
12
38930-84Z10-000
Sensor, a/b side
06 MODEL,07 MODEL,08 MODEL |
38930-84Z10-000 |
— | ||
|
13
|
13
38920-84Z00-000
Sensor, early severity
06 MODEL,07 MODEL,08 MODEL |
38920-84Z00-000 |
— | ||
|
14
|
14
38918-84Z00-000
Bracket, sensor protv rh
06 MODEL,07 MODEL,08 MODEL |
38918-84Z00-000 |
— | ||
|
15
|
15
38919-84Z00-000
Bracket, sensor protv lh
06 MODEL,07 MODEL,08 MODEL |
38919-84Z00-000 |
— | ||
|
16
|
16
38941-86Z00-000
Bolt
06 MODEL,07 MODEL,08 MODEL |
38941-86Z00-000 |
— |
