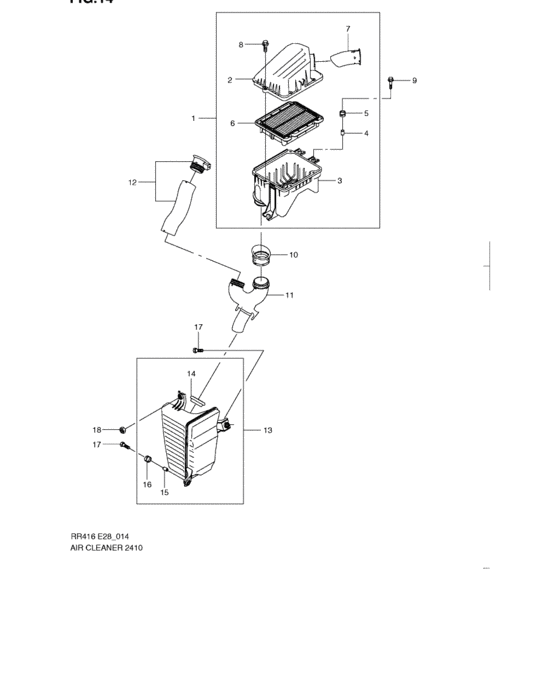

Air cleaner (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-84Z01-000
Cleaner assy, air
|
13700-84Z01-000 |
— | ||
|
2
|
2
13770-84Z00-000
Cap, air cleaner
|
13770-84Z00-000 |
— | ||
|
3
|
3
13710-84Z00-000
Case, air cleaner
|
13710-84Z00-000 |
— | ||
|
4
|
4
13877-86Z00-000
Spacer
|
13877-86Z00-000 |
— | ||
|
5
|
5
13878-86Z00-000
Grommet
|
13878-86Z00-000 |
— | ||
|
6
|
6
13780-84Z00-000
Element, air cleaner
|
13780-84Z00-000 |
— | ||
|
7
|
7
13773-84Z00-000
Joint, air cleaner
|
13773-84Z00-000 |
— | ||
|
8
|
8
13779-85Z00-000
Bolt
|
13779-85Z00-000 |
— | ||
|
9
|
9
13719-86Z00-000
Bolt
|
13719-86Z00-000 |
— | ||
|
10
|
10
13873-84Z00-000
Seal, inlet
|
13873-84Z00-000 |
— | ||
|
11
|
11
13871-84Z02-000
Duct, air inlet
|
13871-84Z02-000 |
— | ||
|
12
|
12
13876-84Z00-000
Hose assy, inlet
|
13876-84Z00-000 |
— | ||
|
13
|
13
13761-84Z02-000
Resonator assy
|
13761-84Z02-000 |
— | ||
|
14
|
14
13872-84Z00-000
Seal, resonator
|
13872-84Z00-000 |
— | ||
|
15
|
15
13877-86Z00-000
Spacer
|
13877-86Z00-000 |
— | ||
|
16
|
16
13878-86Z00-000
Grommet
|
13878-86Z00-000 |
— | ||
|
17
|
17
13719-86Z00-000
Bolt
|
13719-86Z00-000 |
— | ||
|
18
|
18
13768-84Z00-000
Nut
|
13768-84Z00-000 |
— |
