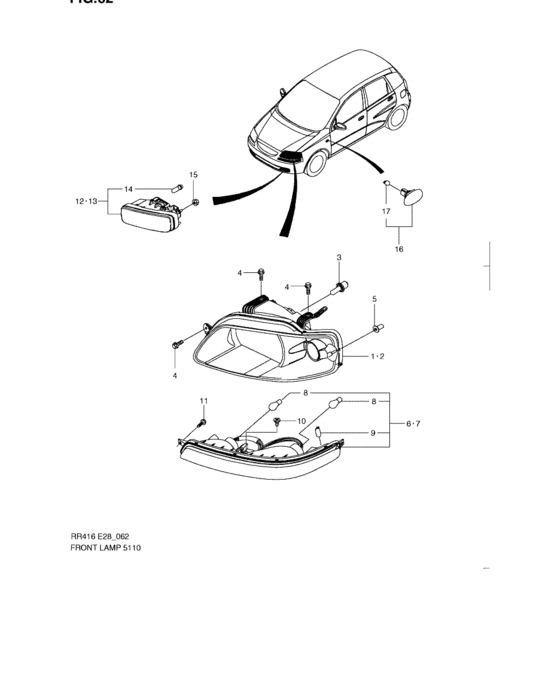

Front lamp (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-84Z00-000
Unit, headlamp rh
|
35120-84Z00-000 |
— | ||
|
2
|
2
35320-84Z00-000
Unit, headlamp lh
|
35320-84Z00-000 |
— | ||
|
3
|
3
35122-84Z00-000
Bulb
|
35122-84Z00-000 |
— | ||
|
4
|
4
39105-86Z10-000
Bolt
|
39105-86Z10-000 |
— | ||
|
5
|
5
35153-84Z00-000
Grommet
|
35153-84Z00-000 |
— | ||
|
6
|
6
35601-84Z00-000
Lamp assy, fr turn signal rh
|
35601-84Z00-000 |
— | ||
|
7
|
7
35602-84Z00-000
Lamp assy, fr turn signal lh
|
35602-84Z00-000 |
— | ||
|
8
|
8
35654-86Z00-000
Bulb
|
35654-86Z00-000 |
— | ||
|
9
|
9
36555-86Z00-000
Bulb
|
36555-86Z00-000 |
— | ||
|
10
|
10
77212-86Z00-000
Clip
|
77212-86Z00-000 |
— | ||
|
11
|
11
35625-84Z00-000
Screw
|
35625-84Z00-000 |
— | ||
|
12
|
12
35501-84Z00-000
Lamp assy, fr fog rh
W/FOG LAMP |
35501-84Z00-000 |
— | ||
|
13
|
13
35502-84Z00-000
Lamp assy, fr fog lh
W/FOG LAMP |
35502-84Z00-000 |
— | ||
|
14
|
14
35512-84Z00-000
Bulb
W/FOG LAMP |
35512-84Z00-000 |
— | ||
|
15
|
15
35549-84Z00-000
Nut
W/FOG LAMP |
35549-84Z00-000 |
— | ||
|
16
|
16
36410-84Z00-000
Lamp assy, side lamp
04 MODEL,05 MODEL |
36410-84Z00-000 |
— | ||
|
16
|
16
36410-84Z10-000
Lamp assy, side lamp
06 MODEL,07 MODEL,08 MODEL |
36410-84Z10-000 |
— | ||
|
17
|
17
36555-86Z00-000
Bulb
04 MODEL,05 MODEL,06 MODEL |
36555-86Z00-000 |
— | ||
|
17
|
17
36555-84Z00-000
Bulb
07 MODEL,08 MODEL |
36555-84Z00-000 |
— |
