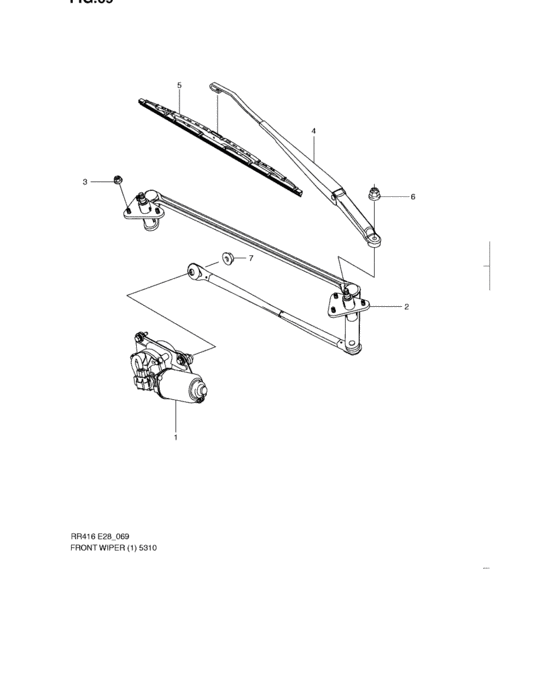

Front wiper (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-84Z01-000
Motor assy, wiper
|
38101-84Z01-000 |
— | ||
|
2
|
2
38102-84Z00-000
Link assy, wiper
|
38102-84Z00-000 |
— | ||
|
3
|
3
48232-86Z21-000
Nut
|
48232-86Z21-000 |
— | ||
|
4
|
4
38330-84Z00-000
Arm assy, wiper rh
04 MODEL,05 MODEL,06 MODEL,07 MODEL |
38330-84Z00-000 |
— | ||
|
4
|
4
38330-84Z01-000
Arm assy, wiper rh
08 MODEL |
38330-84Z01-000 |
— | ||
|
4
|
4
38310-84Z00-000
Arm assy, wiper lh
04 MODEL,05 MODEL |
38310-84Z00-000 |
— | ||
|
4
|
4
38310-84Z10-000
Arm assy, wiper lh
06 MODEL,07 MODEL |
38310-84Z10-000 |
— | ||
|
4
|
4
38310-84Z11-000
Arm assy, wiper lh
08 MODEL |
38310-84Z11-000 |
— | ||
|
5
|
5
38340-84Z12-000
Blade assy, wiper rh
04 MODEL,05 MODEL,06 MODEL,07 MODEL |
38340-84Z12-000 |
— | ||
|
5
|
5
38340-84Z13-000
Blade assy, wiper rh
08 MODEL |
38340-84Z13-000 |
— | ||
|
5
|
5
38340-84Z01-000
Blade assy, wiper lh
04 MODEL,05 MODEL,06 MODEL,07 MODEL |
38340-84Z01-000 |
— | ||
|
5
|
5
38340-84Z02-000
Blade assy, wiper lh
08 MODEL |
38340-84Z02-000 |
— | ||
|
6
|
6
38373-84Z00-000
Nut
|
38373-84Z00-000 |
— | ||
|
7
|
7
38278-84Z00-000
Nut
|
38278-84Z00-000 |
— |
