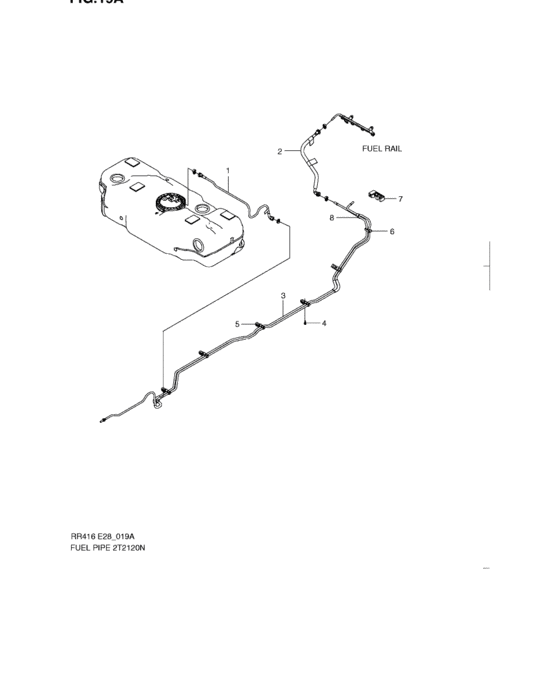

Fuel pipe (09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15812-84Z10-000
Pipe, fuel
|
15812-84Z10-000 |
— | ||
|
2
|
2
15815-84Z10-000
Pipe, fuel
|
15815-84Z10-000 |
— | ||
|
3
|
3
15811-84Z10-000
Pipe, fuel feed
|
15811-84Z10-000 |
— | ||
|
4
|
4
15879-84Z00-000
Screw
|
15879-84Z00-000 |
— | ||
|
5
|
5
15881-84Z00-000
Clip
|
15881-84Z00-000 |
— | ||
|
6
|
6
15883-84Z00-000
Clip
|
15883-84Z00-000 |
— | ||
|
7
|
7
15884-84Z00-000
Clip
|
15884-84Z00-000 |
— | ||
|
8
|
8
15885-84Z00-000
Clip
|
15885-84Z00-000 |
— |
