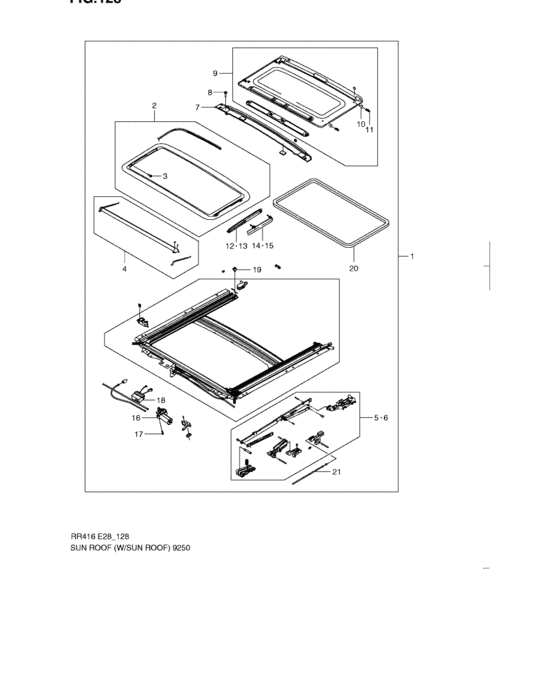

Sun roof (W/SUN ROOF) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78710-84Z00-000
Roof assy, sliding
04 MODEL,05 MODEL |
78710-84Z00-000 |
— | ||
|
1
|
1
78710-84Z10-000
Roof assy, sliding
06 MODEL,07 MODEL,08 MODEL |
78710-84Z10-000 |
— | ||
|
1
|
1
78710-84Z20-000
Roof assy, sliding
09 MODEL |
78710-84Z20-000 |
— | ||
|
2
|
2
78711-84Z00-000
Glass assy, sliding roof
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
78711-84Z00-000 |
— | ||
|
2
|
2
78711-84Z10-000
Glass assy, sliding roof
09 MODEL |
78711-84Z10-000 |
— | ||
|
3
|
3
78717-84Z00-000
Bolt
|
78717-84Z00-000 |
— | ||
|
4
|
4
78712-84Z00-000
Deflector
|
78712-84Z00-000 |
— | ||
|
5
|
5
78728-85Z01-000
Mechanism, rh
|
78728-85Z01-000 |
— | ||
|
6
|
6
78729-85Z01-000
Mechanism, lh
|
78729-85Z01-000 |
— | ||
|
7
|
7
78713-84Z00-000
Channel
|
78713-84Z00-000 |
— | ||
|
8
|
8
78717-85Z00-000
Screw
|
78717-85Z00-000 |
— | ||
|
9
|
9
78714-84Z00-000
Sunshade assy, sliding roof
04 MODEL,05 MODEL |
78714-84Z00-000 |
— | ||
|
9
|
9
78714-84Z10-000
Sunshade assy, sliding roof
06 MODEL,07 MODEL,08 MODEL,09 MODEL |
78714-84Z10-000 |
— | ||
|
9
|
9
78714-84Z20-000
Sunshade assy, sliding roof
09 MODEL,BEIGE |
78714-84Z20-000 |
— | ||
|
10
|
10
78715-85Z00-000
Spring
|
78715-85Z00-000 |
— | ||
|
11
|
11
78716-85Z01-000
Block
|
78716-85Z01-000 |
— | ||
|
12
|
12
78721-84Z00-000
Cover, inner rh
|
78721-84Z00-000 |
— | ||
|
13
|
13
78722-84Z00-000
Cover, inner lh
|
78722-84Z00-000 |
— | ||
|
14
|
14
78723-84Z00-000
Cover, outer rh
|
78723-84Z00-000 |
— | ||
|
15
|
15
78724-84Z00-000
Cover, outer lh
|
78724-84Z00-000 |
— | ||
|
16
|
16
78718-85Z00-000
Motor, sliding roof
|
78718-85Z00-000 |
— | ||
|
17
|
17
78719-86Z00-000
Screw
|
78719-86Z00-000 |
— | ||
|
18
|
18
78720-84Z00-000
Box, relay
|
78720-84Z00-000 |
— | ||
|
19
|
19
78719-85Z00-000
Stopper
|
78719-85Z00-000 |
— | ||
|
20
|
20
78719-84Z00-000
Trim, sliding roof
04 MODEL,05 MODEL |
78719-84Z00-000 |
— | ||
|
20
|
20
78719-84Z10-000
Trim, sliding roof
06 MODEL,07 MODEL,08 MODEL |
78719-84Z10-000 |
— | ||
|
20
|
20
78719-84Z20-000
Trim, sliding roof
09 MODEL,BEIGE |
78719-84Z20-000 |
— | ||
|
21
|
21
78725-85Z00-000
Cable
|
78725-85Z00-000 |
— |
