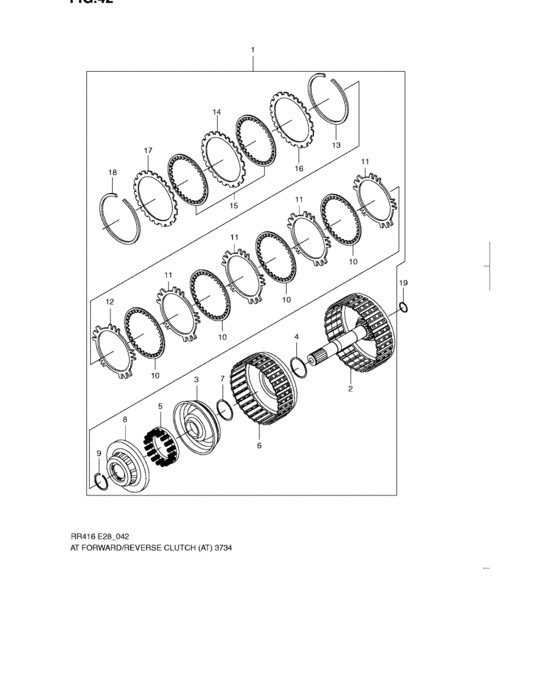

At forward/reverse clutch (AT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26610-84Z00-000
Clutch assy, fwd multiple disc
|
26610-84Z00-000 |
— | ||
|
2
|
2
26611-84Z00-000
Shaft assy
|
26611-84Z00-000 |
— | ||
|
3
|
3
26612-84Z00-000
Piston assy, fwd clutch
|
26612-84Z00-000 |
— | ||
|
4
|
4
26613-84Z00-000
O ring
|
26613-84Z00-000 |
— | ||
|
5
|
5
26614-84Z00-000
Spring assy, fwd clutch rtn
|
26614-84Z00-000 |
— | ||
|
6
|
6
26615-84Z00-000
Drum assy, fwd clutch
|
26615-84Z00-000 |
— | ||
|
7
|
7
26616-84Z00-000
O ring
|
26616-84Z00-000 |
— | ||
|
8
|
8
26617-84Z00-000
Balancer, clutch no.1
|
26617-84Z00-000 |
— | ||
|
9
|
9
26618-84Z00-000
Ring, snap
|
26618-84Z00-000 |
— | ||
|
10
|
10
26619-84Z00-000
Disc, clutch
|
26619-84Z00-000 |
— | ||
|
11
|
11
26620-84Z00-000
Plate, clutch no.1
|
26620-84Z00-000 |
— | ||
|
12
|
12
26621-84Z00-300
Flange, clutch
|
26621-84Z00-300 |
— | ||
|
12
|
12
26621-84Z00-320
Flange, clutch
|
26621-84Z00-320 |
— | ||
|
12
|
12
26621-84Z00-340
Flange, clutch
|
26621-84Z00-340 |
— | ||
|
12
|
12
26621-84Z00-360
Flange, clutch
|
26621-84Z00-360 |
— | ||
|
12
|
12
26621-84Z00-310
Flange, clutch
|
26621-84Z00-310 |
— | ||
|
12
|
12
26621-84Z00-330
Flange, clutch
|
26621-84Z00-330 |
— | ||
|
12
|
12
26621-84Z00-350
Flange, clutch
|
26621-84Z00-350 |
— | ||
|
13
|
13
26622-84Z00-000
Ring, snap
|
26622-84Z00-000 |
— | ||
|
14
|
14
26623-84Z00-000
Plate, clutch no.3
|
26623-84Z00-000 |
— | ||
|
15
|
15
26624-84Z00-000
Disc, clutch
|
26624-84Z00-000 |
— | ||
|
16
|
16
26625-84Z00-000
Flange, clutch
|
26625-84Z00-000 |
— | ||
|
17
|
17
26625-84Z00-000
Flange, clutch
|
26625-84Z00-000 |
— | ||
|
17
|
17
26626-84Z00-300
Flange, clutch
|
26626-84Z00-300 |
— | ||
|
17
|
17
26626-84Z00-320
Flange, clutch
|
26626-84Z00-320 |
— | ||
|
17
|
17
26626-84Z00-340
Flange, clutch
|
26626-84Z00-340 |
— | ||
|
18
|
18
26627-84Z00-000
Ring, snap
|
26627-84Z00-000 |
— | ||
|
19
|
19
26628-84Z00-000
Ring, seal
|
26628-84Z00-000 |
— |
