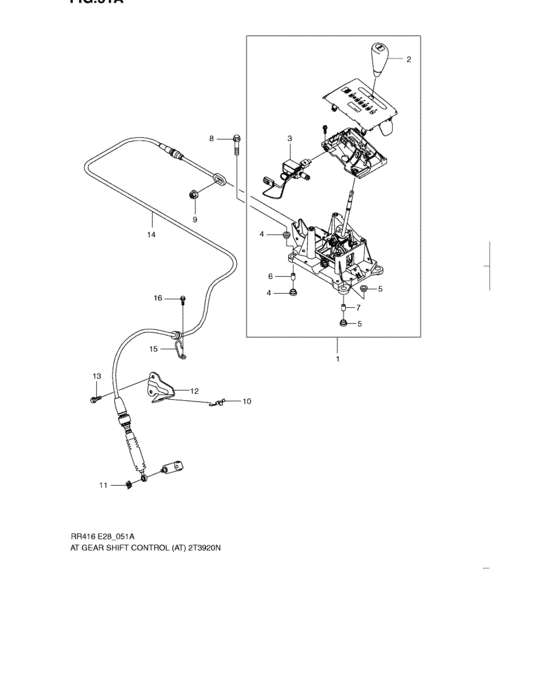

At gear shift control (AT:09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-84Z41-000
Lever assy, selector cont
CONSOLE STD |
28100-84Z41-000 |
— | ||
|
1
|
1
28100-84Z51-000
Lever assy, selector cont
CONSOLE DELUXE |
28100-84Z51-000 |
— | ||
|
2
|
2
28160-84Z00-000
Handle assy, selector cont
|
28160-84Z00-000 |
— | ||
|
3
|
3
28610-85Z11-000
Solenoid assy, selector lever
|
28610-85Z11-000 |
— | ||
|
4
|
4
28094-85Z10-000
Bush, front
|
28094-85Z10-000 |
— | ||
|
5
|
5
28094-85Z20-000
Bush, rear
|
28094-85Z20-000 |
— | ||
|
6
|
6
28082-85Z10-000
Bush, front
|
28082-85Z10-000 |
— | ||
|
7
|
7
28082-85Z20-000
Bush, rear
|
28082-85Z20-000 |
— | ||
|
8
|
8
13169-86Z00-000
Bolt
|
13169-86Z00-000 |
— | ||
|
9
|
9
13118-84Z00-000
Nut
|
13118-84Z00-000 |
— | ||
|
10
|
10
28208-86Z00-000
E ring
|
28208-86Z00-000 |
— | ||
|
11
|
11
28207-86Z00-000
E ring
|
28207-86Z00-000 |
— | ||
|
12
|
12
28221-84Z00-000
Fastener, selector cable
|
28221-84Z00-000 |
— | ||
|
13
|
13
28223-84Z00-000
Bolt
|
28223-84Z00-000 |
— | ||
|
14
|
14
28210-84Z21-000
Cable assy, selector cont
|
28210-84Z21-000 |
— | ||
|
15
|
15
28295-84Z00-000
Clamp
|
28295-84Z00-000 |
— | ||
|
16
|
16
18549-86Z00-000
Bolt
|
18549-86Z00-000 |
— |
