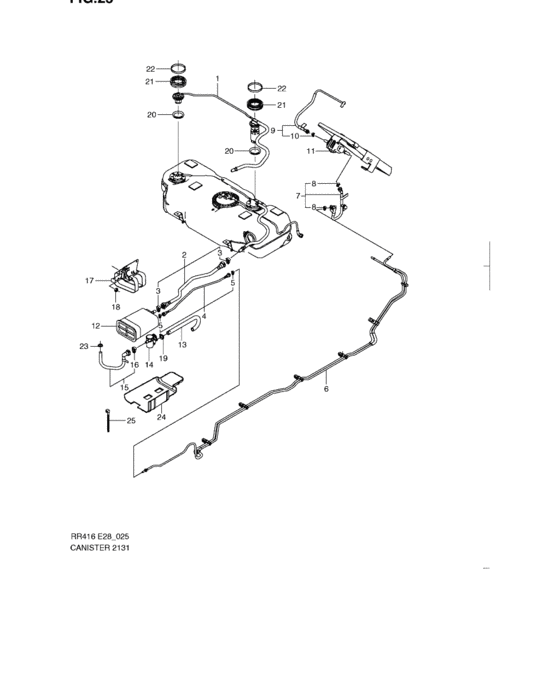

Canister/fuel vacuum (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18565-84Z00-000
Pipe, fuel vapor
|
18565-84Z00-000 |
— | ||
|
2
|
2
18578-84Z01-000
Pipe, canister vapor
|
18578-84Z01-000 |
— | ||
|
3
|
3
15816-84Z00-000
Retainer
|
15816-84Z00-000 |
— | ||
|
4
|
4
18561-84Z01-000
Pipe, purge rr
|
18561-84Z01-000 |
— | ||
|
5
|
5
15816-85Z00-000
Reatainer
|
15816-85Z00-000 |
— | ||
|
6
|
6
18562-84Z01-000
Pipe, purge ctr
|
18562-84Z01-000 |
— | ||
|
7
|
7
18546-84Z01-000
Pipe, purge fr
|
18546-84Z01-000 |
— | ||
|
8
|
8
15816-85Z00-000
Reatainer
|
15816-85Z00-000 |
— | ||
|
9
|
9
18566-84Z00-000
Pipe, purge eng side
|
18566-84Z00-000 |
— | ||
|
10
|
10
15816-85Z00-000
Reatainer
|
15816-85Z00-000 |
— | ||
|
11
|
11
18119-85Z00-000
Valve, cstr solenoid
|
18119-85Z00-000 |
— | ||
|
12
|
12
18560-85Z00-000
Canister
|
18560-85Z00-000 |
— | ||
|
13
|
13
18563-84Z00-000
Hose, air vent
|
18563-84Z00-000 |
— | ||
|
14
|
14
18117-85Z00-000
Valve, canister solenoid
|
18117-85Z00-000 |
— | ||
|
15
|
15
18567-84Z01-000
Hose, air vent
|
18567-84Z01-000 |
— | ||
|
16
|
16
15816-84Z00-000
Retainer
|
15816-84Z00-000 |
— | ||
|
17
|
17
18570-84Z10-000
Bracket, canister
|
18570-84Z10-000 |
— | ||
|
18
|
18
89210-86Z00-000
Nut
|
89210-86Z00-000 |
— | ||
|
19
|
19
18569-85Z00-000
Clip
|
18569-85Z00-000 |
— | ||
|
20
|
20
89281-85Z00-000
Seal
|
89281-85Z00-000 |
— | ||
|
21
|
21
89282-85Z00-000
Ring
|
89282-85Z00-000 |
— | ||
|
22
|
22
89283-85Z00-000
Clamp
|
89283-85Z00-000 |
— | ||
|
23
|
23
78834-86Z00-000
Grommet
|
78834-86Z00-000 |
— | ||
|
24
|
24
18577-84Z00-000
Shield, canister
|
18577-84Z00-000 |
— | ||
|
25
|
25
36649-86Z00-000
Clamp
|
36649-86Z00-000 |
— |
