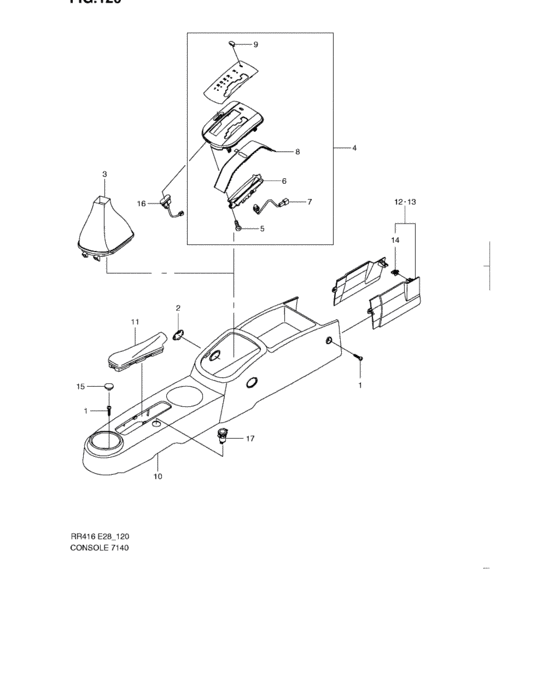

Console (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75817-84Z00-000
Screw
|
75817-84Z00-000 |
— | ||
|
2
|
2
75818-84Z00-000
Plug
04 MODEL,05 MODEL |
75818-84Z00-000 |
— | ||
|
2
|
2
75818-84Z10-000
Plug
06 MODEL,07 MODEL,08 MODEL |
75818-84Z10-000 |
— | ||
|
4
|
4
28150-84Z00-000
Cap
04 MODEL,05 MODEL,06 MODEL:AT,W/28180-84Z00 |
28150-84Z00-000 |
— | ||
|
4
|
4
28150-84Z30-000
Cap
04 MODEL,05 MODEL,06 MODEL:AT,W/28180-84Z10 |
28150-84Z30-000 |
— | ||
|
4
|
4
28150-84Z20-000
Cap
07 MODEL,08 MODEL:AT |
28150-84Z20-000 |
— | ||
|
5
|
5
28158-84Z00-000
Screw
AT |
28158-84Z00-000 |
— | ||
|
6
|
6
28157-84Z00-000
Cap
AT |
28157-84Z00-000 |
— | ||
|
7
|
7
28180-84Z00-000
Lamp
04 MODEL,05 MODEL:AT |
28180-84Z00-000 |
— | ||
|
7
|
7
28180-84Z10-000
Lamp
06 MODEL,07 MODEL,08 MODEL:AT |
28180-84Z10-000 |
— | ||
|
8
|
8
28156-84Z00-000
Slider
AT |
28156-84Z00-000 |
— | ||
|
9
|
9
28159-84Z00-000
Plug, cap
04 MODEL,05 MODEL,06 MODEL:AT |
28159-84Z00-000 |
— | ||
|
9
|
9
28159-84Z10-000
Plug, cap
07 MODEL,08 MODEL:AT |
28159-84Z10-000 |
— | ||
|
10
|
10
75811-84Z00-000
Box, console
04 MODEL,05 MODEL |
75811-84Z00-000 |
— | ||
|
10
|
10
75811-84Z10-000
Box, console
06 MODEL |
75811-84Z10-000 |
— | ||
|
10
|
10
75811-84Z20-000
Box, console
07 MODEL,08 MODEL |
75811-84Z20-000 |
— | ||
|
11
|
11
54515-84Z00-000
Boot, parking brake
04 MODEL,05 MODEL |
54515-84Z00-000 |
— | ||
|
11
|
11
54515-84Z10-000
Boot, parking brake
06 MODEL,07 MODEL,08 MODEL |
54515-84Z10-000 |
— | ||
|
12
|
12
75829-84Z00-000
Extension, console fr rh
04 MODEL,05 MODEL |
75829-84Z00-000 |
— | ||
|
12
|
12
75829-84Z10-000
Extension, console fr rh
06 MODEL,07 MODEL,08 MODEL |
75829-84Z10-000 |
— | ||
|
13
|
13
75830-84Z00-000
Extension, console fr lh
04 MODEL,05 MODEL |
75830-84Z00-000 |
— | ||
|
13
|
13
75830-84Z10-000
Extension, console fr lh
06 MODEL,07 MODEL,08 MODEL |
75830-84Z10-000 |
— | ||
|
14
|
14
73317-84Z00-000
Clip
|
73317-84Z00-000 |
— | ||
|
15
|
15
75819-84Z00-000
Plug, console rr
04 MODEL,05 MODEL |
75819-84Z00-000 |
— | ||
|
15
|
15
75819-84Z10-000
Plug, console rr
06 MODEL,07 MODEL,08 MODEL |
75819-84Z10-000 |
— | ||
|
16
|
16
37459-84Z00-000
Switch, hold mode
AT |
37459-84Z00-000 |
— | ||
|
17
|
17
39410-84Z00-000
Socket, adapter
04 MODEL,05 MODEL |
39410-84Z00-000 |
— | ||
|
17
|
17
39410-84Z10-000
Socket, adapter
06 MODEL,07 MODEL,08 MODEL |
39410-84Z10-000 |
— |
