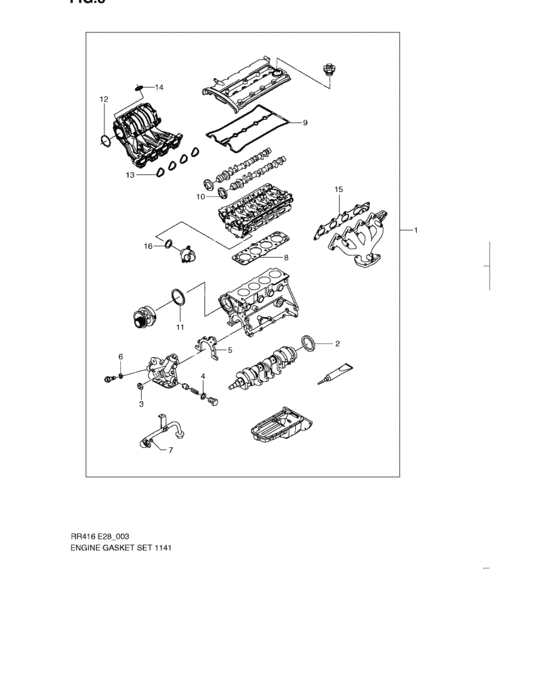

Engine gasket set (ENGINE GASKET SET) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-84Z00-000
Gasket set, engine
04 MODEL,05 MODEL |
11400-84Z00-000 |
— | ||
|
1
|
1
11400-84Z10-000
Gasket set, engine
06 MODEL,07 MODEL,08 MODEL |
11400-84Z10-000 |
— | ||
|
2
|
2
12227-84Z00-000
Seal, crank rear oil
|
12227-84Z00-000 |
— | ||
|
3
|
3
12228-84Z00-000
Seal, crank front oil
|
12228-84Z00-000 |
— | ||
|
4
|
4
16148-84Z00-000
Ring, seal
|
16148-84Z00-000 |
— | ||
|
5
|
5
16119-84Z03-000
Gasket, oil pump
|
16119-84Z03-000 |
— | ||
|
6
|
6
11518-86Z00-000
Washer
|
11518-86Z00-000 |
— | ||
|
7
|
7
16827-84Z00-000
Ring, seal
|
16827-84Z00-000 |
— | ||
|
8
|
8
11141-84Z00-000
Gasket, cyl head
04 MODEL,05 MODEL |
11141-84Z00-000 |
— | ||
|
8
|
8
11141-84Z10-000
Gasket, cyl head
06 MODEL |
11141-84Z10-000 |
— | ||
|
8
|
8
11141-84Z11-000
Gasket, cyl head
07 MODEL,08 MODEL |
11141-84Z11-000 |
— | ||
|
8
|
8
11141-84Z20-000
Gasket, Cylinder Head Cover
09 MODEL |
11141-84Z20-000 |
— | ||
|
9
|
9
11189-84Z00-000
Gasket, cyl head cover
|
11189-84Z00-000 |
— | ||
|
10
|
10
12744-84Z00-000
Seal, camshaft oil
|
12744-84Z00-000 |
— | ||
|
11
|
11
17431-84Z00-000
O ring, eater pump
|
17431-84Z00-000 |
— | ||
|
12
|
12
13421-84Z00-000
Gasket, throttle body
|
13421-84Z00-000 |
— | ||
|
13
|
13
13119-84Z00-000
Gasket, intake manifold
|
13119-84Z00-000 |
— | ||
|
14
|
14
18532-84Z00-000
Seal, egr pipe
|
18532-84Z00-000 |
— | ||
|
15
|
15
14141-84Z00-000
Gasket, exhaust manifold
|
14141-84Z00-000 |
— | ||
|
16
|
16
17699-84Z00-000
Gasket, thermostat case
|
17699-84Z00-000 |
— |
