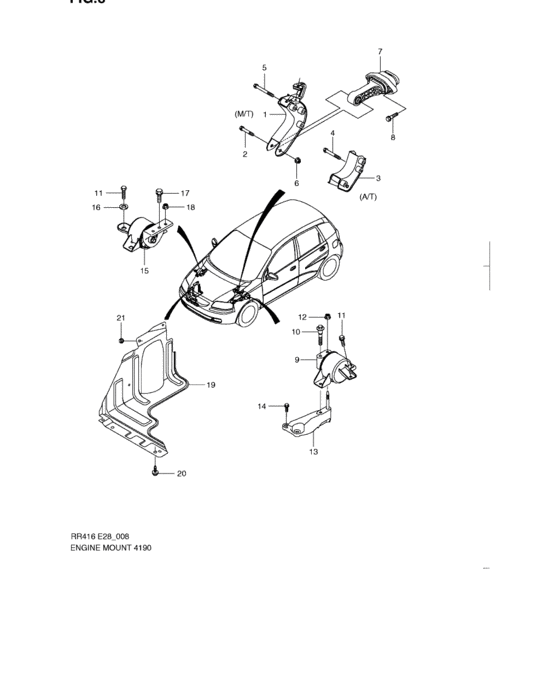

Engine mount (ENGINE MOUNT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
11740-84Z10-000
Bracket, eng rr mtg
AT |
11740-84Z10-000 |
— | ||
|
4
|
4
95112-86Z00-000
Bolt
AT |
95112-86Z00-000 |
— | ||
|
5
|
5
11749-84Z00-000
Bolt
|
11749-84Z00-000 |
— | ||
|
6
|
6
11747-84Z00-000
Nut
|
11747-84Z00-000 |
— | ||
|
7
|
7
11910-84Z00-000
Rod assy, reaction
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
11910-84Z00-000 |
— | ||
|
7
|
7
11910-84Z10-000
Rod assy, reaction
09 MODEL |
11910-84Z10-000 |
— | ||
|
8
|
8
11745-84Z00-000
Bolt
|
11745-84Z00-000 |
— | ||
|
9
|
9
11620-84Z10-000
Mounting, eng lh
AT:04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
11620-84Z10-000 |
— | ||
|
9
|
9
11620-84Z20-000
Mounting, eng lh
09 MODEL |
11620-84Z20-000 |
— | ||
|
10
|
10
11627-84Z00-000
Bolt
|
11627-84Z00-000 |
— | ||
|
11
|
11
11619-84Z00-000
Bolt
|
11619-84Z00-000 |
— | ||
|
11
|
11
48523-86Z00-000
Bolt
VIN.244983~ |
48523-86Z00-000 |
— | ||
|
12
|
12
11629-84Z00-000
Nut
|
11629-84Z00-000 |
— | ||
|
13
|
13
11650-84Z10-000
Bracket, eng lh mtg
AT |
11650-84Z10-000 |
— | ||
|
14
|
14
11619-84Z00-000
Bolt
AT |
11619-84Z00-000 |
— | ||
|
15
|
15
11610-84Z10-000
Mounting, eng rh
AT:04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
11610-84Z10-000 |
— | ||
|
15
|
15
11610-84Z30-000
Mounting, eng rh
AT:09 MODEL:VIN.~696561 |
11610-84Z30-000 |
— | ||
|
15
|
15
11610-84Z50-000
Mounting, eng rh
AT:09 MODEL:VIN.696562~ |
11610-84Z50-000 |
— | ||
|
16
|
16
11618-84Z00-000
Washer
|
11618-84Z00-000 |
— | ||
|
17
|
17
11646-84Z00-000
Bolt
|
11646-84Z00-000 |
— | ||
|
18
|
18
11648-86Z00-000
Nut
|
11648-86Z00-000 |
— | ||
|
19
|
19
72381-84Z00-000
Deflector, water rh
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
72381-84Z00-000 |
— | ||
|
19
|
19
72381-84Z10-000
Deflector, water rh
09 MODEL |
72381-84Z10-000 |
— | ||
|
19
|
19
72381-84Z20-000
Deflector, water rh
09 MODEL,ID CODE:FA |
72381-84Z20-000 |
— | ||
|
19
|
19
72381-84Z30-000
Deflector, water rh
09 MODEL,ID CODE:BM |
72381-84Z30-000 |
— | ||
|
20
|
20
77212-84Z00-000
Bolt
|
77212-84Z00-000 |
— | ||
|
21
|
21
89210-86Z00-000
Nut
04 MODEL,05 MODEL,06 MODEL,07 MODEL,08 MODEL |
89210-86Z00-000 |
— | ||
|
21
|
21
17928-84Z00-000
Nut
09 MODEL |
17928-84Z00-000 |
— |
