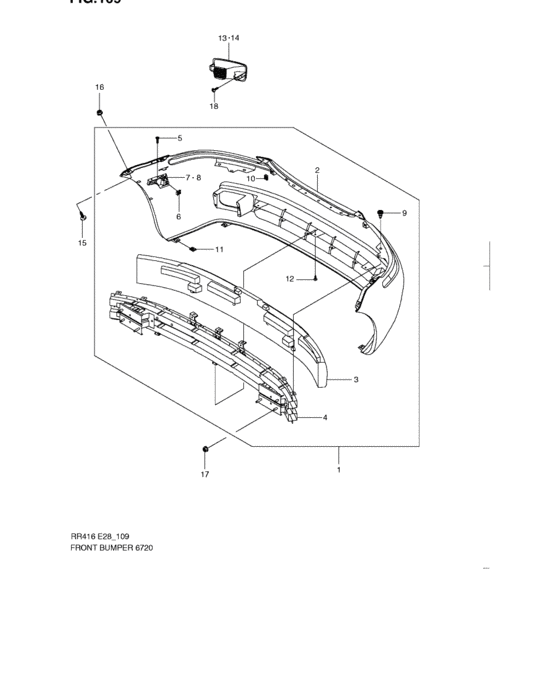

Front bumper (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71700-84Z00-000
Bumper assy, front
|
71700-84Z00-000 |
— | ||
|
2
|
2
71711-84Z00-000
Bumper, front
|
71711-84Z00-000 |
— | ||
|
3
|
3
71761-84Z00-000
Absorber, fr bumper
|
71761-84Z00-000 |
— | ||
|
4
|
4
71720-84Z00-000
Member, fr bumper
|
71720-84Z00-000 |
— | ||
|
5
|
5
71753-86Z00-000
Screw
|
71753-86Z00-000 |
— | ||
|
6
|
6
71819-86Z00-000
Nut
|
71819-86Z00-000 |
— | ||
|
7
|
7
71751-84Z00-000
Bracket, fr bumper side rh
|
71751-84Z00-000 |
— | ||
|
8
|
8
71752-84Z00-000
Bracket, fr bumper side lh
|
71752-84Z00-000 |
— | ||
|
9
|
9
77212-86Z00-000
Clip
|
77212-86Z00-000 |
— | ||
|
10
|
10
71718-84Z00-000
Nut
|
71718-84Z00-000 |
— | ||
|
11
|
11
71712-86Z00-000
Nut
|
71712-86Z00-000 |
— | ||
|
12
|
12
71719-84Z00-000
Screw
|
71719-84Z00-000 |
— | ||
|
13
|
13
71715-84Z00-000
Cover, fog lamp rh
N/FOG LAMP |
71715-84Z00-000 |
— | ||
|
14
|
14
71716-84Z00-000
Cover, fog lamp lh
N/FOG LAMP |
71716-84Z00-000 |
— | ||
|
15
|
15
72319-86Z01-000
Screw
|
72319-86Z01-000 |
— | ||
|
16
|
16
71719-86Z00-000
Nut
|
71719-86Z00-000 |
— | ||
|
17
|
17
71727-85Z00-000
Nut
|
71727-85Z00-000 |
— | ||
|
18
|
18
71719-84Z00-000
Screw
N/FOG LAMP |
71719-84Z00-000 |
— |
