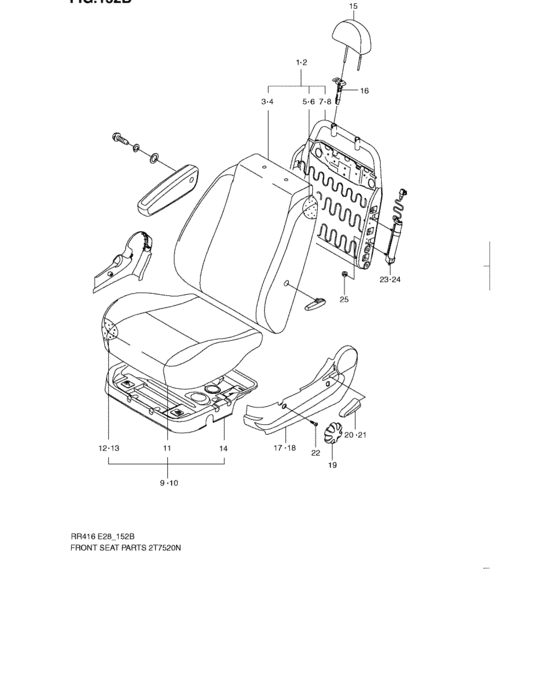

Front seat parts (09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85301-84ZB0-000
Seat assy, fr back rh
CLOTH SEAT |
85301-84ZB0-000 |
— | ||
|
1
|
1
85301-84ZC0-000
Seat assy, fr back rh
|
85301-84ZC0-000 |
— | ||
|
1
|
1
85301-84ZD0-000
Seat assy, fr back rh
LEATHER SEAT |
85301-84ZD0-000 |
— | ||
|
1
|
1
85301-84ZE0-000
Seat assy, fr back rh
LEATHER SEAT,BEIGE |
85301-84ZE0-000 |
— | ||
|
2
|
2
85301-84Z70-000
Seat assy, fr back lh
CLOTH SEAT |
85301-84Z70-000 |
— | ||
|
2
|
2
85301-84Z80-000
Seat assy, fr back rh
LEATHER SEAT |
85301-84Z80-000 |
— | ||
|
2
|
2
85301-84Z90-000
Seat assy, fr back rh
LEATHER SEAT,BEIGE |
85301-84Z90-000 |
— | ||
|
2
|
2
85301-84ZA0-000
Seat assy, fr back rh
|
85301-84ZA0-000 |
— | ||
|
3
|
3
85380-84Z20-000
Trim, fr back rh
|
85380-84Z20-000 |
— | ||
|
3
|
3
85380-84Z30-000
Trim, fr back rh
LEATHER SEAT |
85380-84Z30-000 |
— | ||
|
3
|
3
85380-84Z40-000
Trim, fr back rh
LEATHER SEAT,BEIGE |
85380-84Z40-000 |
— | ||
|
4
|
4
85880-84Z50-000
Trim, fr back lh
N/SIDE AIR BAG |
85880-84Z50-000 |
— | ||
|
4
|
4
85880-84Z60-000
Trim, fr back lh
W/SIDE AIR BAG |
85880-84Z60-000 |
— | ||
|
4
|
4
85880-84Z30-000
Trim, fr back lh
CLOTH SEAT BEIGE |
85880-84Z30-000 |
— | ||
|
4
|
4
85880-84Z40-000
Trim, fr back lh
LEATHER SEAT |
85880-84Z40-000 |
— | ||
|
4
|
4
85880-84Z70-000
Trim, fr back lh
LEATHER SEAT,BEIGE |
85880-84Z70-000 |
— | ||
|
5
|
5
85305-84Z30-000
Pad, fr back rh
|
85305-84Z30-000 |
— | ||
|
6
|
6
85305-84Z20-000
Pad, fr back lh
|
85305-84Z20-000 |
— | ||
|
7
|
7
85810-84Z50-000
Frame, fr back rh
|
85810-84Z50-000 |
— | ||
|
8
|
8
85810-84Z60-000
Frame, fr back lh
|
85810-84Z60-000 |
— | ||
|
9
|
9
85101-84Z30-000
Seat assy, fr cush rh
|
85101-84Z30-000 |
— | ||
|
9
|
9
85101-84Z00-000
Seat assy, fr cush rh
CLOTH SEAT |
85101-84Z00-000 |
— | ||
|
9
|
9
85101-84Z50-000
Seat assy, fr cush rh
LEATHER SEAT,BEIGE |
85101-84Z50-000 |
— | ||
|
10
|
10
85102-84Z40-000
Seat assy, fr cush lh
|
85102-84Z40-000 |
— | ||
|
10
|
10
85101-84Z20-000
Seat assy, fr cush rh
CLOTH SEAT |
85101-84Z20-000 |
— | ||
|
10
|
10
85101-84Z30-000
Seat assy, fr cush rh
LEATHER SEAT |
85101-84Z30-000 |
— | ||
|
11
|
11
85705-84Z40-000
Trim, fr seat cush lh
|
85705-84Z40-000 |
— | ||
|
11
|
11
85705-84Z20-000
Trim, fr seat cush lh
CLOTH SEAT |
85705-84Z20-000 |
— | ||
|
11
|
11
85705-84Z30-000
Trim, fr seat cush lh
LEATHER SEAT |
85705-84Z30-000 |
— | ||
|
12
|
12
85180-84Z10-000
Pad, fr seat cush rh
|
85180-84Z10-000 |
— | ||
|
13
|
13
85780-84Z10-000
Pad, fr seat cush lh
|
85780-84Z10-000 |
— | ||
|
14
|
14
85710-84Z20-000
Frame, fr seat cush lh
|
85710-84Z20-000 |
— | ||
|
15
|
15
86401-84Z90-000
Headrestraint assy, fr seat
|
86401-84Z90-000 |
— | ||
|
15
|
15
86401-84Z60-000
Headrestraint assy, fr seat
CLOTH SEAT |
86401-84Z60-000 |
— | ||
|
15
|
15
86401-84Z50-000
Headrestraint assy, fr seat
CLOTH SEAT,BEIGE |
86401-84Z50-000 |
— | ||
|
15
|
15
86401-84Z70-000
Headrestraint assy, fr seat
LEATHER SEAT |
86401-84Z70-000 |
— | ||
|
15
|
15
86401-84Z80-000
Headrestraint assy, fr seat
LEATHER SEAT,BEIGE |
86401-84Z80-000 |
— | ||
|
16
|
16
85341-84Z30-000
Guide, restraint
|
85341-84Z30-000 |
— | ||
|
16
|
16
85341-84Z40-000
Guide, restraint
BEIGE |
85341-84Z40-000 |
— | ||
|
16
|
16
85341-84Z00-000
Guide, headrestraint
LOCK |
85341-84Z00-000 |
— | ||
|
16
|
16
85341-84Z20-000
Guide, headrestraint
LOCK,BEIGE |
85341-84Z20-000 |
— | ||
|
17
|
17
85221-84Z30-000
Cover, fr seat rh
|
85221-84Z30-000 |
— | ||
|
17
|
17
85221-84Z40-000
Cover, fr seat rh
BEIGE |
85221-84Z40-000 |
— | ||
|
18
|
18
85721-84Z30-000
Cover, fr seat lh
|
85721-84Z30-000 |
— | ||
|
18
|
18
85721-84Z40-000
Cover, fr seat lh
BEIGE |
85721-84Z40-000 |
— | ||
|
19
|
19
86170-84Z00-000
Knob
|
86170-84Z00-000 |
— | ||
|
19
|
19
86170-84Z10-000
Knob
BEIGE |
86170-84Z10-000 |
— | ||
|
20
|
20
85211-84Z00-000
Grip, recl fr seat rh
|
85211-84Z00-000 |
— | ||
|
20
|
20
85211-84Z10-000
Grip, recl fr seat rh
BEIGE |
85211-84Z10-000 |
— | ||
|
21
|
21
85711-84Z00-000
Grip, recl fr seat lh
|
85711-84Z00-000 |
— | ||
|
21
|
21
85711-84Z10-000
Grip, recl fr seat lh
BEIGE |
85711-84Z10-000 |
— | ||
|
22
|
22
84912-86Z00-000
Screw
|
84912-86Z00-000 |
— | ||
|
23
|
23
85350-84Z20-000
Module assy, air bag side rh
|
85350-84Z20-000 |
— | ||
|
24
|
24
85850-84Z10-000
Module assy, air bag side lh
|
85850-84Z10-000 |
— | ||
|
25
|
25
54117-86Z00-000
Nut
|
54117-86Z00-000 |
— |
