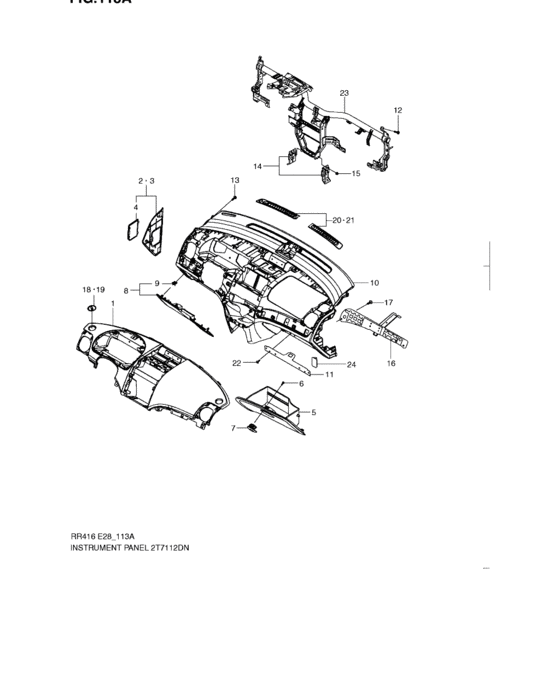

Instrument panel (09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73110-84Z20-000
Panel, instrument
|
73110-84Z20-000 |
— | ||
|
2
|
2
73831-84Z40-000
Cap, i/p upr rh
|
73831-84Z40-000 |
— | ||
|
2
|
2
73831-84Z50-000
Cap, i/p upr rh
COLOR BEIGE |
73831-84Z50-000 |
— | ||
|
3
|
3
73832-84Z31-000
Cap, i/p upr lh
|
73832-84Z31-000 |
— | ||
|
3
|
3
73832-84Z41-000
Cap, i/p upr lh
COLOR BEIGE |
73832-84Z41-000 |
— | ||
|
4
|
4
73871-84Z01-000
Cover, fuse box
|
73871-84Z01-000 |
— | ||
|
4
|
4
73871-84Z11-000
Cover, fuse box
COLOR BEIGE |
73871-84Z11-000 |
— | ||
|
5
|
5
73410-84Z20-000
Box, glove
|
73410-84Z20-000 |
— | ||
|
5
|
5
73410-84Z30-000
Box, glove
COLOR BEIGE |
73410-84Z30-000 |
— | ||
|
6
|
6
73829-86Z00-000
Screw
|
73829-86Z00-000 |
— | ||
|
7
|
7
73430-84Z20-000
Lock, glove box
|
73430-84Z20-000 |
— | ||
|
7
|
7
73430-84Z30-000
Lock, glove box
COLOR BEIGE |
73430-84Z30-000 |
— | ||
|
8
|
8
73810-84Z20-000
Cover, i/p lower
|
73810-84Z20-000 |
— | ||
|
8
|
8
73810-84Z30-000
Cover, i/p lower
COLOR BEIGE |
73810-84Z30-000 |
— | ||
|
9
|
9
75817-86Z00-000
Clip
|
75817-86Z00-000 |
— | ||
|
10
|
10
73110-84Z30-000
Panel, instrument
|
73110-84Z30-000 |
— | ||
|
10
|
10
73110-84Z40-000
Panel, instrument
COLOR BEIGE |
73110-84Z40-000 |
— | ||
|
11
|
11
73811-84Z01-000
Reinf assy, glove box lower
|
73811-84Z01-000 |
— | ||
|
12
|
12
38861-84Z10-000
Screw
|
38861-84Z10-000 |
— | ||
|
13
|
13
37461-86Z00-000
Screw, tie bar
|
37461-86Z00-000 |
— | ||
|
14
|
14
73249-84Z00-000
Reinf, support member
|
73249-84Z00-000 |
— | ||
|
15
|
15
48232-86Z21-000
Nut
|
48232-86Z21-000 |
— | ||
|
16
|
16
73830-84Z10-000
Reinf, glove box upr
|
73830-84Z10-000 |
— | ||
|
17
|
17
37461-86Z00-000
Screw, tie bar
|
37461-86Z00-000 |
— | ||
|
18
|
18
39231-84Z00-000
Grille assy, defroster side rh
|
39231-84Z00-000 |
— | ||
|
19
|
19
39232-84Z00-000
Grille assy, defroster side lh
|
39232-84Z00-000 |
— | ||
|
20
|
20
73112-84Z00-000
Grille assy, defroster ctr rh
COLOR BEIGE |
73112-84Z00-000 |
— | ||
|
20
|
20
73112-84Z10-000
Grille assy, defroster ctr rh
|
73112-84Z10-000 |
— | ||
|
21
|
21
73113-84Z00-000
Grille assy, defroster ctr lh
|
73113-84Z00-000 |
— | ||
|
21
|
21
73113-84Z10-000
Grille assy, defroster ctr lh
COLOR BEIGE |
73113-84Z10-000 |
— | ||
|
22
|
22
38861-84Z10-000
Screw
|
38861-84Z10-000 |
— | ||
|
23
|
23
73200-84Z20-000
Member, steering support
|
73200-84Z20-000 |
— | ||
|
24
|
24
37285-84Z30-000
Cover, blank
COLOR BEIGE |
37285-84Z30-000 |
— | ||
|
24
|
24
37285-84Z40-000
Cover, blank
|
37285-84Z40-000 |
— |
