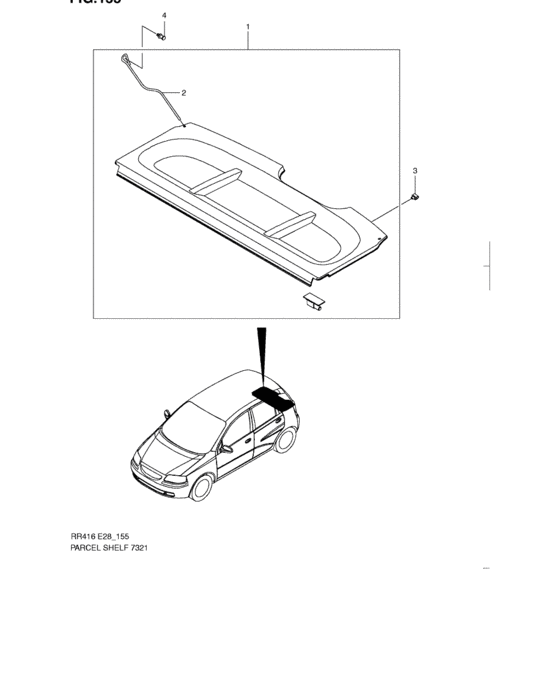

Parcel shelf (PARCEL SHELF) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87410-84Z00-000
Cover assy, ctr
04 MODEL,05 MODEL |
87410-84Z00-000 |
— | ||
|
1
|
1
87410-84Z10-000
Cover assy, ctr
06 MODEL,07 MODEL,08 MODEL |
87410-84Z10-000 |
— | ||
|
1
|
1
87410-84Z20-000
Cover assy, ctr
09 MODEL |
87410-84Z20-000 |
— | ||
|
2
|
2
87420-84Z00-000
Cord
|
87420-84Z00-000 |
— | ||
|
3
|
3
87411-84Z00-000
Cushion, ctr
|
87411-84Z00-000 |
— | ||
|
4
|
4
87416-84Z00-000
Switch, mirror
|
87416-84Z00-000 |
— |
