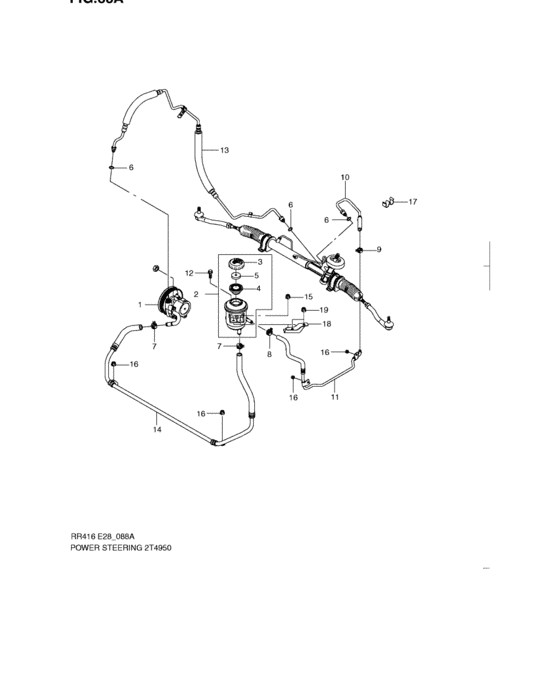

Power steering (09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49110-84Z20-000
Pump assy, power steering
|
49110-84Z20-000 |
— | ||
|
2
|
2
49140-84Z10-000
Tank assy, power steering
W/BRACKET |
49140-84Z10-000 |
— | ||
|
2
|
2
49140-84Z20-000
Tank assy, power steering
N/BRACKET |
49140-84Z20-000 |
— | ||
|
3
|
3
49142-86Z02-000
Cap, tank
|
49142-86Z02-000 |
— | ||
|
4
|
4
49143-85Z00-000
Grommet
|
49143-85Z00-000 |
— | ||
|
5
|
5
49144-85Z00-000
Pad
|
49144-85Z00-000 |
— | ||
|
6
|
6
49224-86Z01-000
O ring
|
49224-86Z01-000 |
— | ||
|
7
|
7
49235-86Z01-000
Clip
|
49235-86Z01-000 |
— | ||
|
8
|
8
49235-86Z30-000
Clip
|
49235-86Z30-000 |
— | ||
|
9
|
9
49235-86Z20-000
Clip
|
49235-86Z20-000 |
— | ||
|
10
|
10
49223-84Z00-000
Pipe, return gear side
|
49223-84Z00-000 |
— | ||
|
11
|
11
49220-84Z10-000
Pipe, low pressure return
|
49220-84Z10-000 |
— | ||
|
12
|
12
39105-86Z10-000
Bolt
|
39105-86Z10-000 |
— | ||
|
13
|
13
49210-84Z10-000
Pipe, high pressure
|
49210-84Z10-000 |
— | ||
|
14
|
14
49222-84Z11-000
Pipe, suction
|
49222-84Z11-000 |
— | ||
|
15
|
15
17928-84Z00-000
Nut
|
17928-84Z00-000 |
— | ||
|
16
|
16
48232-86Z21-000
Nut
|
48232-86Z21-000 |
— | ||
|
17
|
17
49209-84Z00-000
Clip
|
49209-84Z00-000 |
— | ||
|
18
|
18
49150-84Z00-000
Bracket, oil reservoir
|
49150-84Z00-000 |
— | ||
|
19
|
19
17928-84Z00-000
Nut
|
17928-84Z00-000 |
— |
