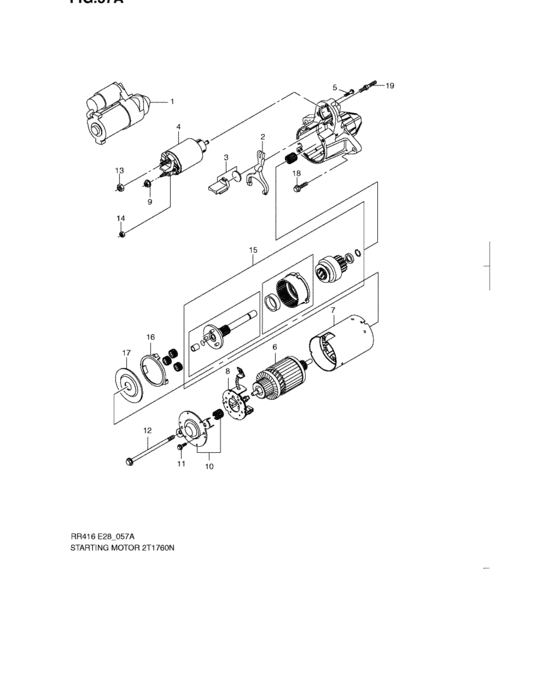

Starting motor (09 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-84Z11-000
Motor assy, starting
|
31100-84Z11-000 |
— | ||
|
2
|
2
31191-84Z00-000
Lever
|
31191-84Z00-000 |
— | ||
|
3
|
3
31192-84Z10-000
Plug
|
31192-84Z10-000 |
— | ||
|
4
|
4
31220-84Z10-000
Switch assy
|
31220-84Z10-000 |
— | ||
|
5
|
5
31136-84Z00-000
Screw
|
31136-84Z00-000 |
— | ||
|
6
|
6
31311-84Z10-000
Armature
|
31311-84Z10-000 |
— | ||
|
7
|
7
31110-84Z10-000
Frame assy
|
31110-84Z10-000 |
— | ||
|
8
|
8
31173-84Z02-000
Holder assy, brush
|
31173-84Z02-000 |
— | ||
|
9
|
9
31221-84Z00-000
Nut
|
31221-84Z00-000 |
— | ||
|
10
|
10
31170-84Z10-000
Frame assy, commutator end
|
31170-84Z10-000 |
— | ||
|
11
|
11
31137-84Z10-000
Screw
|
31137-84Z10-000 |
— | ||
|
12
|
12
31344-84Z10-000
Bolt
|
31344-84Z10-000 |
— | ||
|
13
|
13
16117-86Z00-000
Nut
|
16117-86Z00-000 |
— | ||
|
14
|
14
48232-86Z21-000
Nut
|
48232-86Z21-000 |
— | ||
|
15
|
15
31340-84Z10-000
Shaft assy
|
31340-84Z10-000 |
— | ||
|
16
|
16
31345-84Z10-000
Cushion
|
31345-84Z10-000 |
— | ||
|
17
|
17
31349-84Z00-000
Cover
|
31349-84Z00-000 |
— | ||
|
18
|
18
31116-84Z00-000
Bolt
|
31116-84Z00-000 |
— | ||
|
19
|
19
31114-86Z00-000
Screw
|
31114-86Z00-000 |
— |
