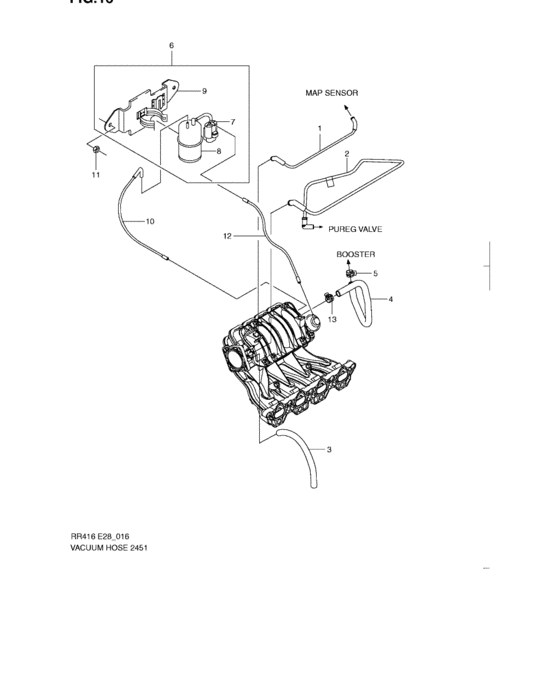

Vacuum hose (04,05,06,07,08 MODEL) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Canada
- transmission
- AT
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18144-84Z00-000
Pipe, vacuum
|
18144-84Z00-000 |
— | ||
|
2
|
2
18566-84Z00-000
Pipe, purge eng side
|
18566-84Z00-000 |
— | ||
|
3
|
3
18142-84Z00-000
Hose, breather
|
18142-84Z00-000 |
— | ||
|
4
|
4
18141-84Z00-000
Hose assy, vacuum
|
18141-84Z00-000 |
— | ||
|
5
|
5
18569-84Z00-000
Clip
|
18569-84Z00-000 |
— | ||
|
6
|
6
18117-84Z00-000
Valve, solenoid
|
18117-84Z00-000 |
— | ||
|
7
|
7
13160-86Z01-000
Valve, solenoid
|
13160-86Z01-000 |
— | ||
|
8
|
8
18560-84Z00-000
Tank assy, vacuum
|
18560-84Z00-000 |
— | ||
|
9
|
9
18571-84Z00-000
Bracket, vac tank
|
18571-84Z00-000 |
— | ||
|
10
|
10
18575-84Z01-000
Pipe, vacuum
|
18575-84Z01-000 |
— | ||
|
11
|
11
48232-86Z21-000
Nut
|
48232-86Z21-000 |
— | ||
|
12
|
12
18574-84Z10-000
Pipe, vacuum
|
18574-84Z10-000 |
— | ||
|
13
|
13
18568-84Z01-000
Clip
|
18568-84Z01-000 |
— |
